Inflator Module Handling and Scrapping

INFLATOR MODULE HANDLING AND SCRAPPING

CAUTION: Refer to SRS Inflator Module Handling and Storage Caution in Service Precautions.

- Air bag modules should not be subjected to temperatures above 65 °C (149 °F).
- An air bag and the SDM should not be used if it has been dropped from a height of 0.9 meters (3 feet) or greater.
- When an SDM is replaced, it must be oriented with the arrow on the SDM pointing toward the front of the vehicle.
- It is very important for the SDM to be installed flat on the mounting surface, parallel to the vehicle's longitudinal axis.
- To avoid setting diagnostic trouble codes (DTCs), do not apply power to the SIR unless all components are connected or a diagnostic chart requests it.
- The Diagnostic System Check - Restraint Systems must be the starting point of any SIR diagnostics. The Diagnostic System Check - Restraint Systems will verify proper air bag indicator operation and will lead you to the correct chart to diagnose any SIR malfunctions. Passing these procedures may result in extended diagnostic time incorrect parts replacement.

Inflator Module Handling and Scrapping




Deploy the air bags before disposing them. If a vehicle is to be scrapped, the air bag may be deployed inside the vehicle.
- Before deploying the air bags, remove all loose objects from the air bag's expansion area.

CAUTION: When deploying an airbag inside the vehicle, make sure the vehicle doors are closed and the side windows are fully open. Wear safety glasses throughout the entire procedure. Make sure the deployment area in the vehicle is clear of people, or loose objects. Failure to follow these guidelines could result in personal injury or vehicle damage.

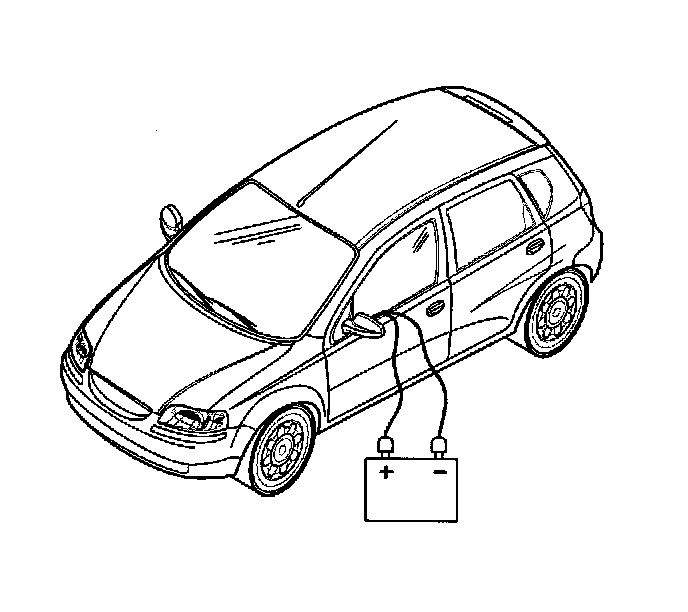

- Deploy the air bags with the vehicle doors closed and the side windows open.
- Deploy the air bags only in an evacuated area. Service personnel who must be present during the deployment should be at least 10 meters (33 feet) in front of the vehicle.
- Do not connect the voltage source until after having completed all other preparations for the deployment of the air bags.
- Allow a deployed air bag module or pretensioner to cool for 30 minutes before handling.
- Wear gloves and eye protection during the disposal procedure.
- If the deployment fails, disconnect the voltage source and wait 5 minutes before approaching the vehicle.
