Sunroof Panel - Binding
83porsche01Subject:
Sunroof Panel
Part Identifier 6040
Applies To 928
(Supersedes Product Circular, Grp. 60, No. 82-01)
Group
60
Key Points
Use new parts to eliminate binding
C
Number
83-01
March 4, 1983

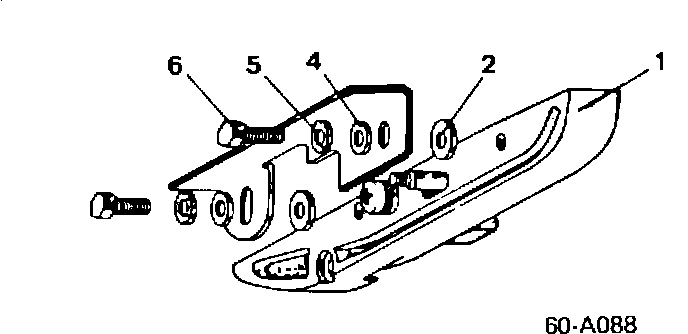

It sunroof panel binds, roof-panel guide (1) may have loosened up and moved out of the guide rail. To correct, replace retaining bolts and associated hardware
Parts required *
Item Quantity Part Part No.
2 4 Washer 900 151 027 02
4 4 Washer N 011 523 7
5 4 Lock
washer 900 114 009 01
6 4 Hex-head N 010 207 6
bolt (M5 x 12 mm)
* New parts were installed in production beginning in June '82 (VIN 92CS822308)
Parts, installing
- remove old guide retaining bolts and discard
- install new guide-retaining bolts with washers and lock washers, as shown
- check operation of sunroof
