875019 Removing And Installing Condenser

Removing the condenser

Installation position:

1. Unscrew the two fastening screws -1- holding the air guide for the condenser.

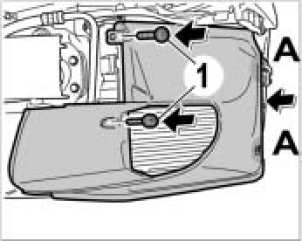

Air guide for condenser:

2. Pull the air guide forward and disengage it at the condenser -A-.

NOTE: When loosening or tightening the M8 refrigerant lines on the condenser, always counter with a 21-mm open-ended wrench.

Refrigerant lines on condenser:

3. Unscrew the two fastening screws -2- for the refrigerant lines.
4. Unscrew fastening screw -3-, lift the condenser and disengage from radiator bracket.

NOTE:
- Before re-installing the component, check the O-rings of the refrigerant lines for damage and replaced them if necessary.
- Wet the O-rings of the refrigerant lines with refrigerant oil.
- Do not open the plugs for the lines and connections until shortly before installation.
- Close off all lines and connections using suitable plugs during removal.

Unclipping condenser:

5. Unclip the condenser from the four brackets -A- and lift it out of the retaining bracket -arrow-.

Installing the condenser

Clipping in condenser:

1. Insert condenser into the retaining bracket and clip it into place -A-.

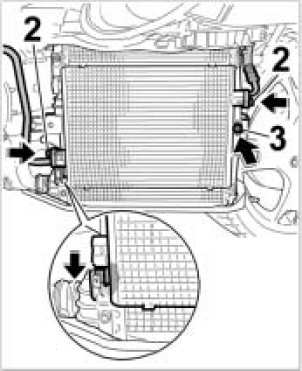

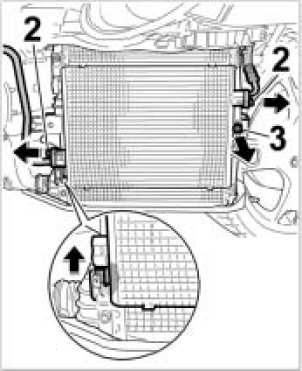

Refrigerant lines on condenser:

2. Engage the condenser on the radiator bracket and secure with the fastening screw -3-. Tightening torque 4 (3) Nm (ftlb).

NOTE:
- When loosening or tightening the M8 refrigerant lines on the condenser, always counter with a 21-mm open-ended wrench.
- Before re-installing the component, check the O-rings of the refrigerant lines for damage and replaced them if necessary.
- Wet the O-rings of the refrigerant lines with refrigerant oil.
- Do not open the plugs for the lines and connections until shortly before installation.
- Close off all lines and connections using suitable plugs during removal.

3. Carefully insert refrigerant lines into the condenser and secure with the fastening screws -2-. Tightening torque 14 (10.5) Nm (ftlb).

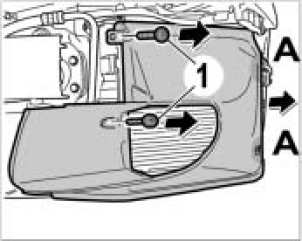

Air guide for condenser:

4. Engage air guide on condenser -A- and screw down using the two fastening screws -1-. Tightening torque 4 (3) Nm (ftlb).
