Rear Shelf: Service and Repair

Removing And Installing Rear Wall Trim Panel

Preliminary work

Remove trim panel for convertible top rest/engine compartment lid. Refer to Removing and installing trim panel for convertible top rest

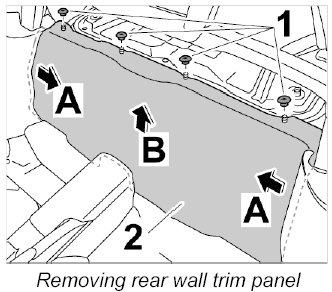

Removing rear wall trim panel

1. Move front seat all the way forward.

2. Unscrew fastening nuts -1-.







3. Loosen rear wall trim panel -2- at the sides from the side trim panel -Arrow A- and lift up and out -Arrow B-.

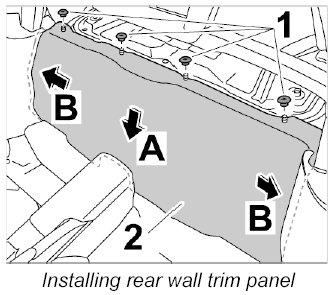

Installing rear wall trim panel

1. Position rear wall trim panel -2- -Arrow A- and insert sides between the body and side trim panel -Arrow B-.







2. Screw in -1- fastening nuts.

3. Move front seat back to the initial position.

Subsequent work

Install trim panel for convertible top rest/engine compartment lid. Refer to Removing and installing trim panel for convertible top rest
