License Plate Frame: Service and Repair

Removing And Installing Number Plate Cover

Removing front number plate cover

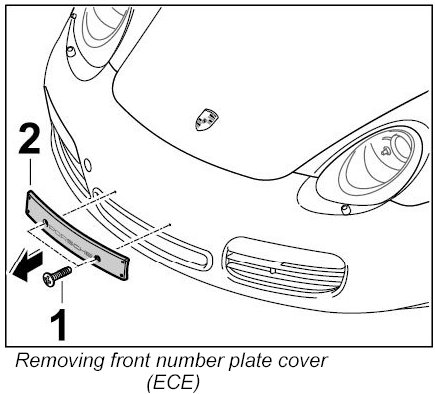

Removing front number plate cover (ECE)

1. Unscrew fastening screws -1- and take off front number plate cover -2-.

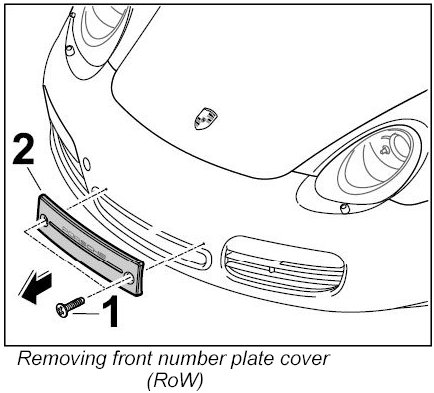

Removing front number plate cover (RoW)

1. Unscrew fastening screws -1- and take off front number plate cover -2-.

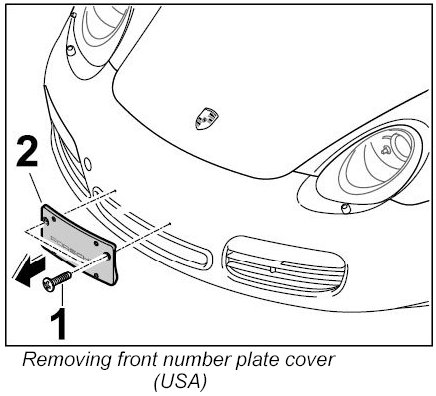

Removing front number plate cover (USA)

1. Unscrew fastening screws -1- and take off front number plate cover -2-.







Installing front number plate cover

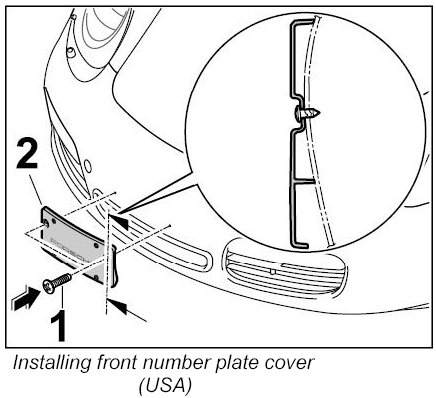

Installing front number plate cover (USA)

1. Position front number plate cover -2- on the front apron and align it.







2. Screw in self-tapping fastening screws -1-.

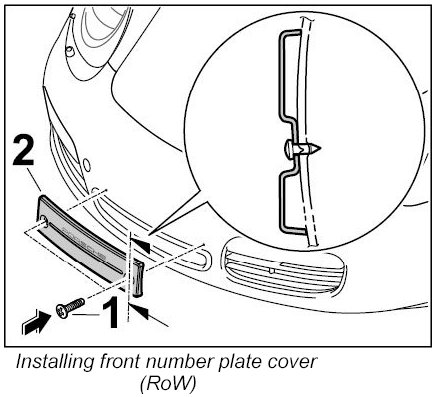

Installing front number plate cover (RoW)

1. Position front number plate cover -2- on the front apron and align it.







2. Screw in self-tapping fastening screws -1-.

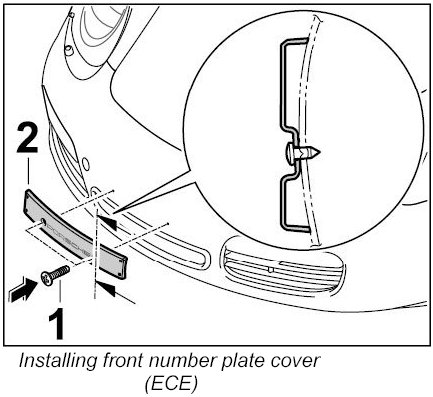

Installing front number plate cover (ECE)

1. Position front number plate cover -2- on the front apron and align it.







2. Screw in self-tapping fastening screws -1-.
