Procedures

682019 Removing And Installing Front Ashtray

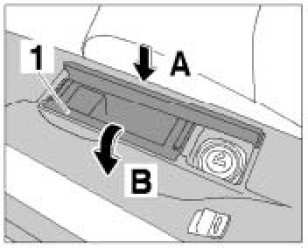

Removing front ashtray
1. Open ashtray -1- -Arrow A- and pull it upwards -Arrow B-.

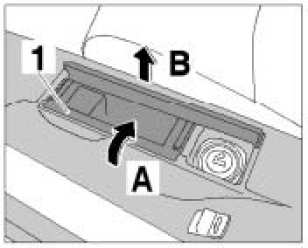

Installing front ashtray
1. Insert opened ashtray -1- -Arrow A- and close lid -Arrow B-.
