Cabin Air Filter / Purifier: Service and Repair

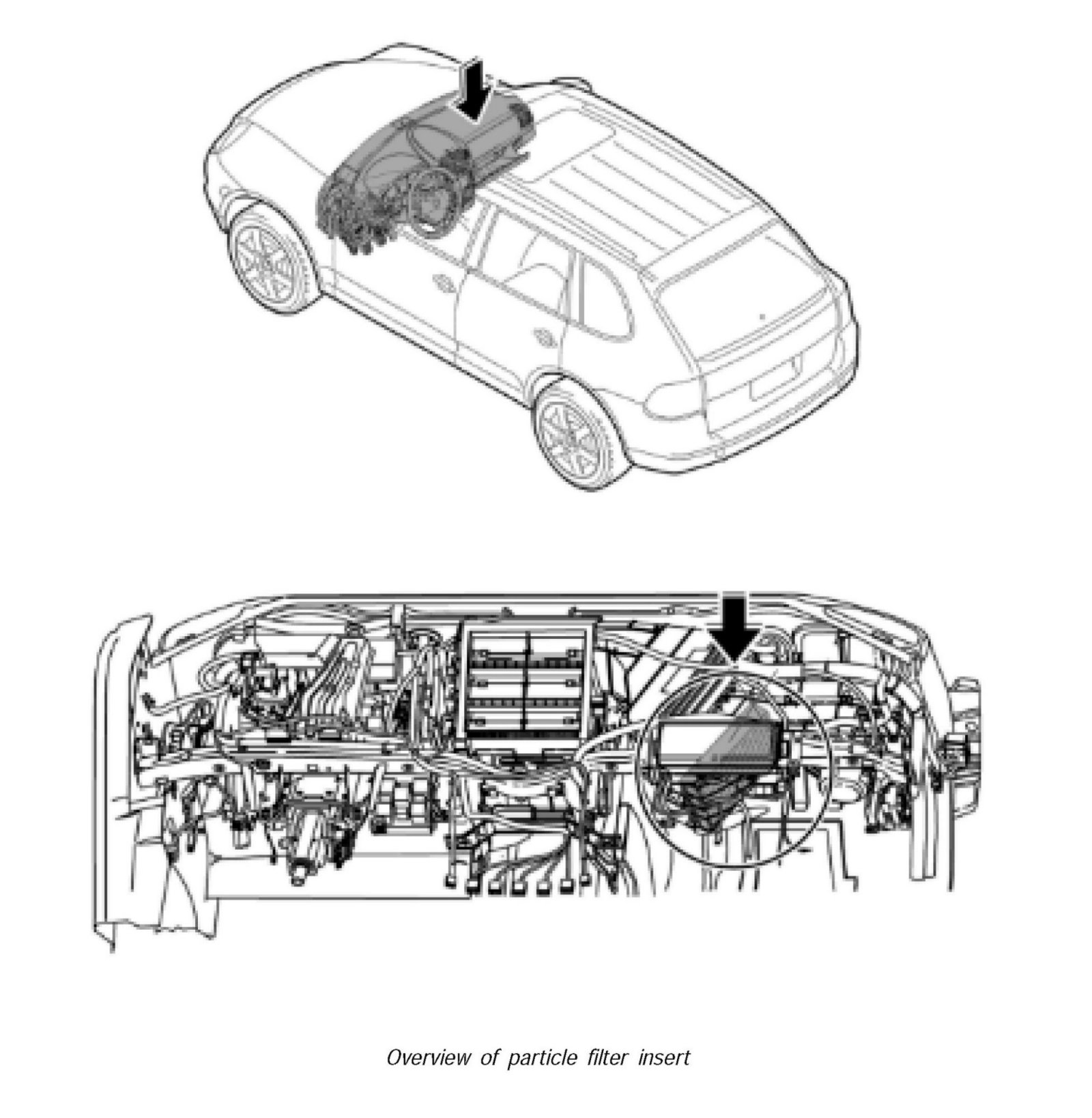

Particle Filter: Replacing Filter Element

Preliminary work

Remove cover under dashboard right.

Removing particle filter












1. Unscrew the two fastening screws and remove cover.

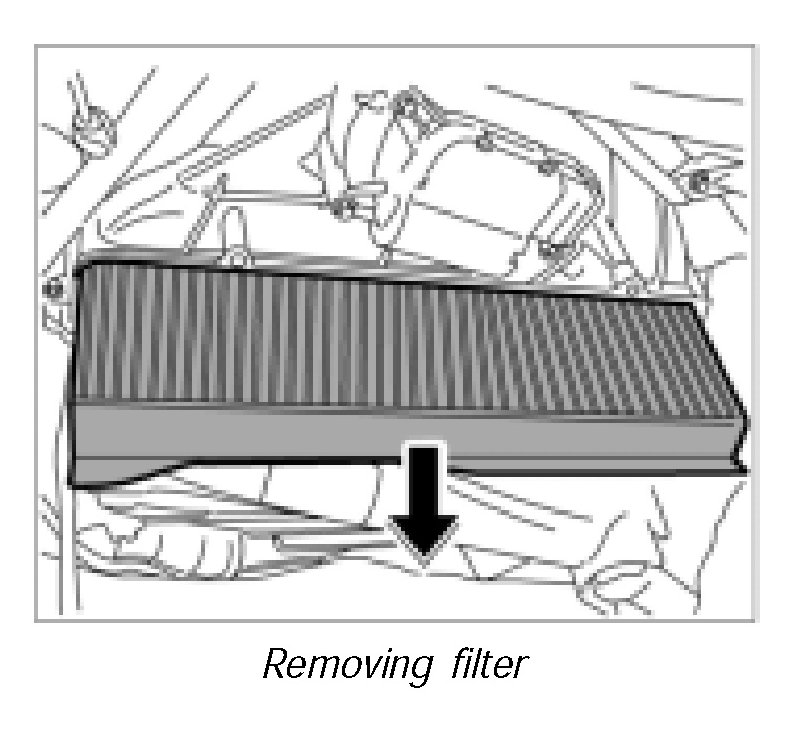

2. Pull out filter downwards.

Installing particle filter

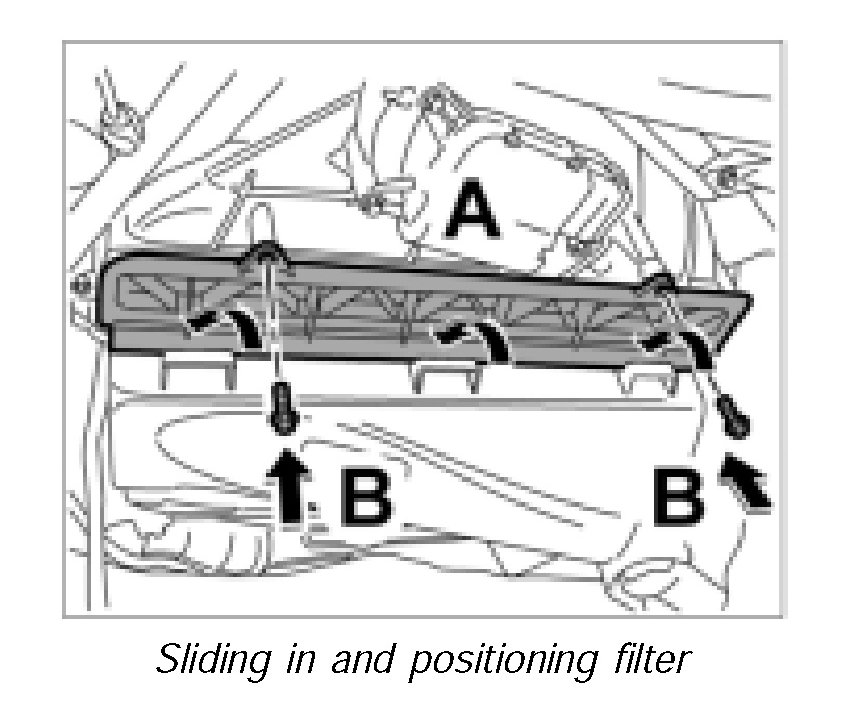

1. Position filter from underneath and carefully push it into the air-conditioning unit housing.
2. Engage cover -A- and screw in the fastening screws -arrows B-.

Subsequent work

Install cover under dashboard right.
