Check Brake Fluid Level

Check brake fluid level

Note:
^ Observe brake fluid quality. Use only new DOT brake fluid.
^ This brake fluid is available under the following part numbers: Container quantity: 1 litre = 000.043.203.66. 30 litres = 000.043.203.67.

The brake fluid level in the reservoir must be between the MIN and MAX markings.

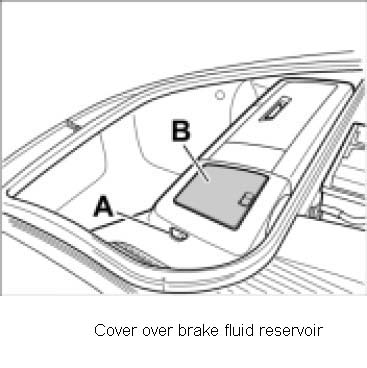

- Disengage and remove cover over brake fluid reservoir -B-. Check brake fluid level.





- A- -Viewing window for brake fluid level (MIN marking only)
- B- -Cover
