Tightening Torques For Mechanical Brake

Tightening torques for mechanical brake
Technical values

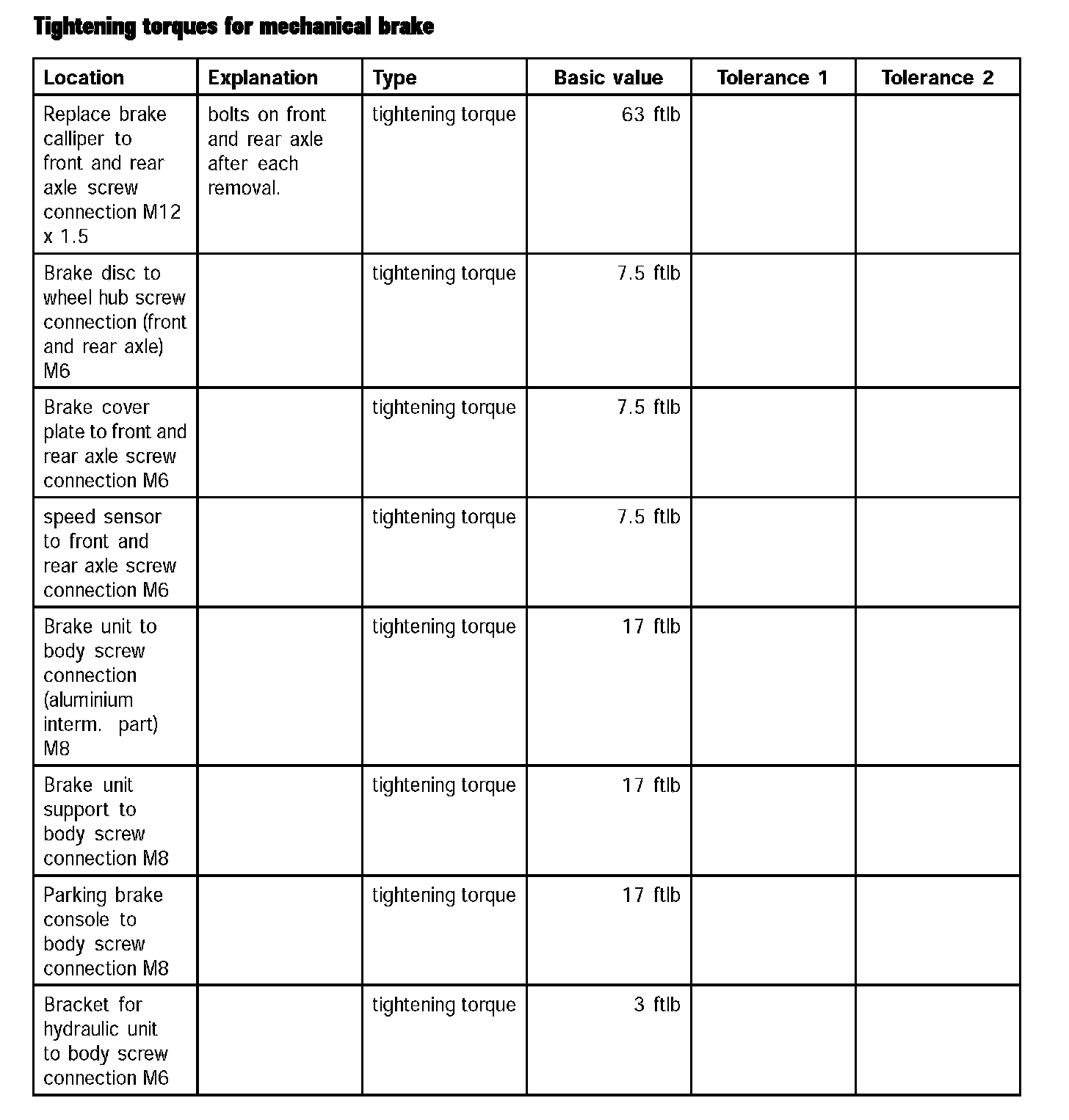

Tightening torques for mechanical brake (Part 1):

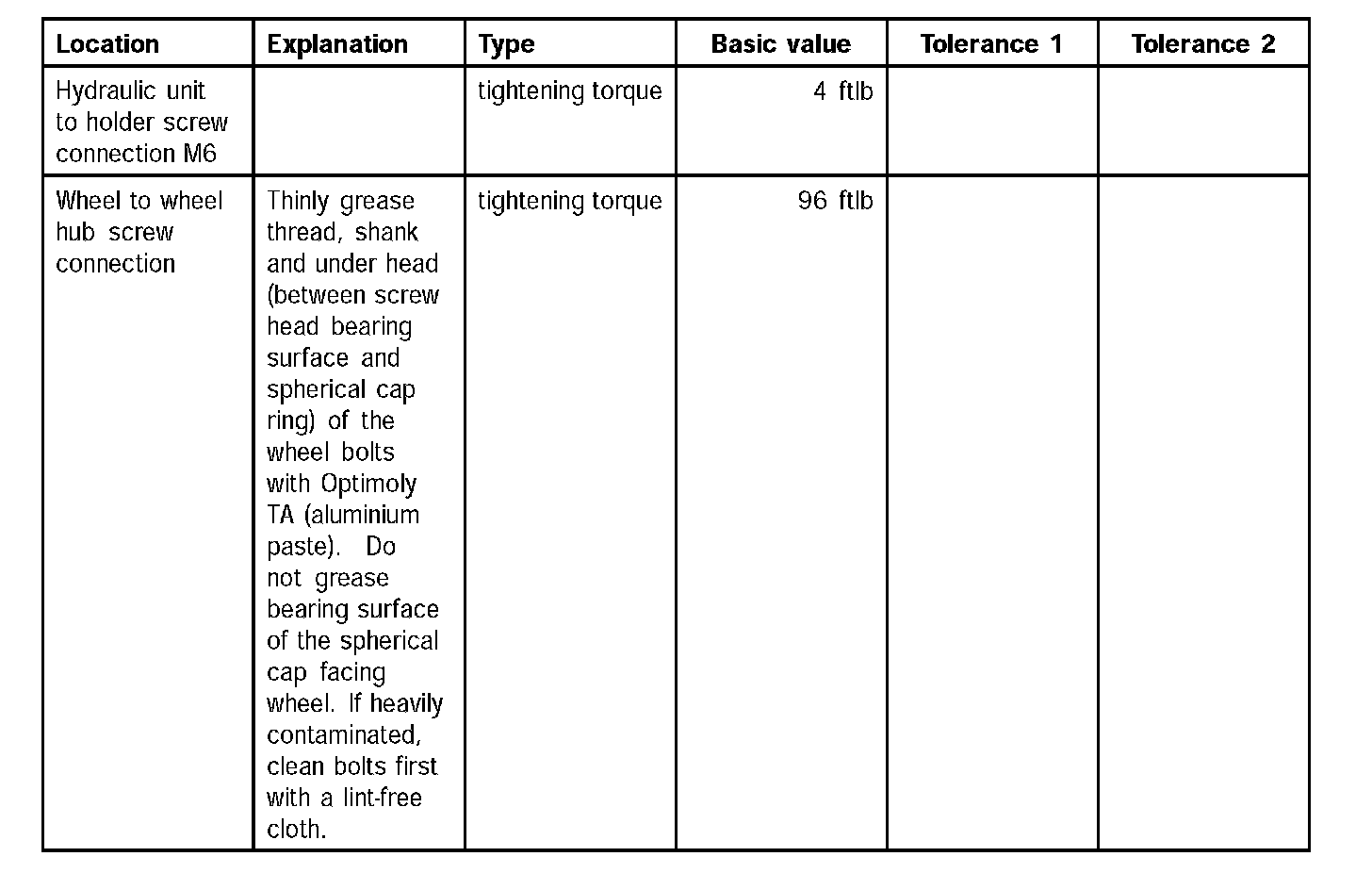

Tightening torques for mechanical brake (Part 2):

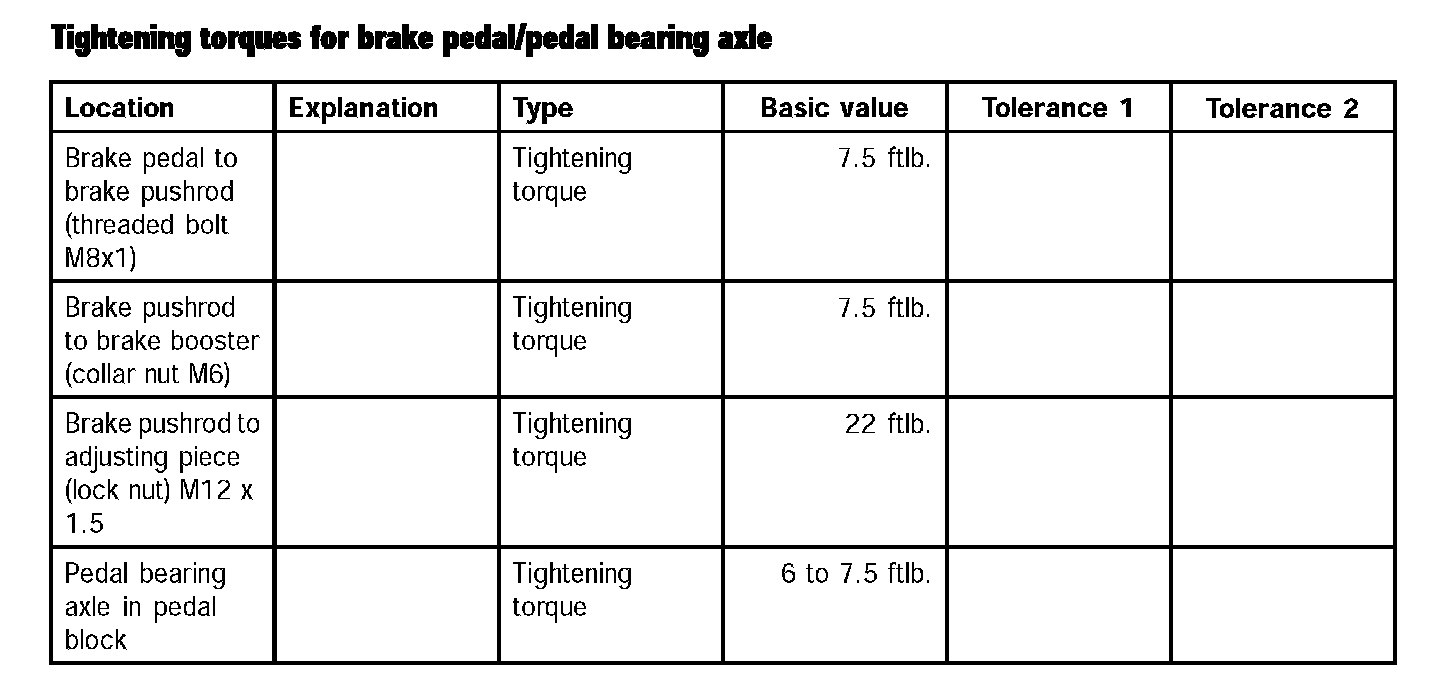

Tightening torques for brake pedal/pedal bearing axle

Tightening torques for brake pedal/pedal bearing axle (Part 1):

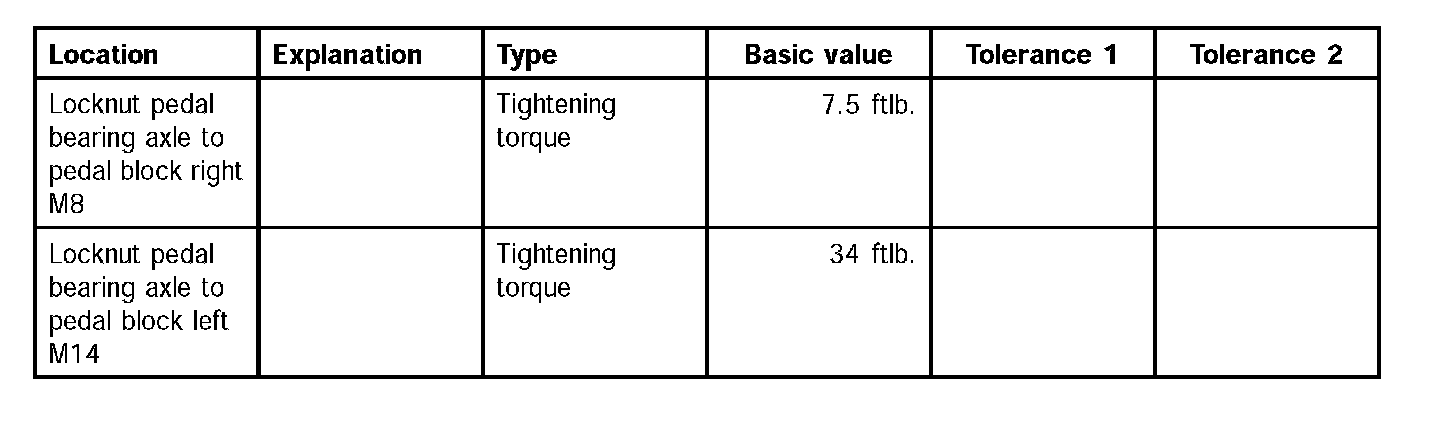

Tightening torques for brake pedal/pedal bearing axle (Part 2):
