Audio System - Poor AM Band Reception: Overview

Cayman (987)
6/05

January 3, 2006

Mast Antenna Installation Instructions (I No. 461)

Vehicle Type:
Cayman S

Model Year:
As of 2006

Situation:

Installation Instructions

Information:

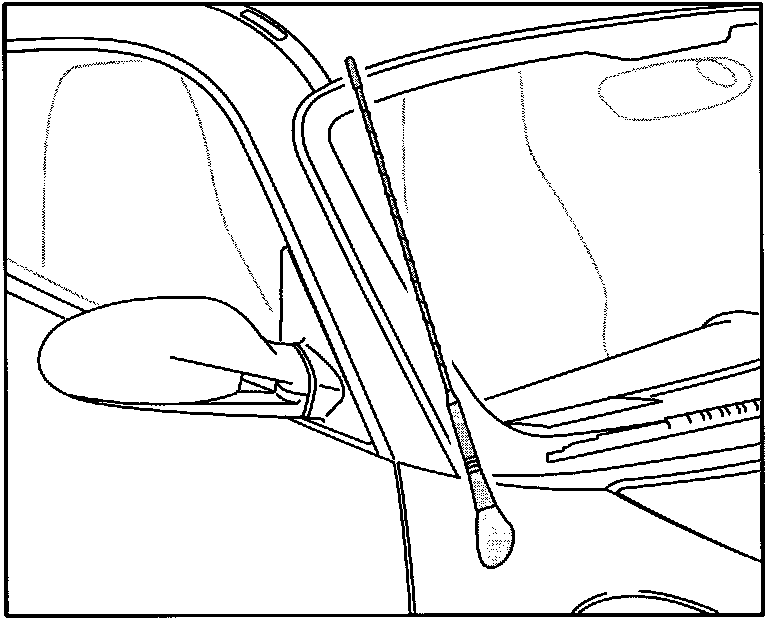

For improved AM reception, a mast antenna can be retrofitted on the right fender of the above-mentioned vehicle. On vehicles with antenna diversity, the right antenna amplifier is omitted.





The electric wire harness including antenna diversity, is already factory installed on vehicles with PCM or CDR24. The wires F2 and F5 (see Parts List) are not required for the electric wire harness with antenna diversity. The template shown with dimensions for the cut-out of the antenna base is part of the TI. This mast antenna can also be ordered ex-works using I No. 461.





Parts Information

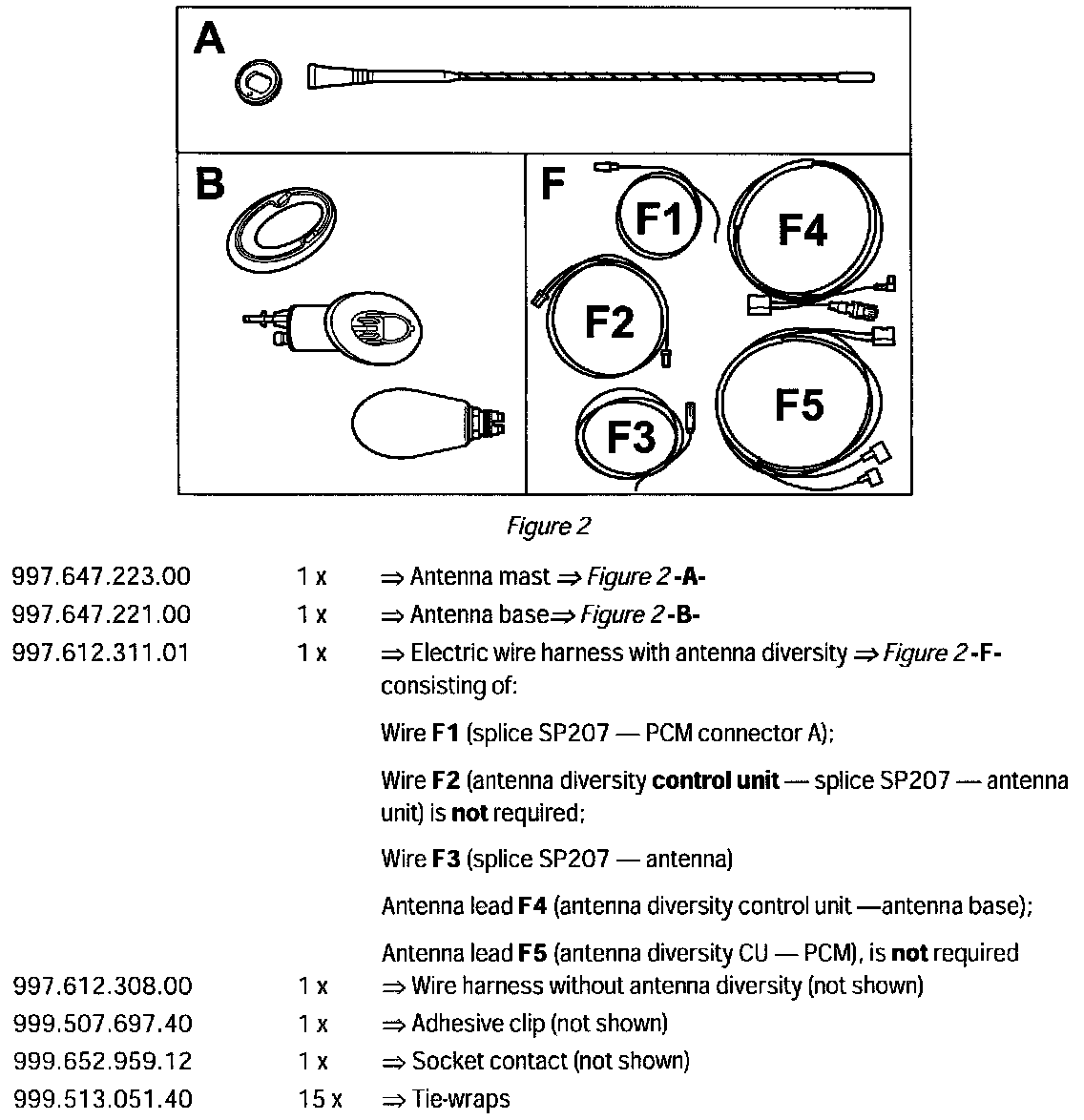

Parts List

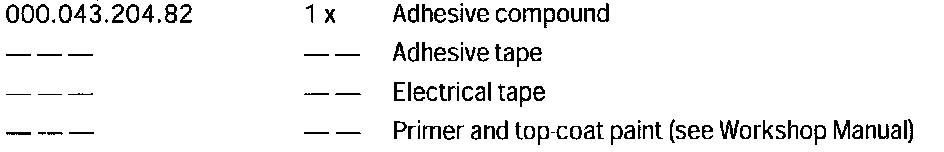

Materials

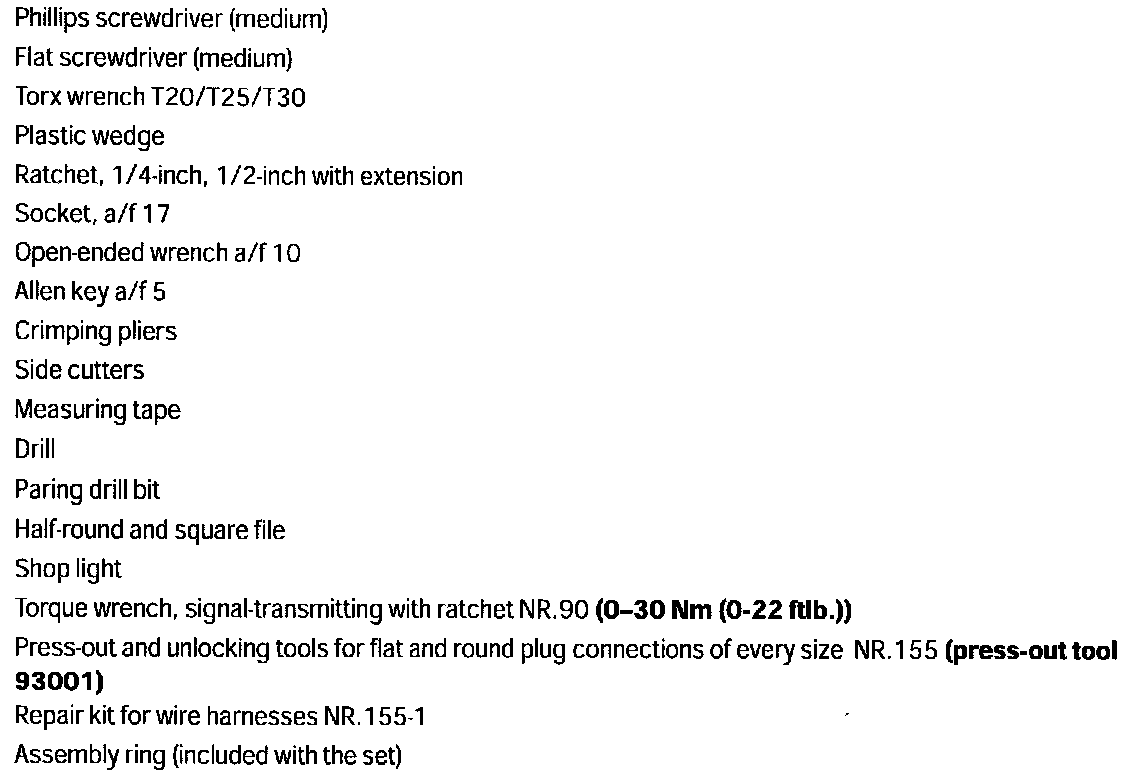

Tools

WARRANTY:
Risk of short circuit and fire due to work on vehicle electrical system.

^ When working on the electrical system, the battery must always be disconnected and covered.

> Always route the electrical leads without tension and so that no chafing occurs. Secure to existing harnesses/components with tie-wraps/electrical tape.

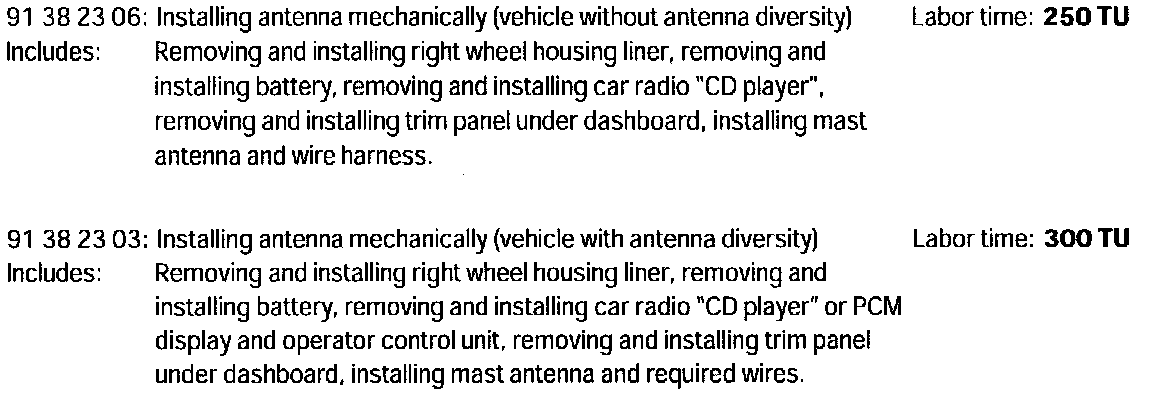

Working Time

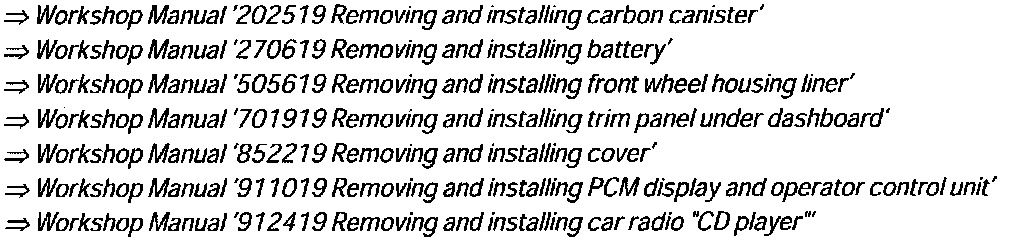

References





Disclaimer
