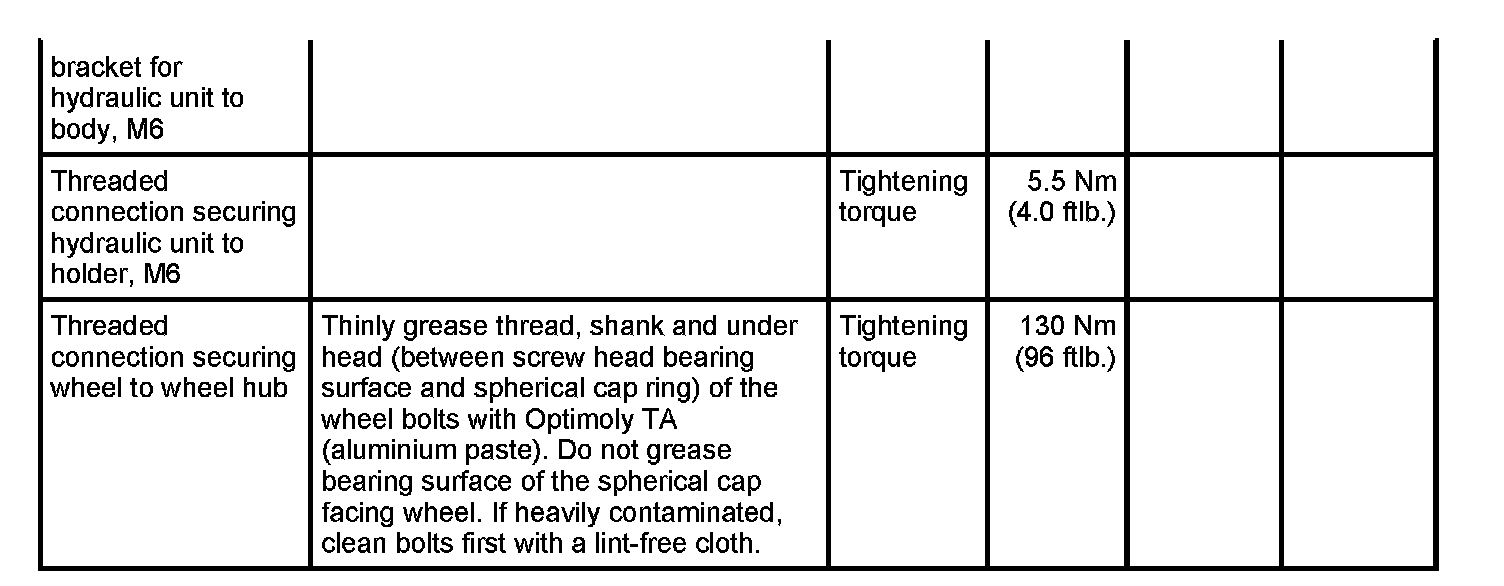

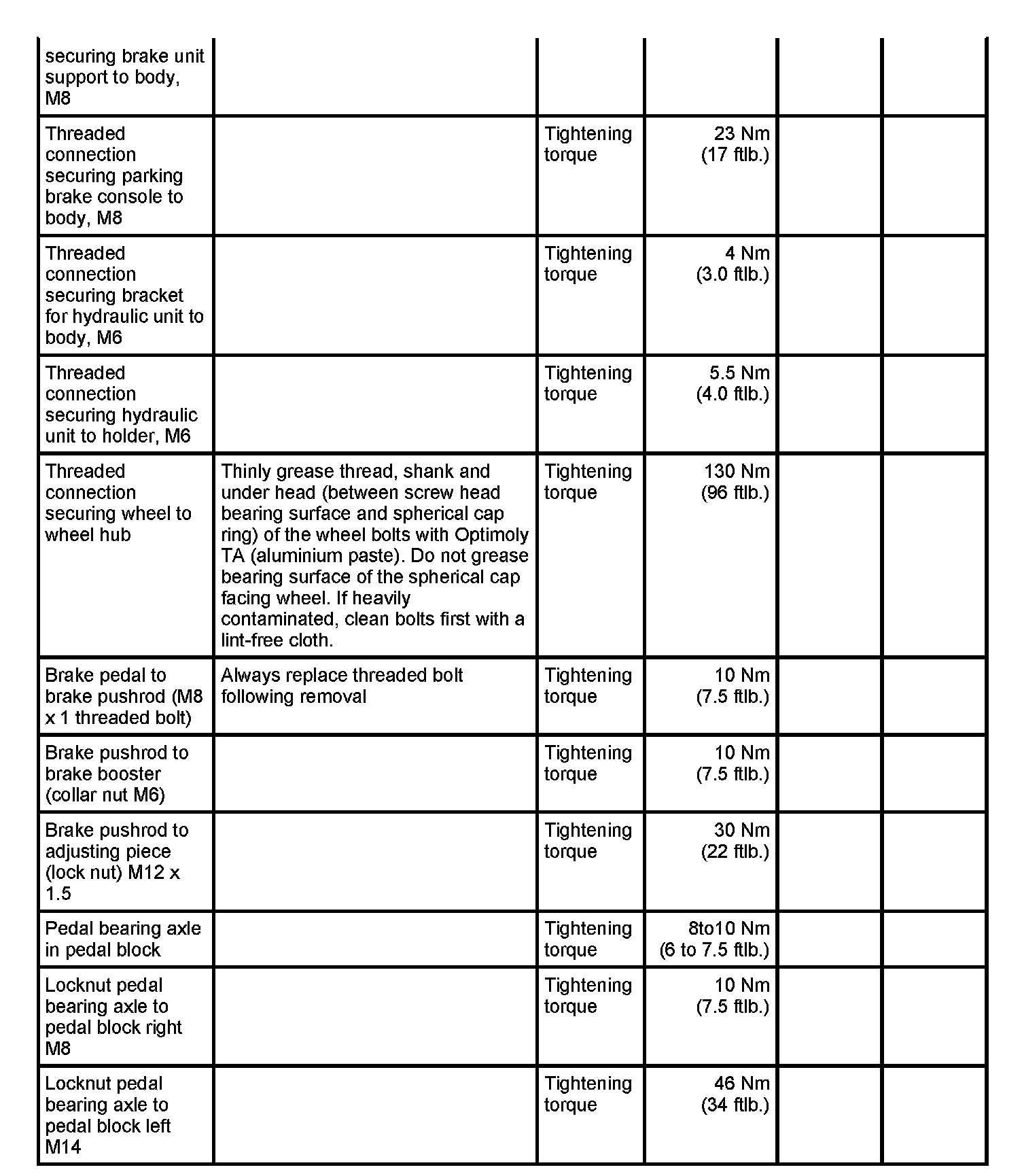

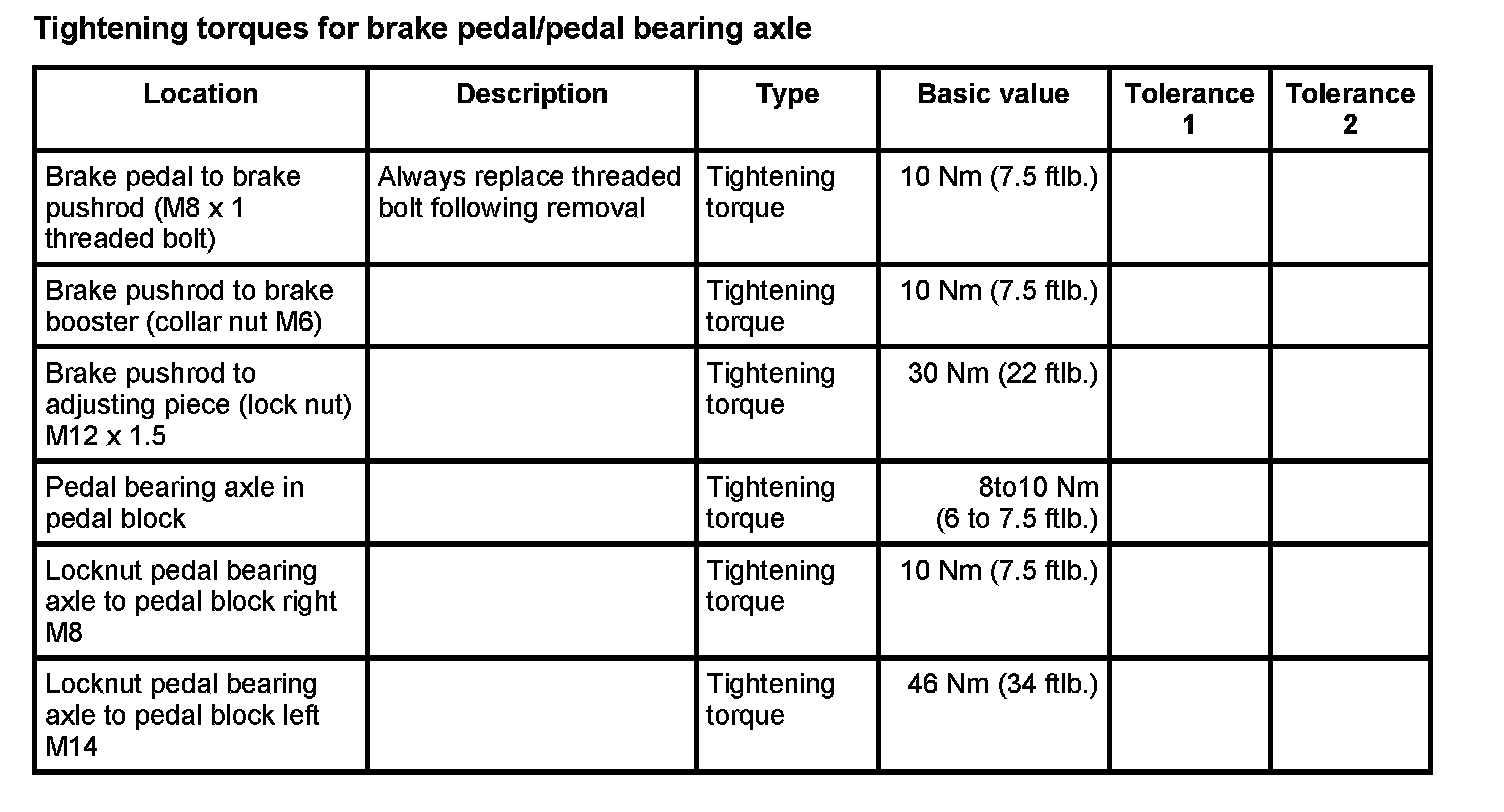

Torque Values

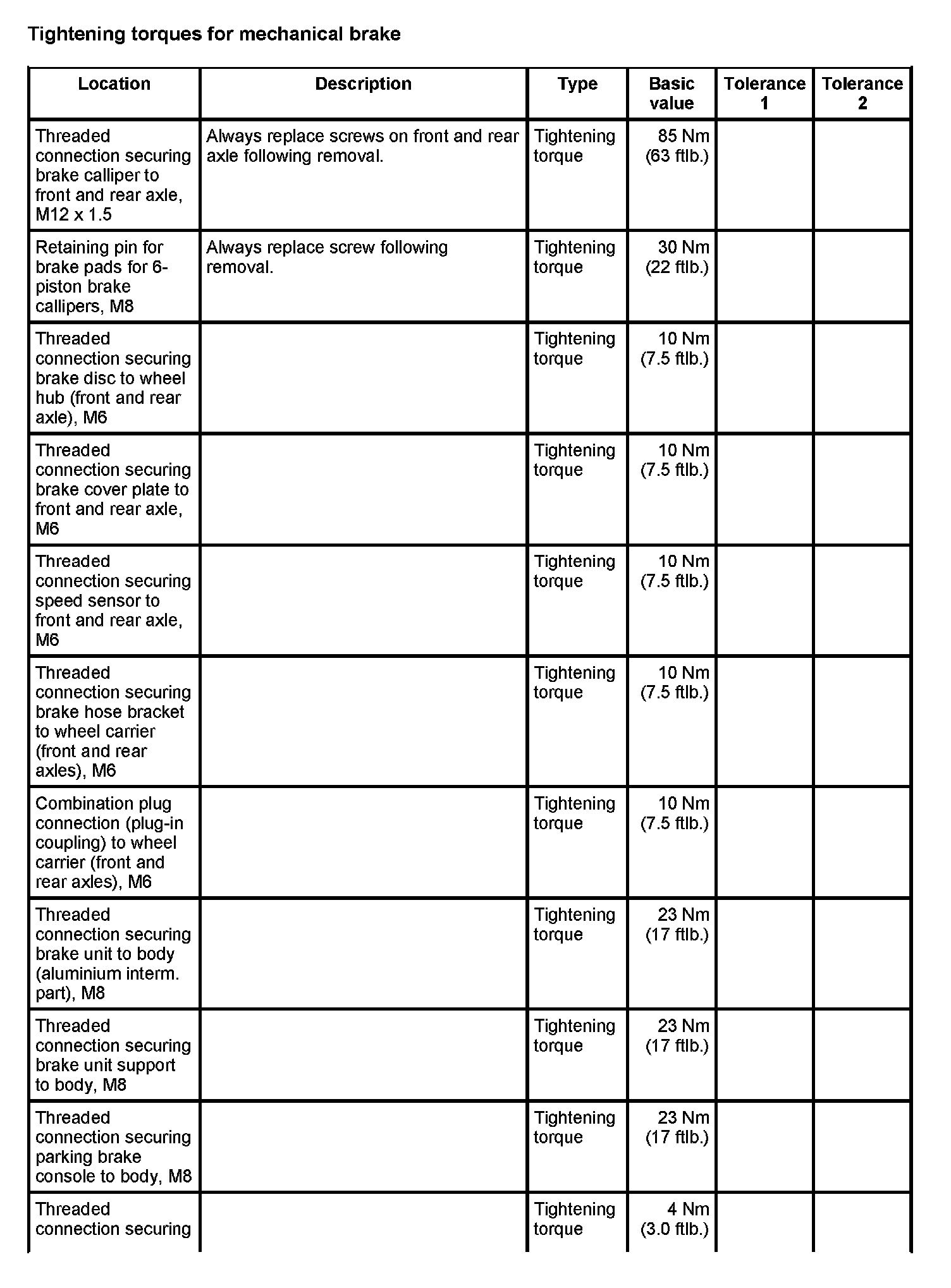

Tightening torques for mechanical brake

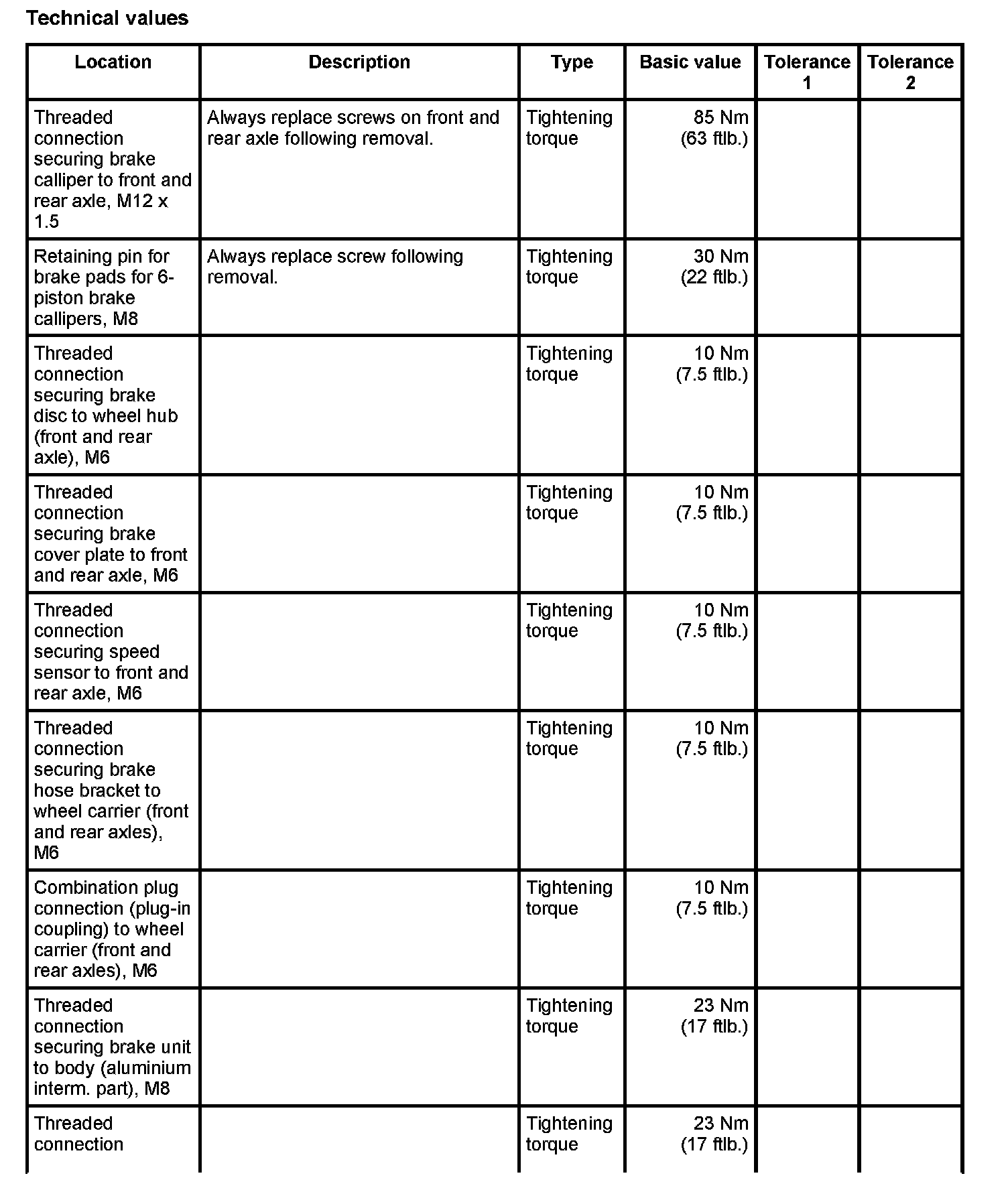

Technical values











Minimum Brake Disc Thickness After Machining
Front 22.6 mm
Rear 18.6 mm

Brake Disc Wear Limit
Front 22.0 mm
Rear 18.0 mm

Front and Rear Brake Discs
Lateral Runout (Max) 0.06 mm
Thickness Tolerance (Max) 0.02 mm.
New brake disc (Max) 0.01 mm
