Flywheel: Service and Repair

WM 136019 Removing and installing flywheel (dual-mass flywheel) on DFI engines

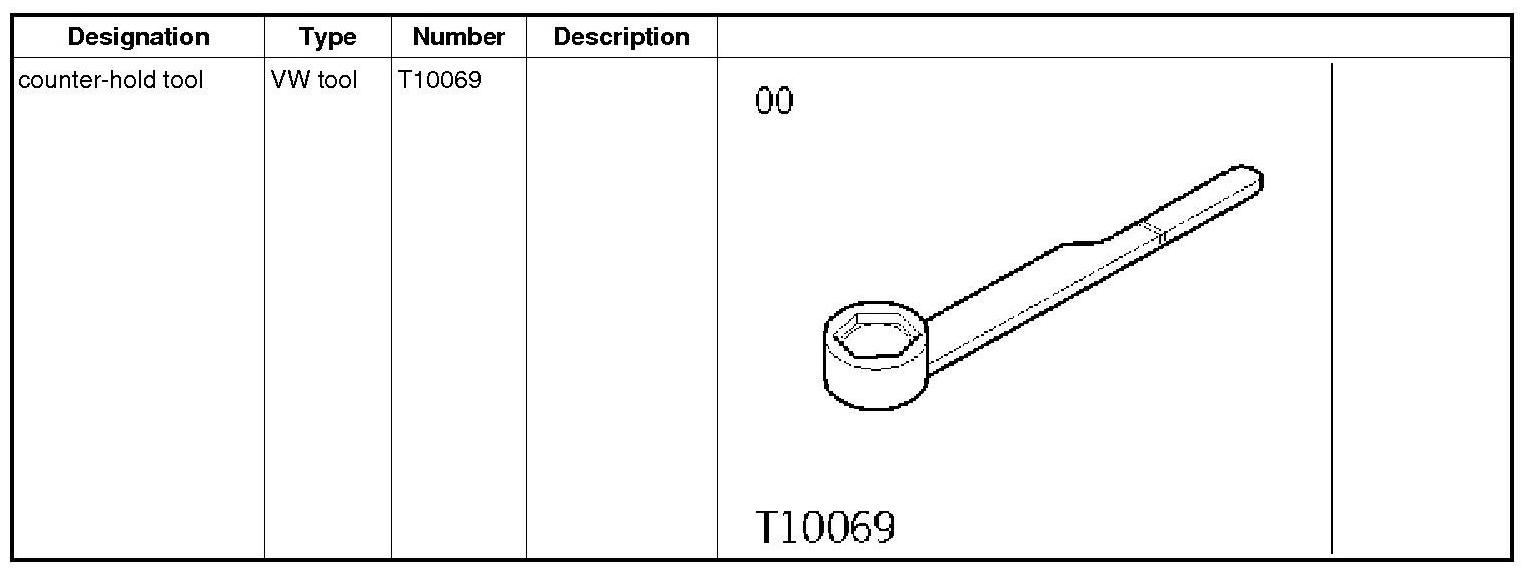

Tools

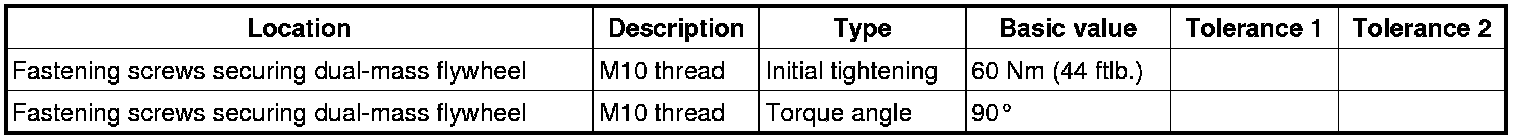

Technical values






Preliminary work

1. Remove transmission. => 343519 Removing and installing transmission - section on "Removing"
2. Remove clutch pressure plate and clutch. => 305019 Removing and installing clutch - section on "Removing"

Removing flywheel (dual-mass flywheel)

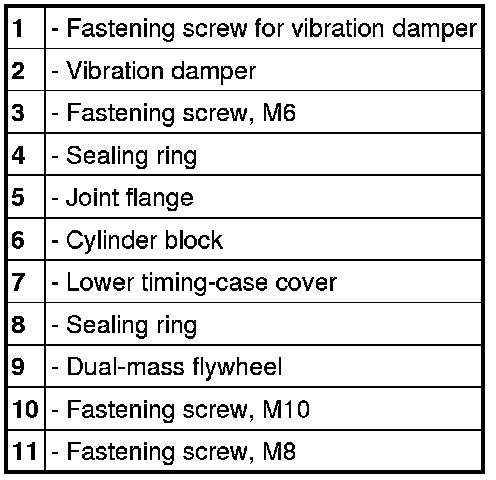

Cylinder block and lower timing-case cover





1. Block the crankshaft. To do this, get another person to help you hold the pulley securely at the front using counter-hold tool T10069 , => Blocking crankshaft.

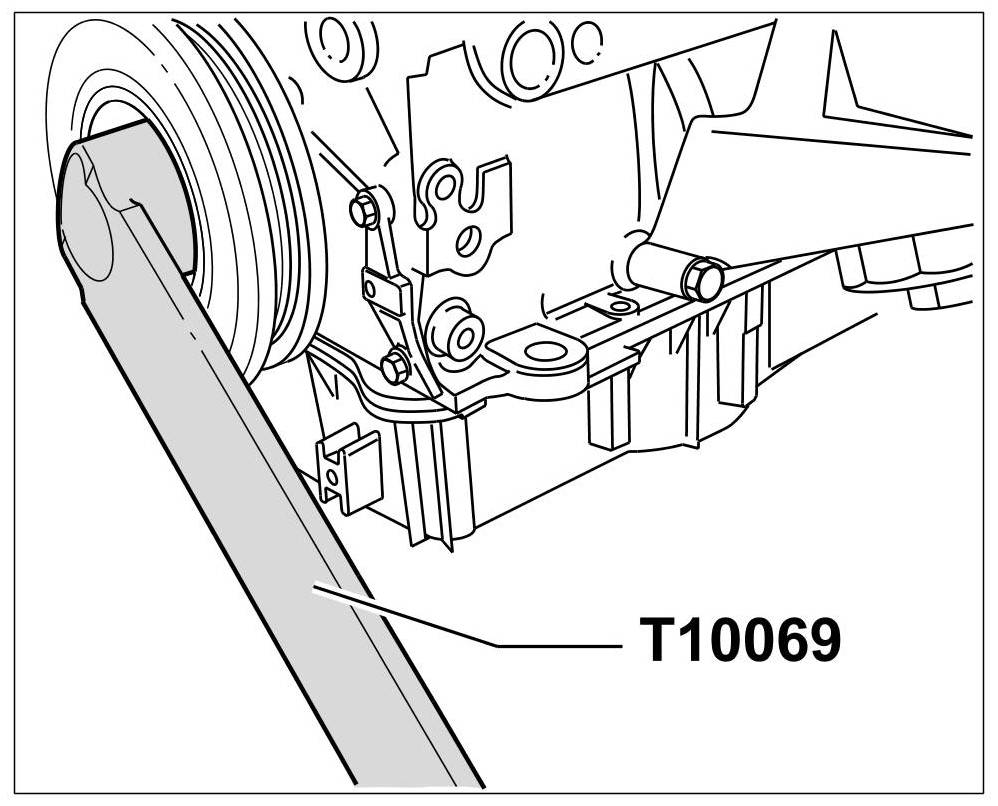

Blocking crankshaft

CAUTION

Pointed or sharp objects

- Risk of cracks, pricks or cuts

-> Wear personal protective gear.

CAUTION

Pointed or sharp objects

- Risk of cracks, pricks or cuts

-> Wear personal protective gear.

Information

- Mark the installation positions of the components for the crankshaft with a felt-tipped pen.

- Fastening screws for dual-mass flywheel must be replaced.

2. Loosen fastening screws and remove dual-mass flywheel.

Installing flywheel (dual-mass flywheel)





Cylinder block and lower timing-case cover





Information

- Fastening screws for dual-mass flywheel must be replaced.

- The bores in the dual-mass flywheel for the crankshaft fit in only one position

1. Place dual-mass flywheel in installation position and fit new fastening screws.
2. Block the crankshaft. To do this, get another person to help you hold the pulley securely at the front using counter-hold tool T10069 , => Blocking crankshaft.





Blocking crankshaft

3. Tighten fastening screws for dual-mass flywheel crosswise. => Initial tightening: 60 Nm (44 ftlb.) => Torque angle: 90°

Subsequent work

1. Install transmission. => 343519 Removing and installing transmission - section on "Installing"
2. Install clutch pressure plate and clutch. => 305019 Removing and installing clutch - section on "Installing"
