Fluid - Differential: Service and Repair

WM 399055 Changing oil for final drive (with transmission oil)

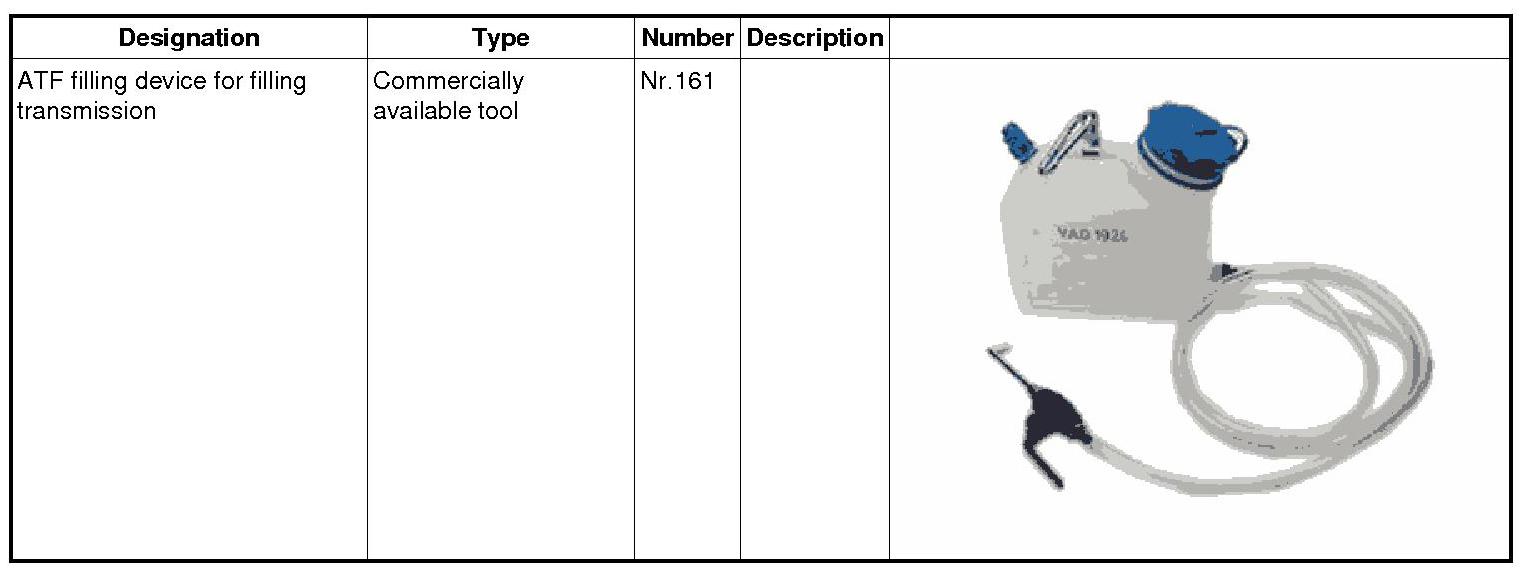

Tools

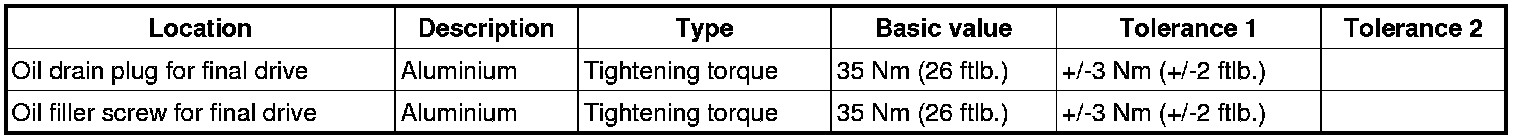

Technical values






Information

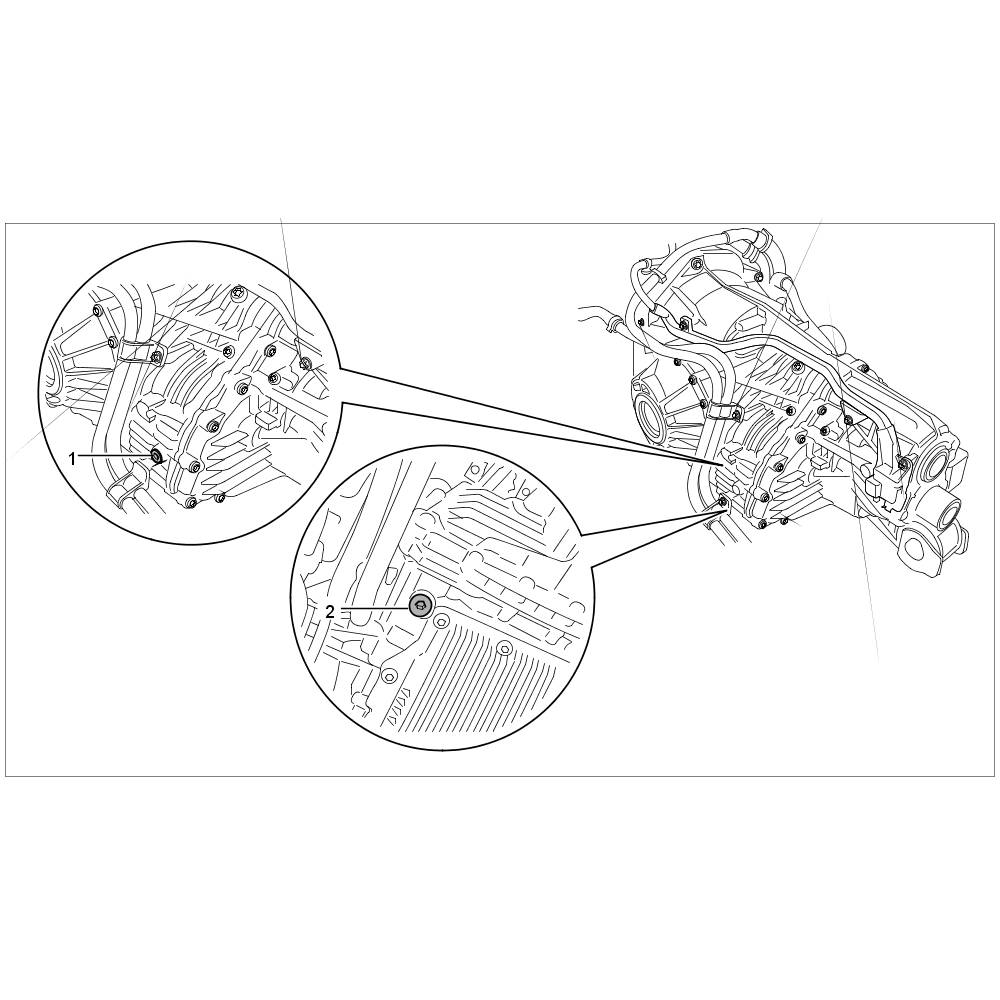

Overview of oil for final drive






Preliminary work

1. Raise the vehicle at the prescribed jacking points.
=> 4X00IN01 Lifting the vehicle
2. Remove underbody panelling.
=> 519419 Removing and installing rear trim - Removing
3. Place oil collection pan under the transmission.

Changing oil for final drive

Draining oil for final drive

1. Unscrew oil filler plug.

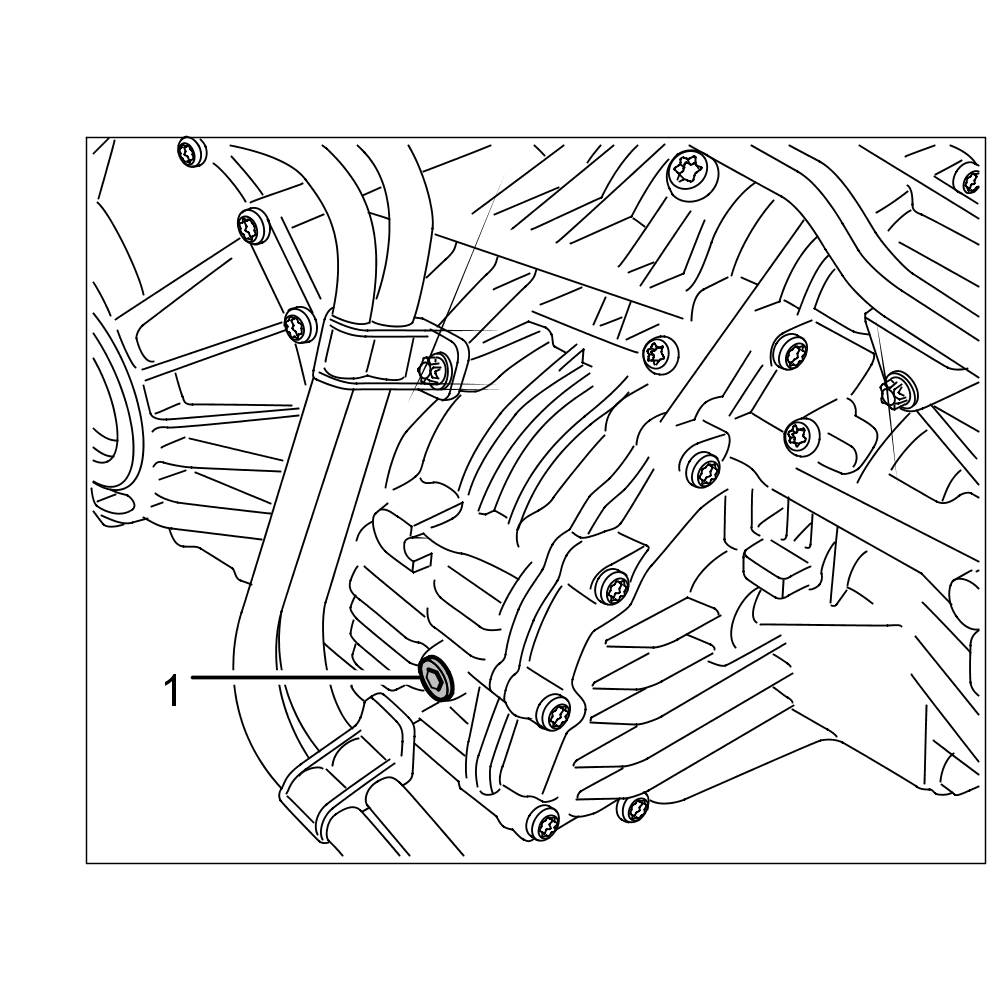

Oil filler screw for final drive

Unscrew oil filler screw for final drive -1-.
2. Drain oil for final drive.

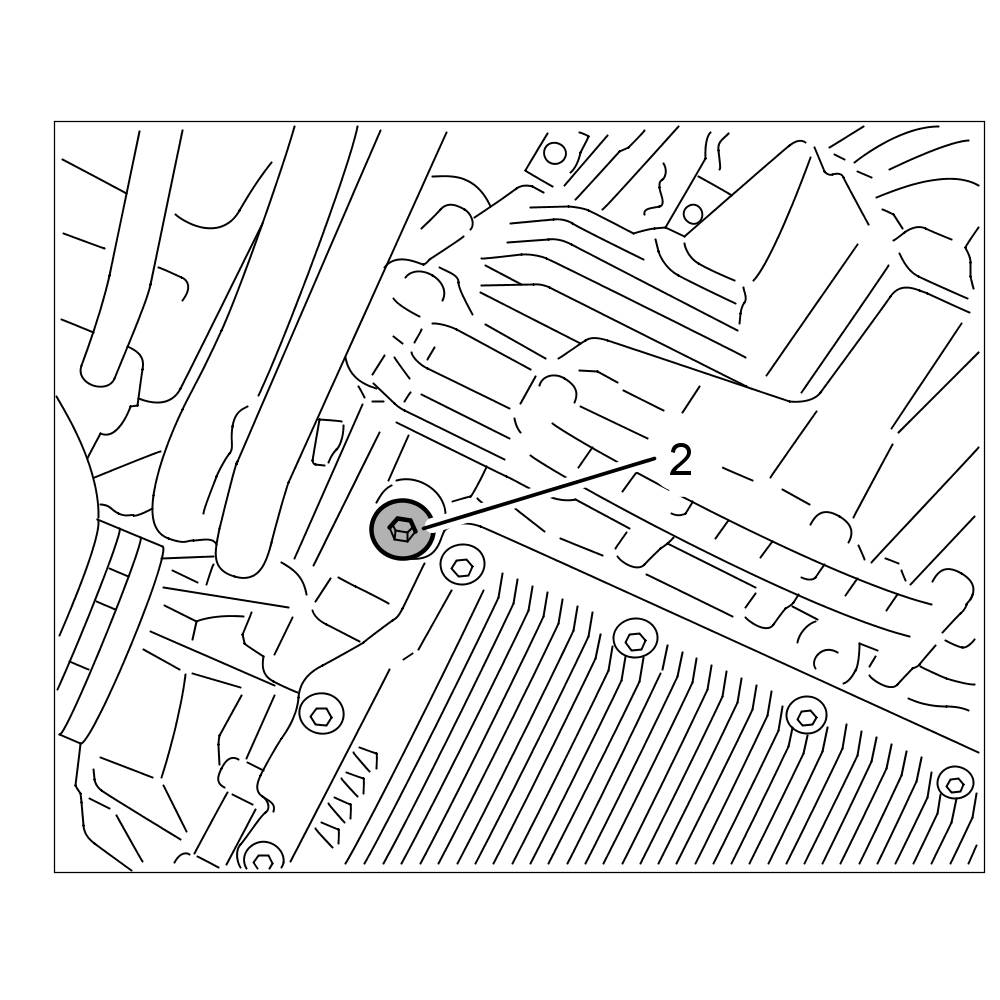

Oil drain plug on final drive

Unscrew oil drain plug -2- and drain oil for final drive.

WARNING

Hot fluid

- Danger of scalding

-> Let the fluid cool down.
-> Wear personal protective gear.

Topping up oil for final drive

NOTICE

Too much refrigerant oil in new air conditioning compressor.

- Risk of damage to air conditioning components.

-> Do not start engine.
-> Do not tow the vehicle.

1. Screw in and tighten oil drain plug on final drive.





Oil drain plug on final drive

Screw in and tighten new oil drain plug for final drive -2-.
=> Tightening torque: 35 Nm (26 ftlb.)+/-3 Nm (+/-2 ftlb.)
2. Top up oil for final drive.
Use the ATF filling device for filling transmission Nr.161 to top up with oil for final drive until oil emerges at the oil filler opening.
3. Screw in and tighten new oil filler screw for final drive -1-.





Oil filler screw for final drive

=> Tightening torque: 35 Nm (26 ftlb.)+/-3 Nm (+/-2 ftlb.)

Subsequent work

1. Fit underbody panels. => 519419 Removing and installing rear trim - installing
2. Lower the vehicle.
