Fuel Pump - Alternative Spare Part
84saab01SUBJECT:
M75-82-1/2 CIS FUEL PUMP ALTERNATIVE SPARE PART
ISSUE: 03/84-673
FILE IN S.I. MANUAL:
VOLUME: I
SECTION: 2
PAGE: 160
In case of short supply of the original M75-82-1/2 fuel pump, P/N 83-34-997, the newer design, P/N 93-61-015 (identified by its external check valve) may be used as an alternative. Note the following parts and precautions for the different fuel tank designs involved.
M80-82-1/2 Models:

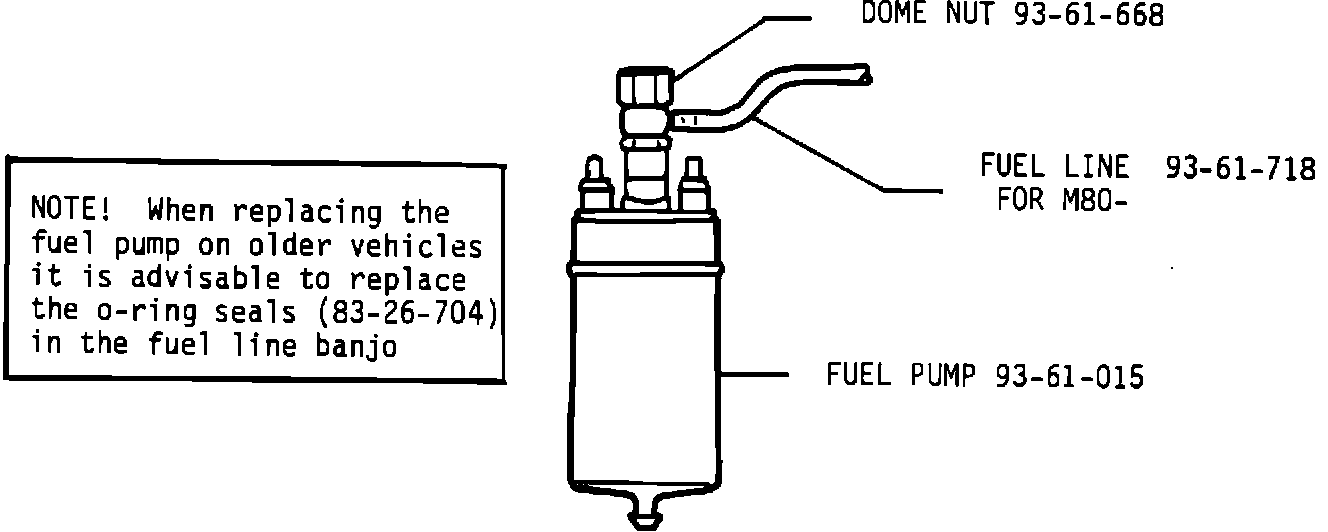

For installing pump P/N 93-61-015 on M80-82-1/2 models with steel fuel tanks, order dome nut P/N 93-61-668 and fuel line P/N 93-61-718. The banjo connection on the newer pump is lower relative to the top edge of the fuel pump collar thus requiring the new fuel line with a preformed S-bend near the banjo. Do not install the newer pump with the original straight fuel line.
M75-79 Models:
For installing pump P/N 93-61-015 on M75-79 models with steel fuel tanks, order dome nut P/N 93-61-668. Take care when adjusting fuel pump assembly height to ensure that the pump sits as high as possible without touching the metal mounting socket. This is to avoid stressing the end of the fuel line (the original line has a preformed bend). Attach the suction strainer so the end of the rubber connection is about 8 mm away from the bottom of the pump and the overall height from the bottom of the strainer to the top of the rim of the mounting socket is about 225 mm.
