Home >> Saab >> 1987 >> 900 L4-1985cc 2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Mirrors

Mirrors

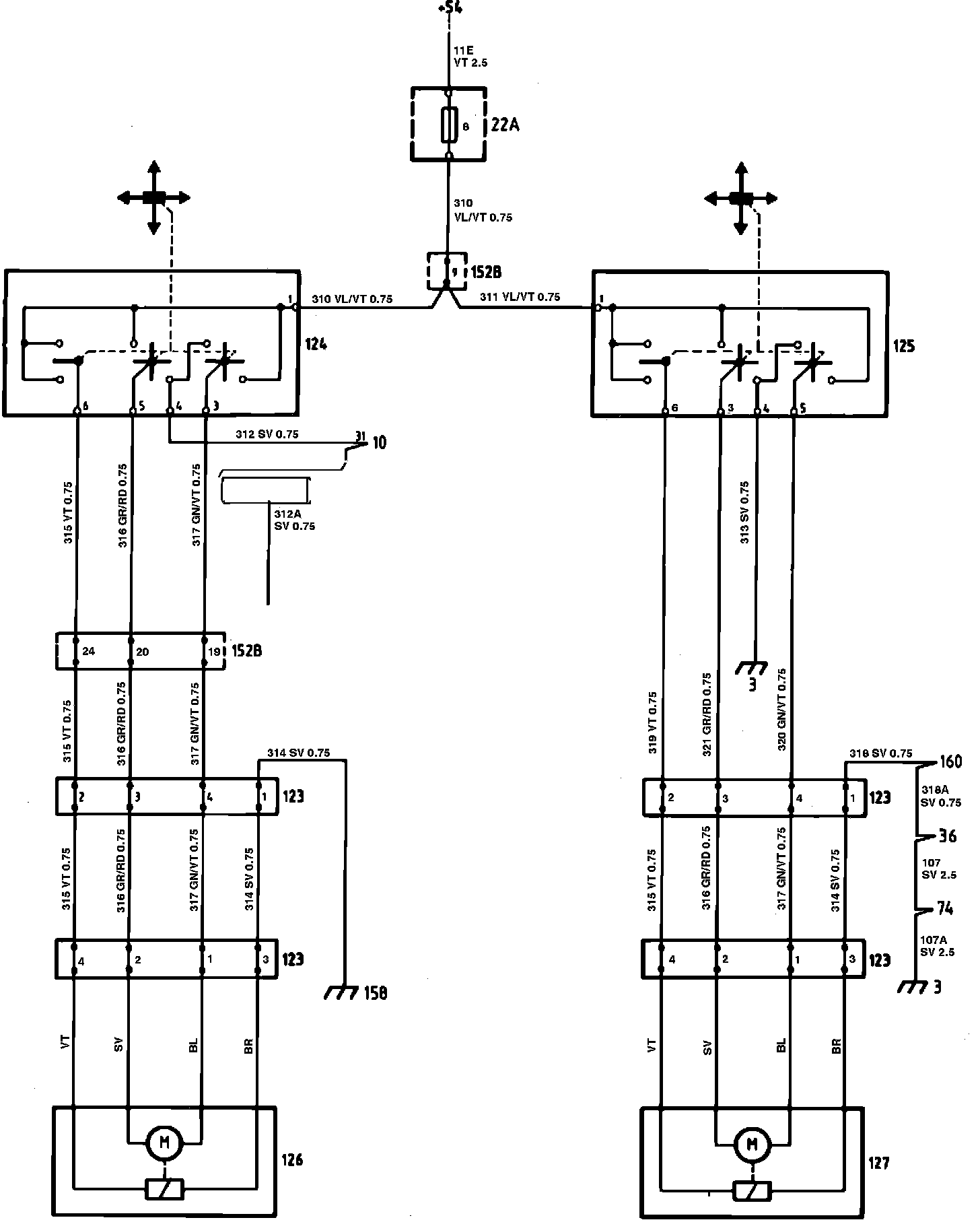

Fig. 41 Rear View Mirrors Wiring Circuit:
