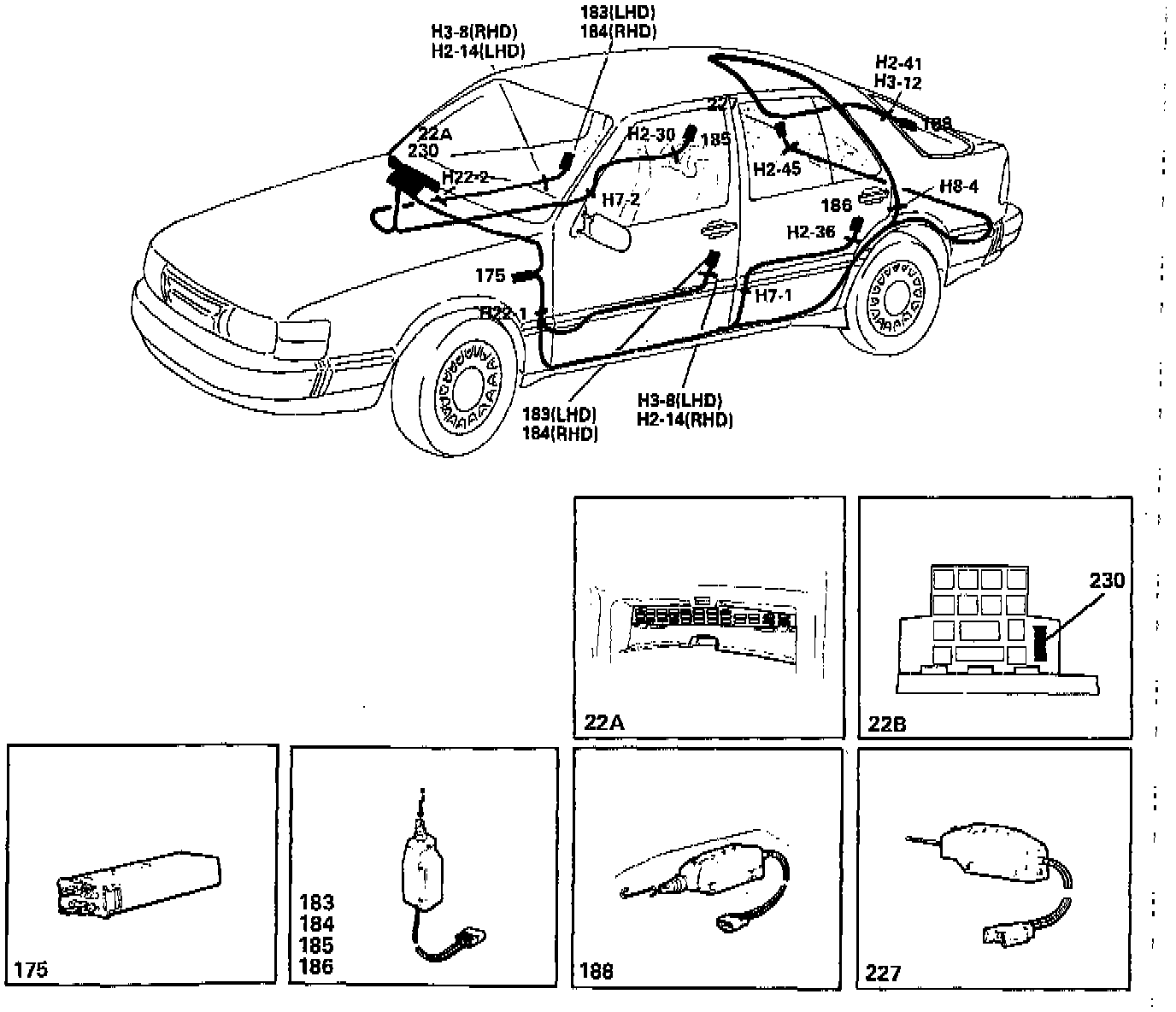

Locks: Locations

Central Locking System:

22A Fuse board
^ behind the access panel in the glove compartment

175 Control unit for the central locking system
^ under the facia on the left-hand side (behind the knee guard)


183 Locking mechanism for the central locking system
^ in the driver's door

184 Motor for the central locking system
^ in the co-driver's door


185 Motor for the central locking system, right-hand rear door
^ in the right-hand rear door

186 Motor for the central locking system, left-hand rear door
^ in the left-hand rear door

188 Motor for the luggage compartment lid lock
^ in the luggage compartment lid


227 Motor for the fuel tank lid lock
^ at the fuel tank lid

230 Distribution terminal +30
^ in the electrical distribution box behind the glove compartment

G8 Earthing point in the facia
^ at the left-hand front speaker opening


2-pole connectors:

H2-14 ^ in the co-driver's door

H2-30 ^ in the right-hand rear door

H2-36 ^ in the left-hand rear door

H2-41 ^ in the luggage compartment lid

H2-45 ^ at the fuel filler cap


3-pole connectors:

H3-8 ^ in the driver's side door

H3-12 ^ in the tailgate


7-pole connectors:

H7-l ^ in the left-hand B pillar

H7-2 ^ in the right-hand B pillar


8-pole connector:

H8-4 ^ at the left-hand rear wheel housing


22-pole connectors:

H22-1 ^ in the left-hand A pillar

H22-2 ^ in the right-hand A pillar
