Right-Hand Drive

To Remove
1 On RHD cars the windscreen wiper should be started and the ignition switched off when the wipers are in a vertical position.

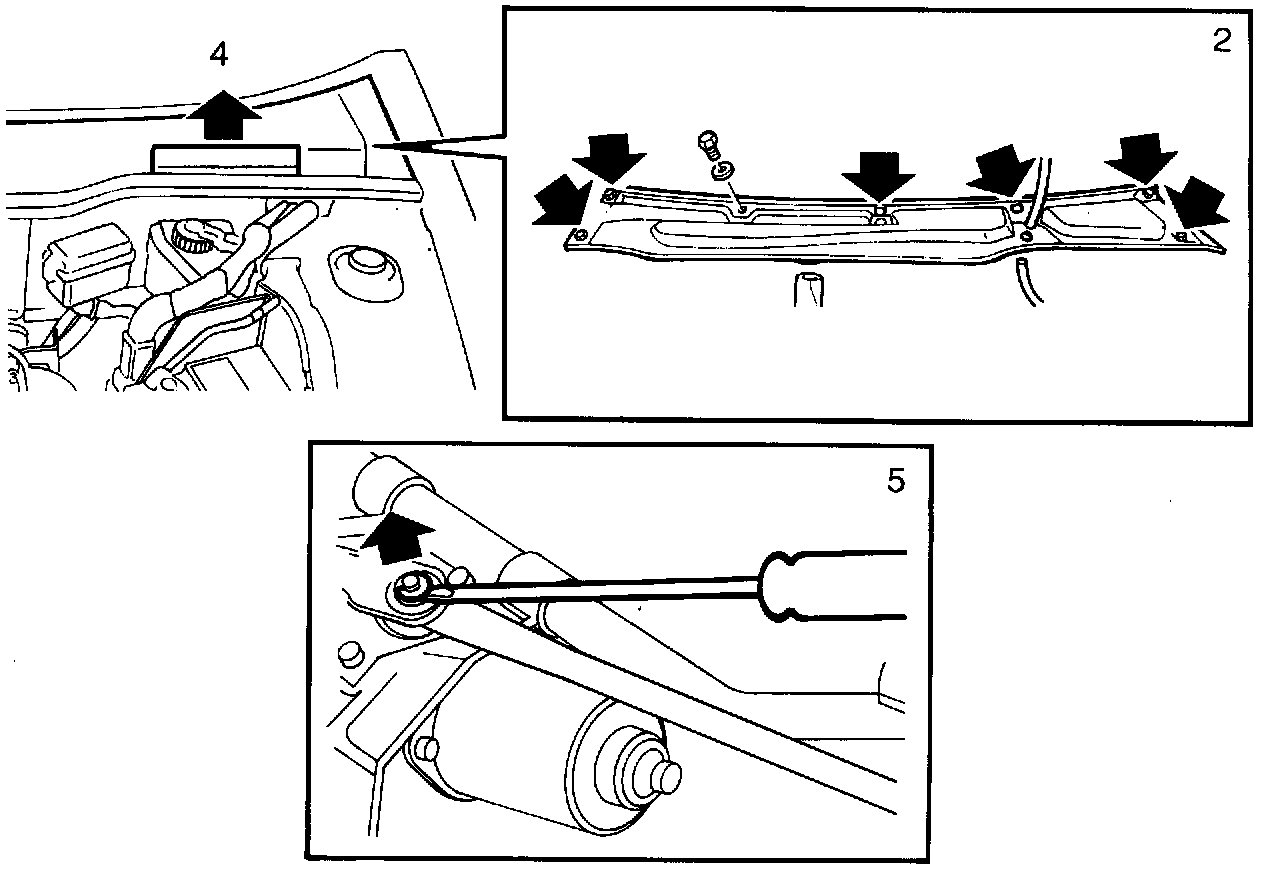

2 Remove the bonnet seal and cover panel (8 screws) and separate the washer hose.
3 Disconnect the negative battery cable.
4 If the car is equipped with anti-lock brakes (ABS), release the electronic unit from the bracket and withdraw it.
5 Use a screwdriver to prise loose the linking arms.
6 Unplug the wiper motor connector.
7 Remove the motor (3 bolts) and withdraw it.

To Install
Install in reverse order.

Tightening torque, wiper arms: 14 - 22 Nm (10 - 16 lbf ft)
