Vacuum Reservoir: Service and Repair
Vacuum Tank:
To Remove
- Remove mass air flow sensor and push air hose aside.
- Disconnect vacuum hoses from tank.

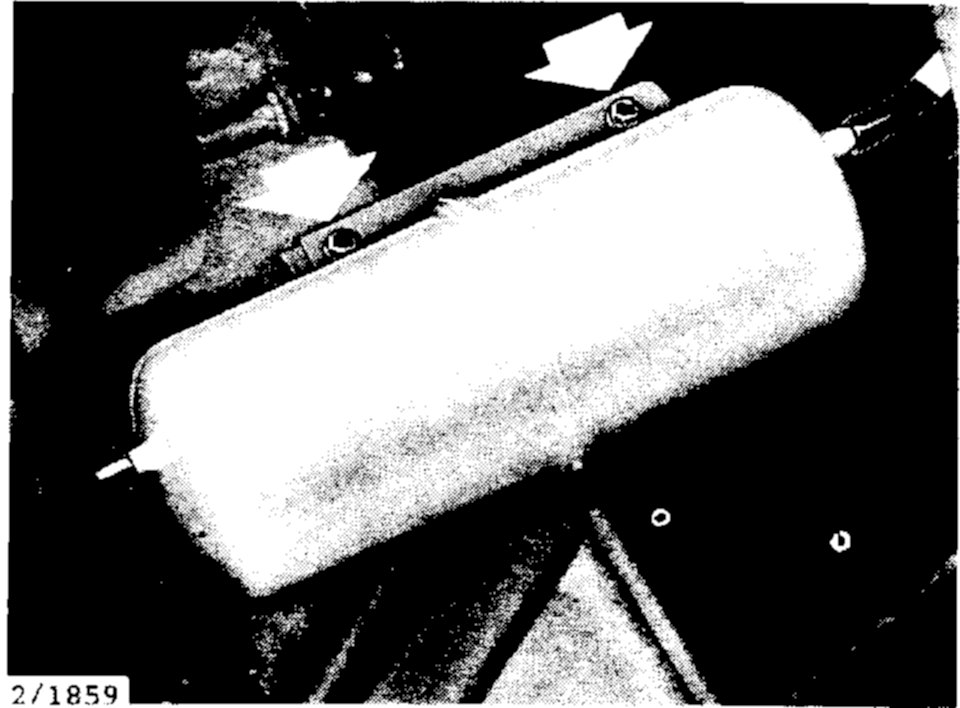

- Remove vacuum tank screws (2) and remove tank.
- Remove bracket from tank.
To Install
- Refit in reverse order.
