Coolant Reservoir: Service and Repair

Reservoir Tank

Removal
1. Disconnect the overflow hose from the radiator filler neck position.

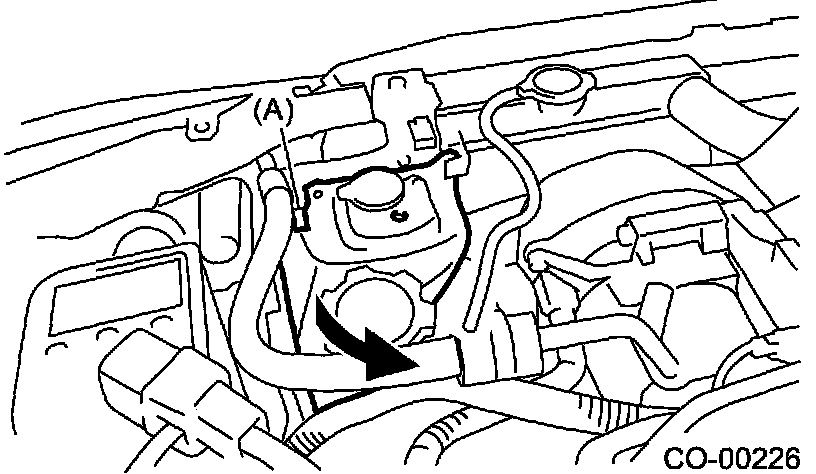

2. Pressing the pawl (A), remove the reservoir tank by pulling in the direction indicated by the arrow.





Installation
1. Install in the reverse order of removal.

Inspection
1. Make sure the engine coolant level is between full and low.
