Home >> Saab >> 2005 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Engine Control Module (ECM) C1

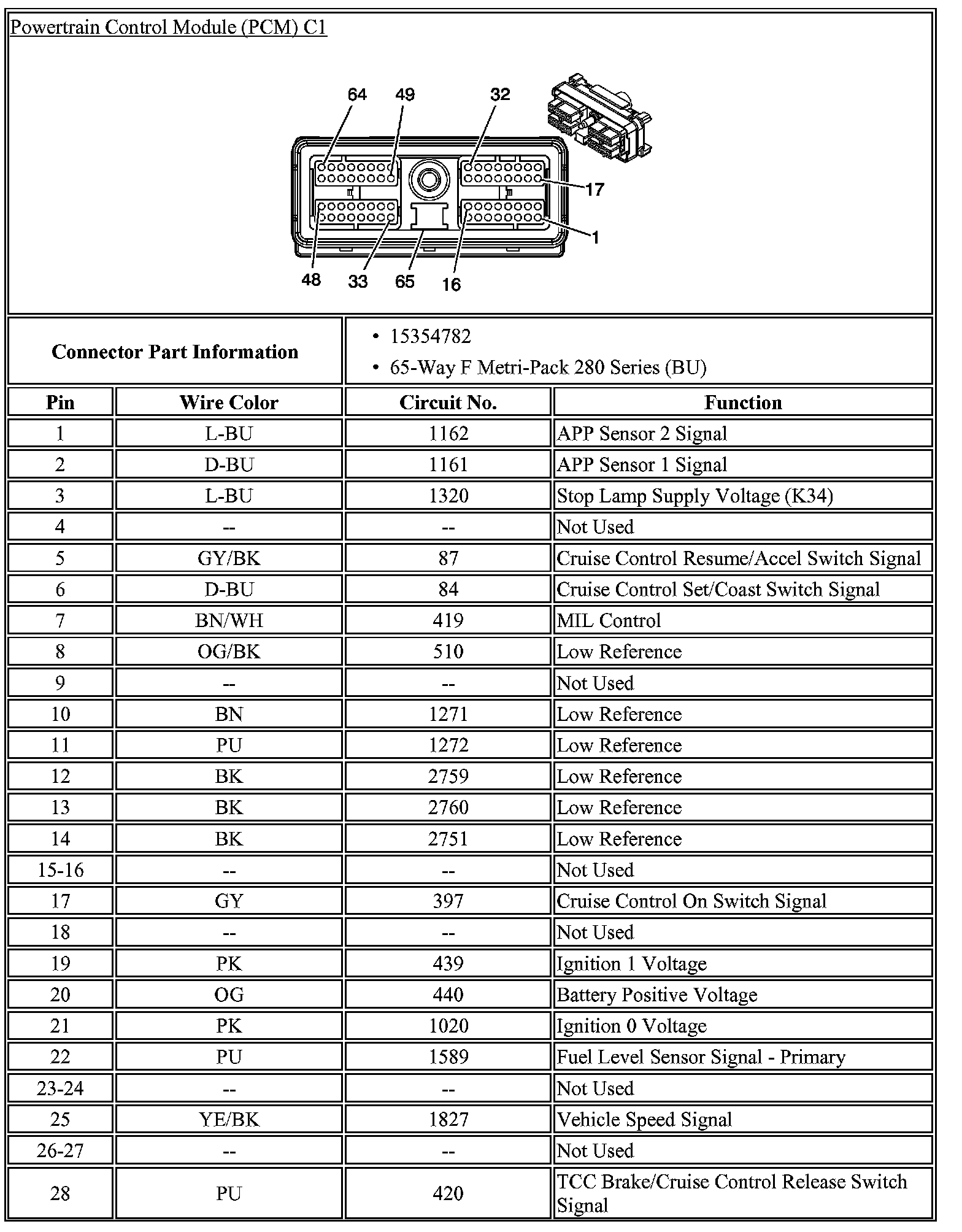

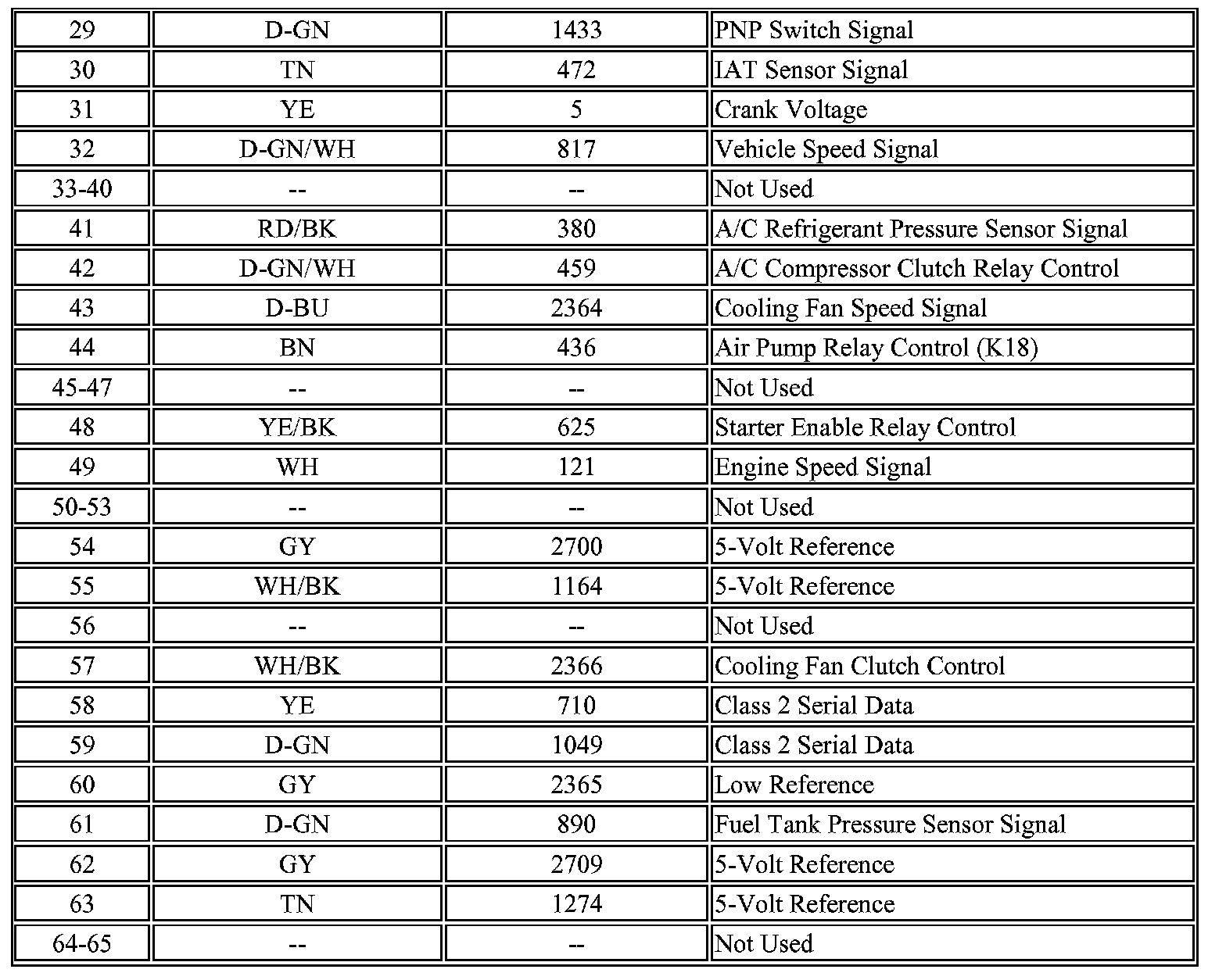

Engine Control Module (ECM) C1

Powertrain Control Module C1:



Powertrain Control Module C1:
