Engine Controls Schematics 1

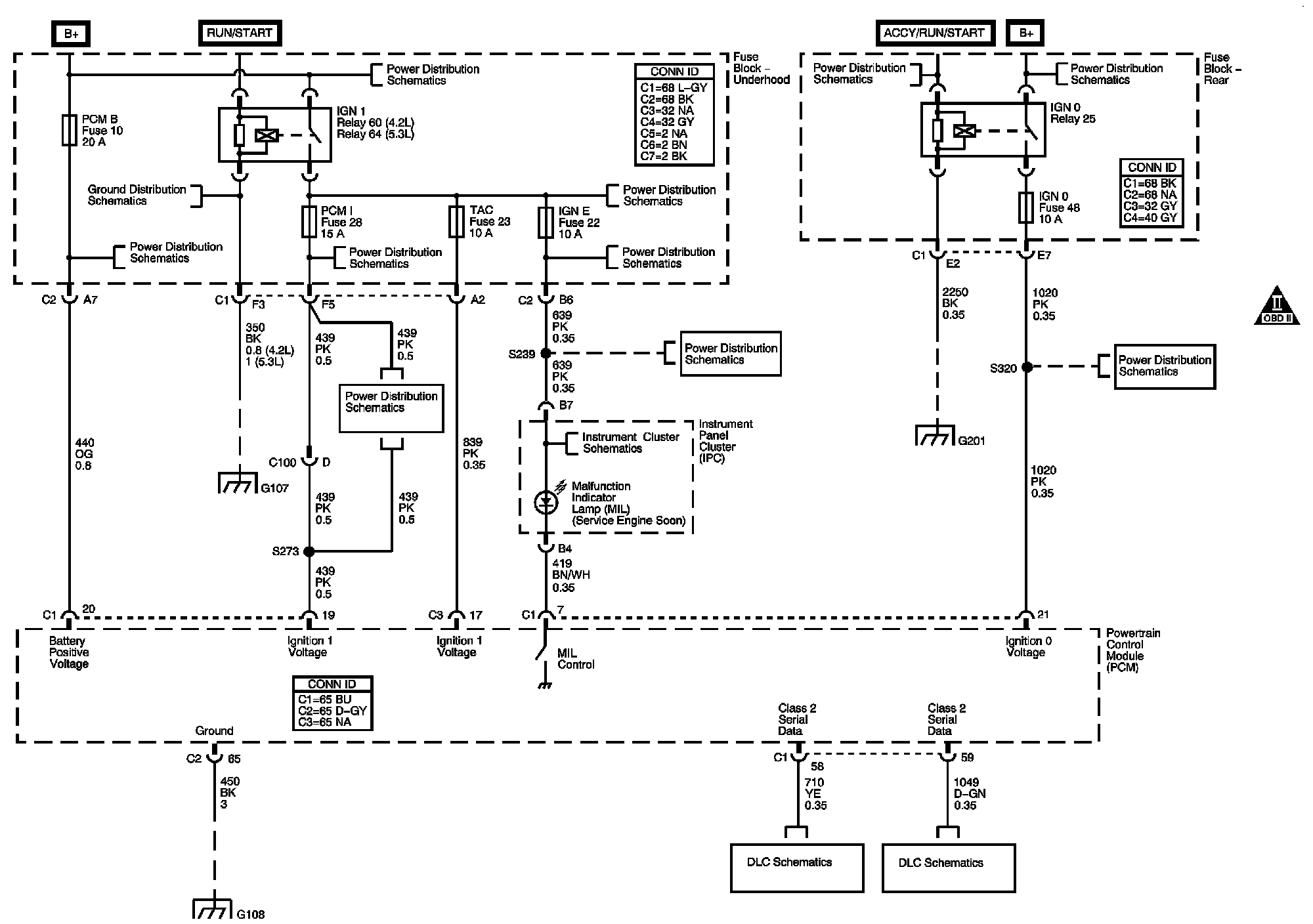

Module Power, Ground, Serial Data and MIL:

Next Diagram Engine Controls Schematics 2

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
