Engine Controls Schematics 10

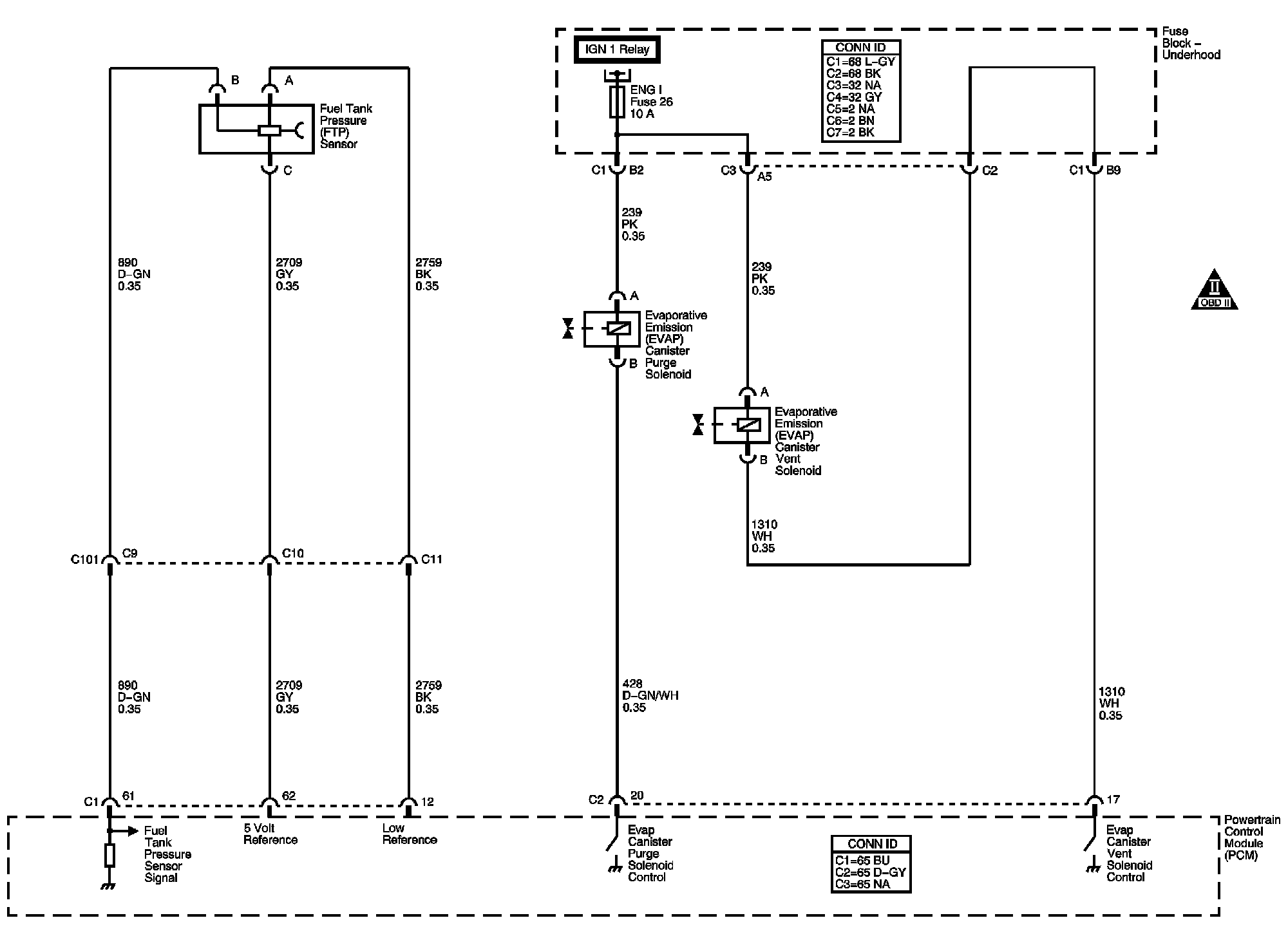

Fuel Controls - EVAP Controls:

Next Diagram Engine Controls Schematics 11

Previous Diagram Engine Controls Schematics 9

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
