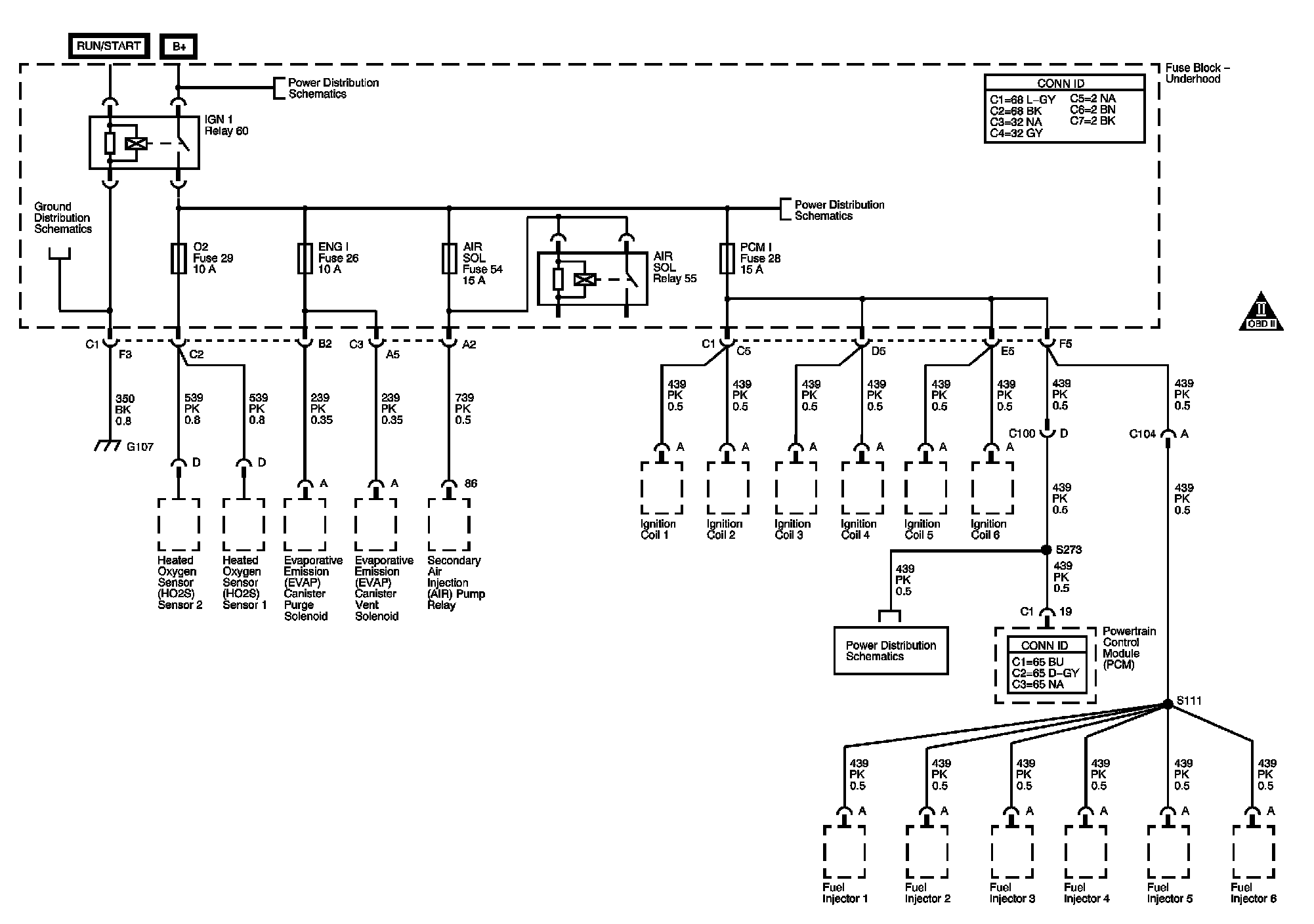

Engine Controls Schematics 2

Fuse Block Underhood - IGN 1 Relay:

Next Diagram Engine Controls Schematics 3

Previous Diagram Engine Controls Schematics 1

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
