C102
C102

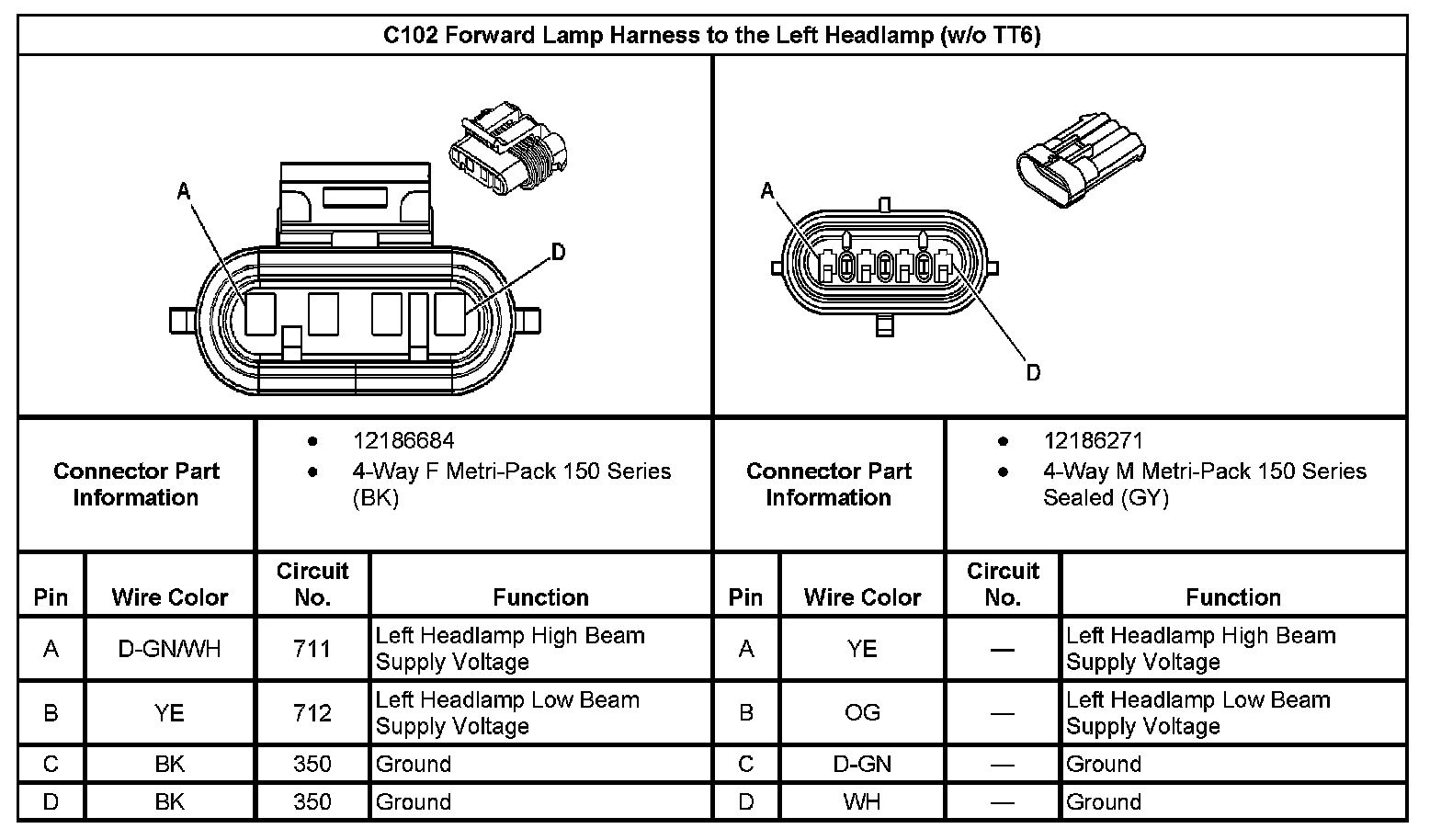

C102 Forward Lamp Harness to the Left Headlamp (Without RPO Code TT6):

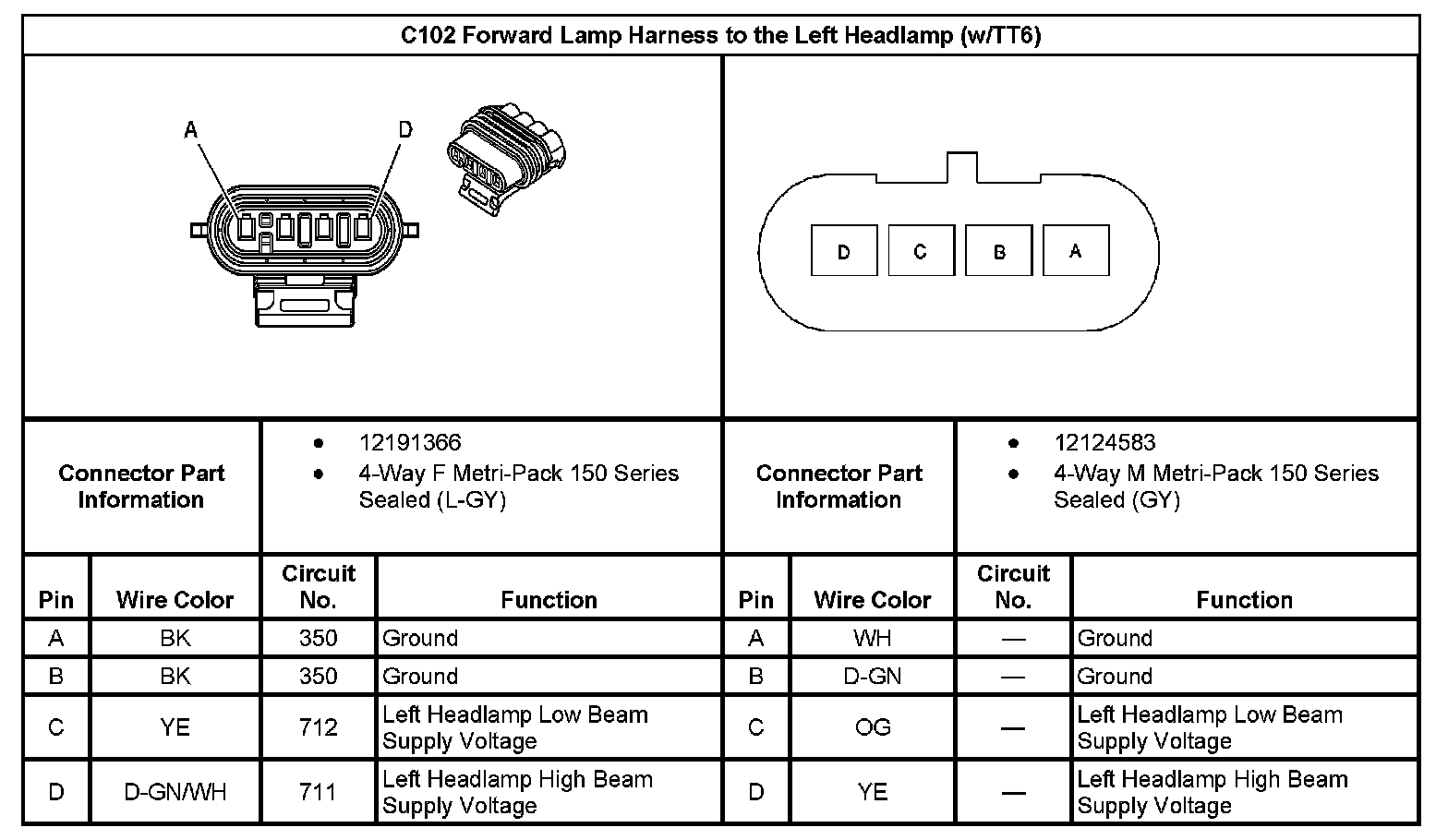

C102 Forward Lamp Harness to the Left Headlamp (With RPO Code TT6):
