Saab
>>
2006
>>
9-7X V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Inline Harness Connector End Views
>>
C100 - C199
>>
C105
C105

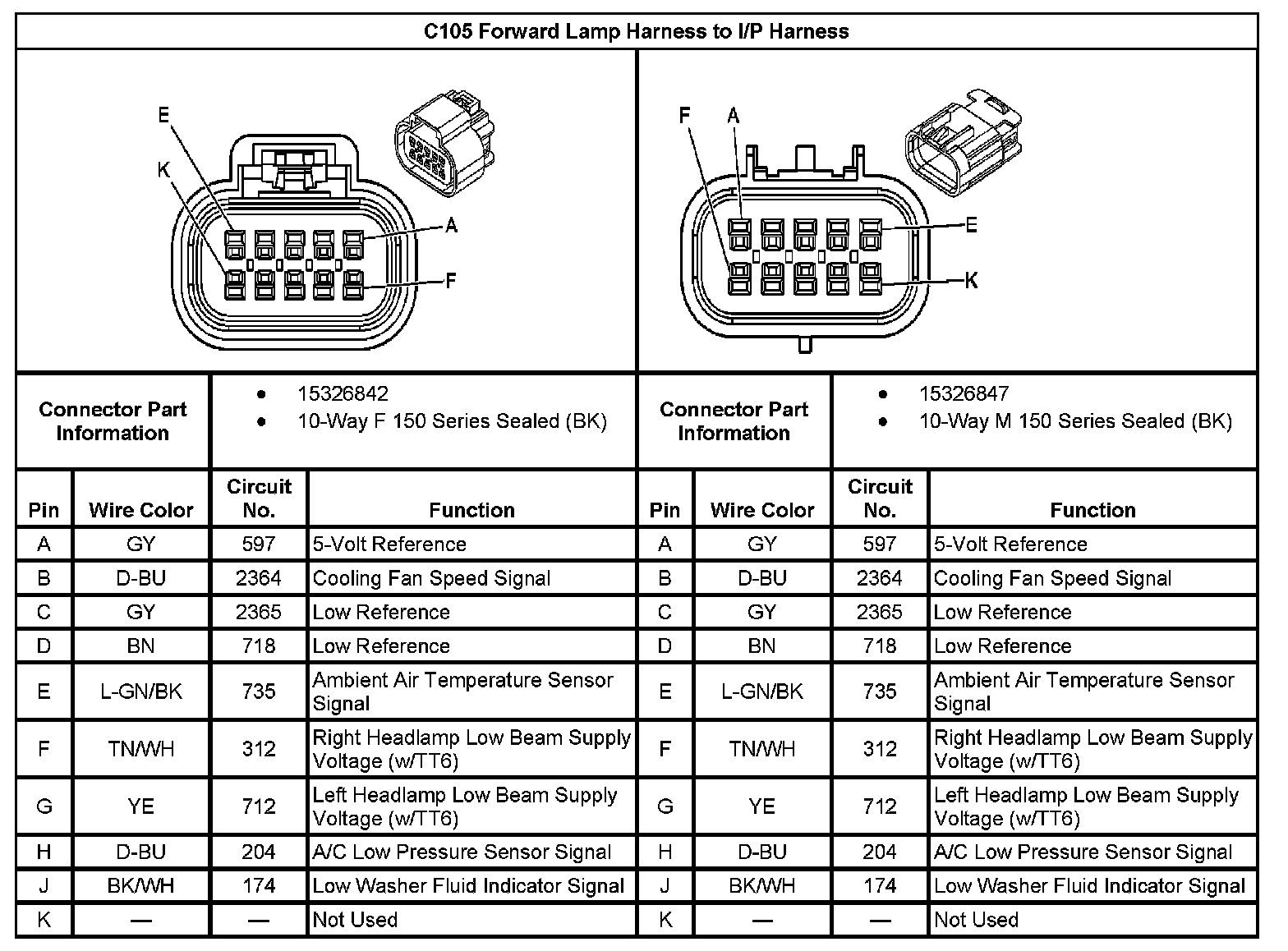

C105 Forward Lamp Harness to I/P Harness:
