C110

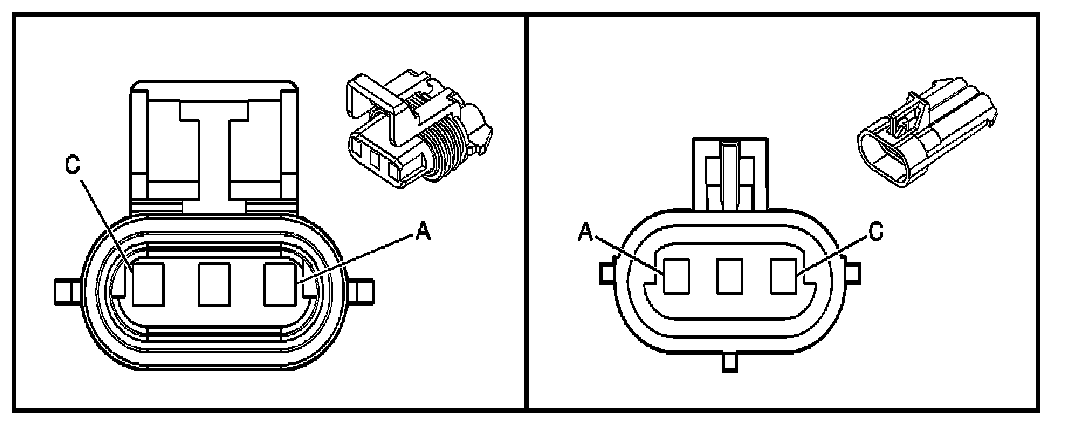

Inline Harness Connector End Views

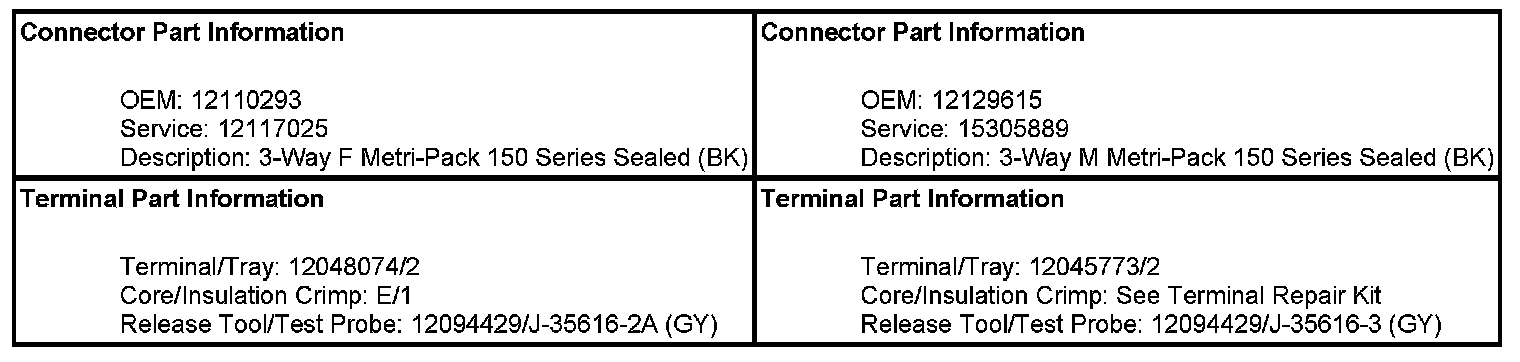

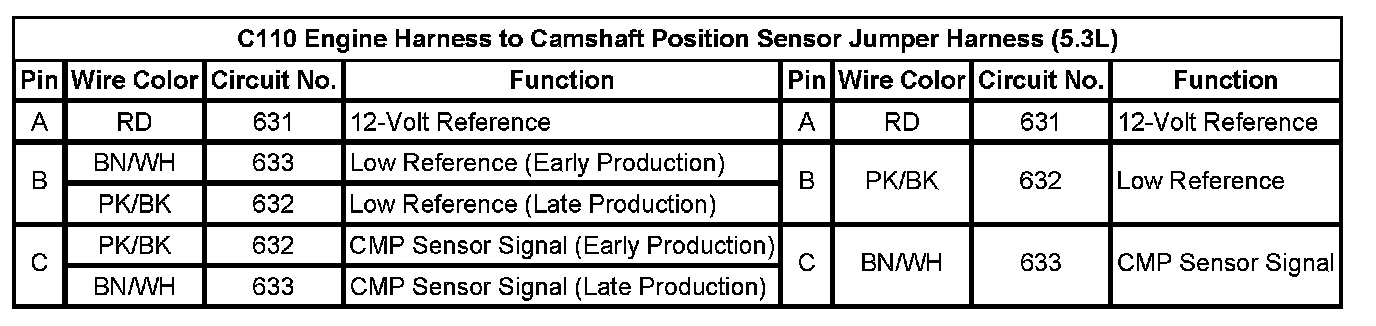

C110 Engine Harness to Camshaft Position Sensor Jumper Harness (5.3L)
