Transmission Pressure Test Port: Service and Repair

Automatic Transmission Fluid Pressure Test Hole Plug Replacement

Removal Procedure

1. Remove the throttle body air inlet duct.

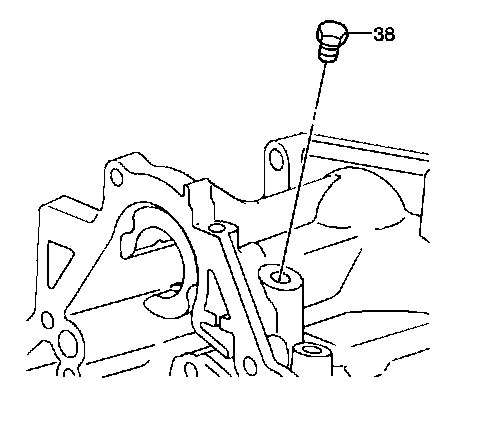

2. Remove the pressure test hole plug (38).

Installation Procedure





Notice: Refer to Fastener Notice.

1. Install the pressure test hole plug (38).

Tighten the plug (38) to 12 N.m (106 lb in).

2. Install the throttle body air inlet duct.
