Front

STABILIZER BAR BUSHINGS

REMOVAL

IMPORTANT: On vehicles with L61 engines and cruise control, it is necessary to remove the left stabilizer bar clamp with vehicle on hoist.

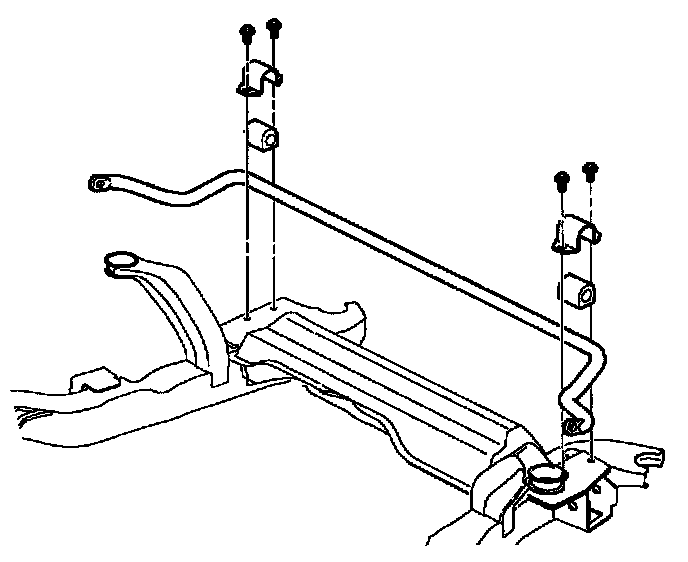

1. Remove stabilizer bar clamps.
2. Remove bushing from stabilizer bar.

INSTALLATION

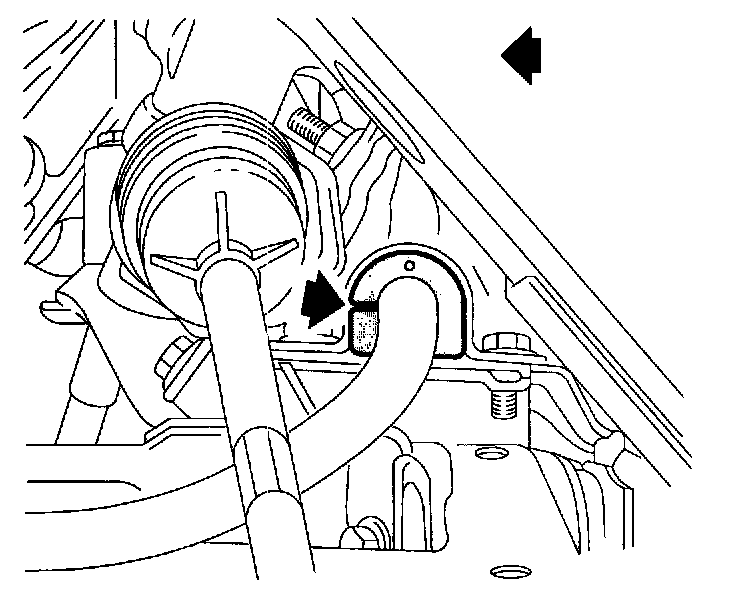

NOTICE: The opening in the stabilizer bar bushing must face toward the front of vehicle.





1. Install new stabilizer bar bushings.
2. Install stabilizer bar clamps and tighten.
^ Stabilizer Bar Clamp-to-Frame Bolts: 20 Nm (15 ft. lbs.)
