Dome Lamp Bulb: Service and Repair

DOME LAMP BULB REPLACEMENT

REMOVAL PROCEDURE

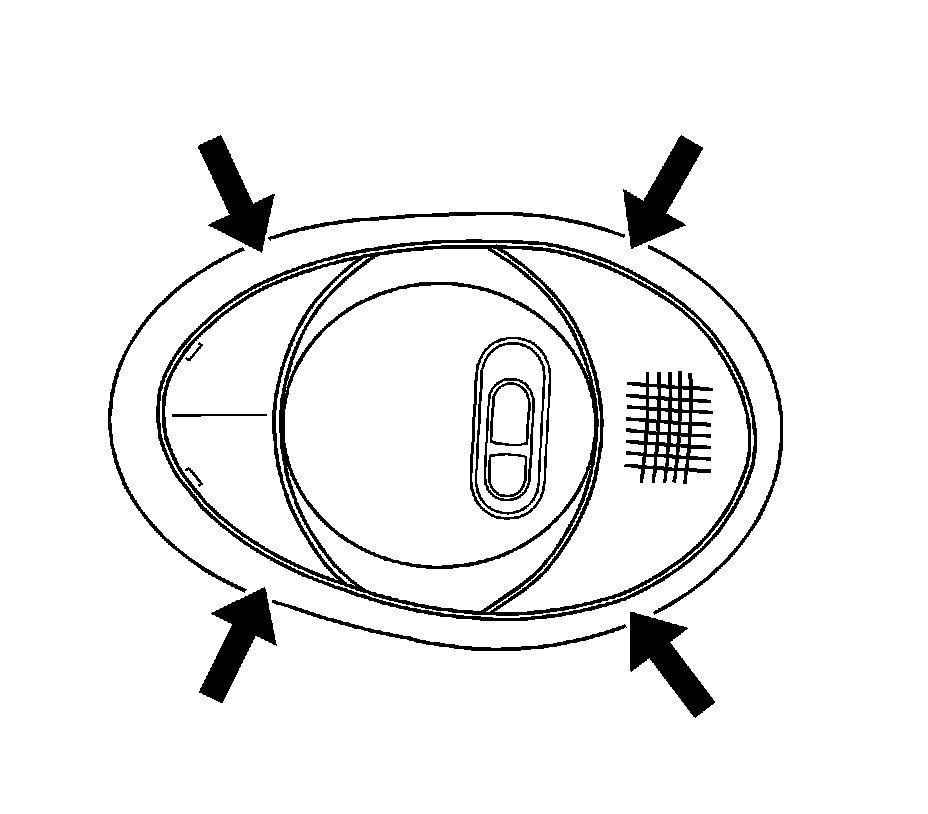

1. Insert a flat-bladed tool between the lens and the headliner. Pry the lens off of the headliner.




2. Remove the bulbs (1,2,3).

INSTALLATION PROCEDURE




1. Install the bulbs (1,2,3).




2. Install the lens until the tabs are fully seated.
