83. Wiring Harness Connection

Wiring Harness Connection

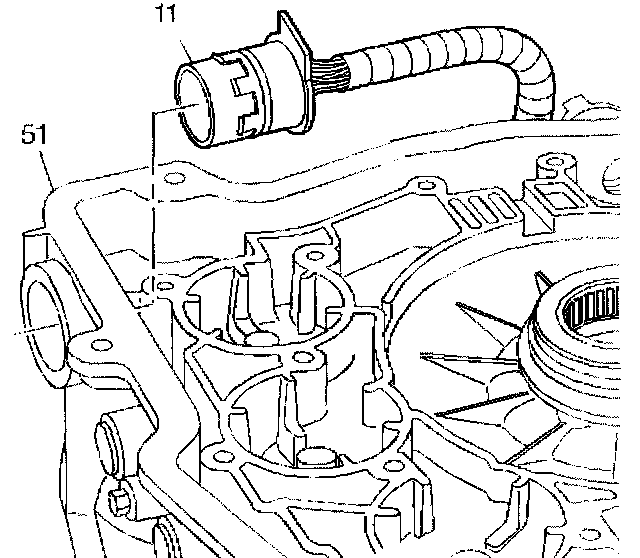

1. Inspect the wiring harness (11) for damage.
2. Inspect the pass thru connector pins and o-ring seal for damage.
3. Assemble the wiring harness pass tire connector into the transaxle case bore from the inside of the transaxle case.
