68. Engine Flywheel Installation

Engine Flywheel Installation

Tools Required
^ J 38122-A Crankshaft Balancer Holder
^ J 45059 Angle Meter

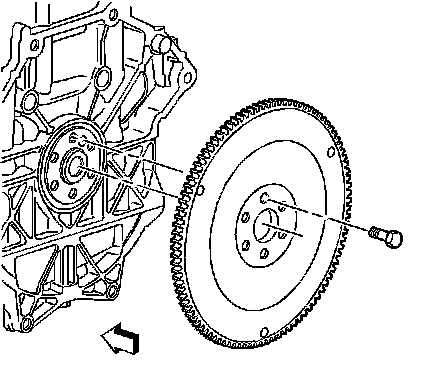

1. Install the flywheel.
2. Install the NEW bolts.

Notice: Refer to Fastener Notice in Service Precautions.

3. Holding the crankshaft balancer with J 38122-A, tighten the bolts evenly.
Tighten the bolts to 53 Nm (39 ft. lbs.), plus 25 degrees using the J 45059.
