Mixture Control Solenoid: Testing and Inspection

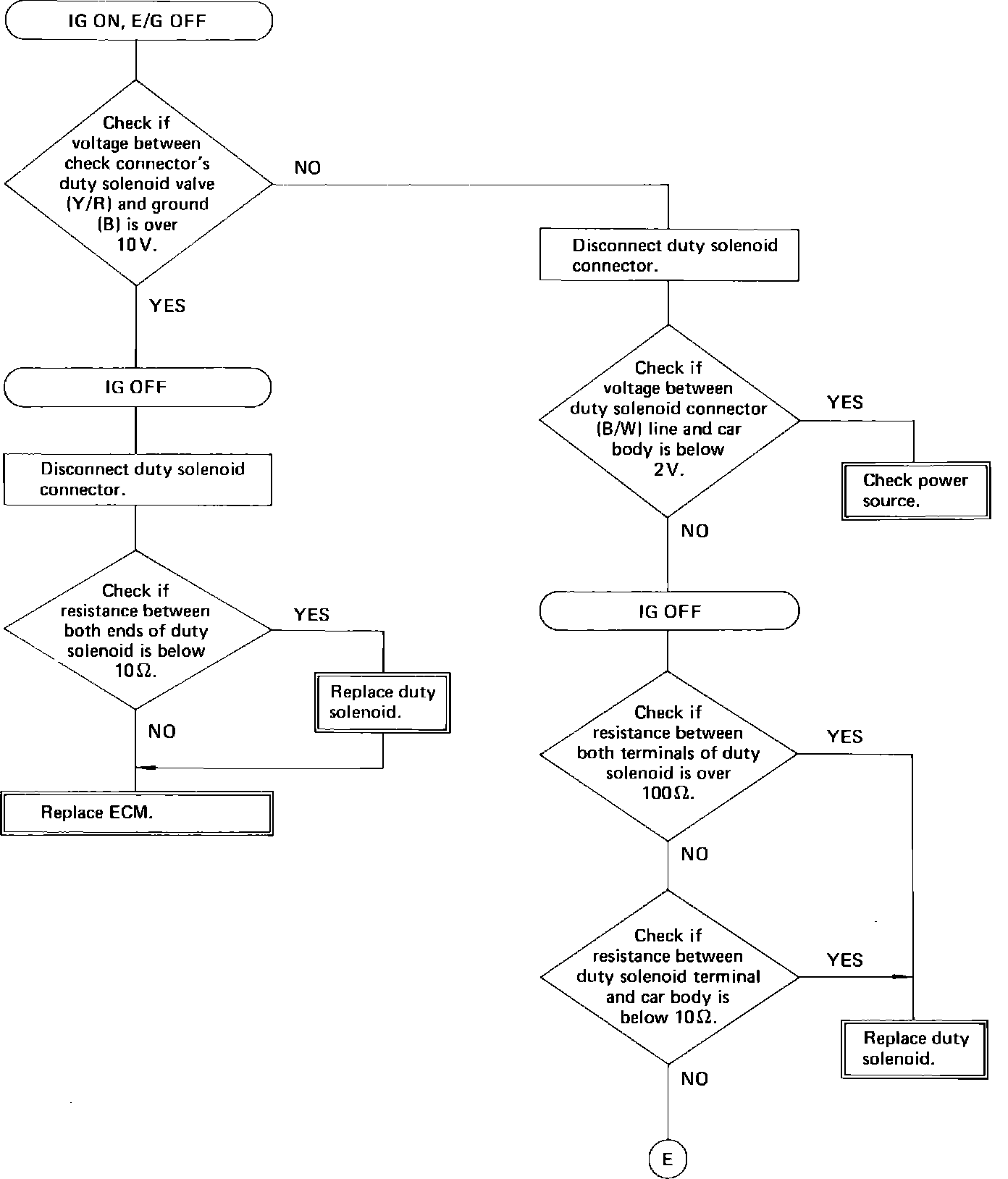

Fig. 14a Electronically controlled carburetor diagnostic chart.Trouble code 32:

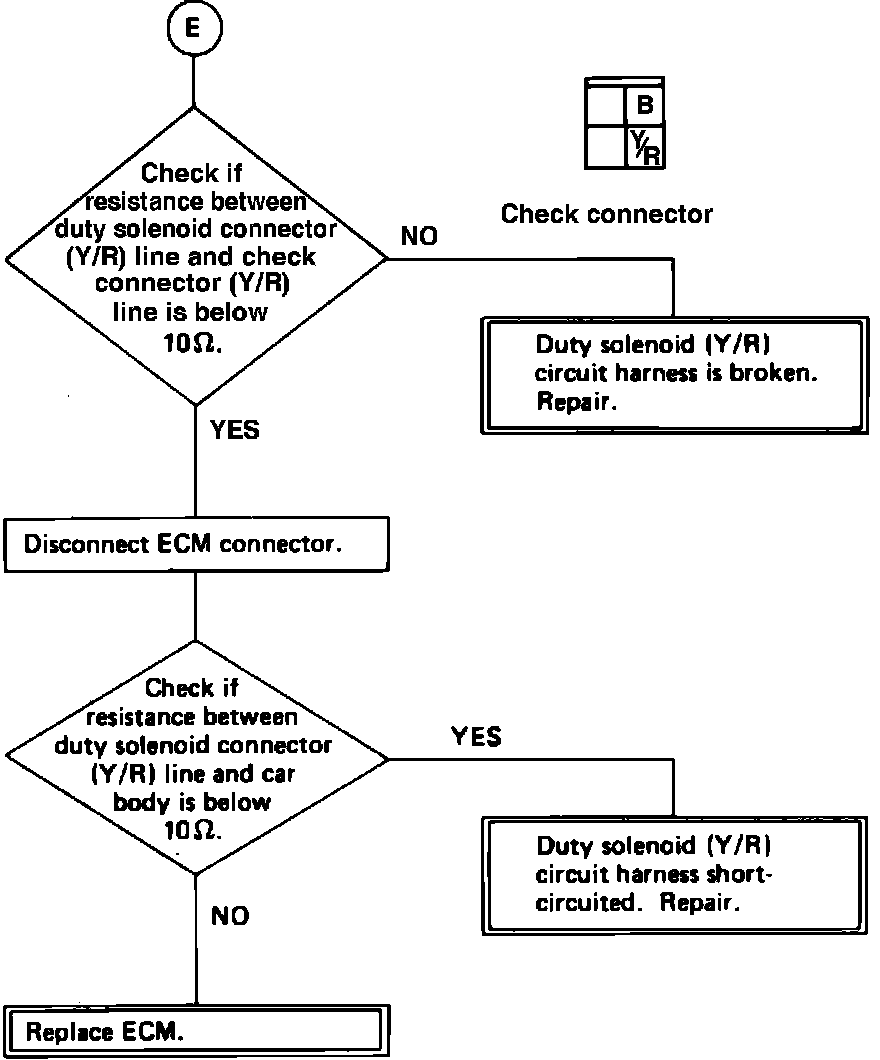

Fig. 14b Electronically controlled carburetor diagnostic chart Trouble code 32:
