Shift Light: Testing and Inspection

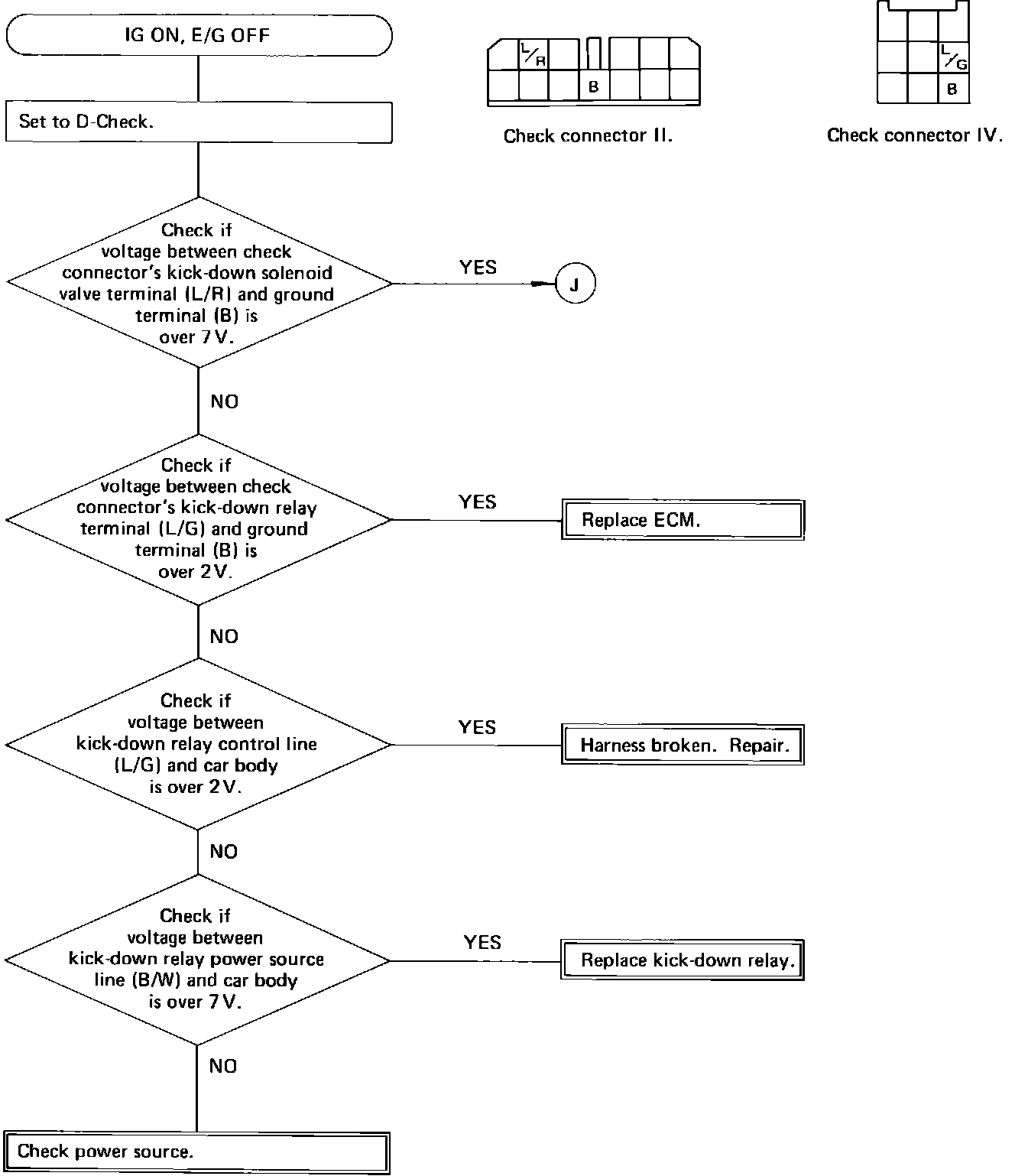

Fig. 21a Electronically controlled carburetor diagnostic chart. Trouble code 55 (Part 1 of 2):

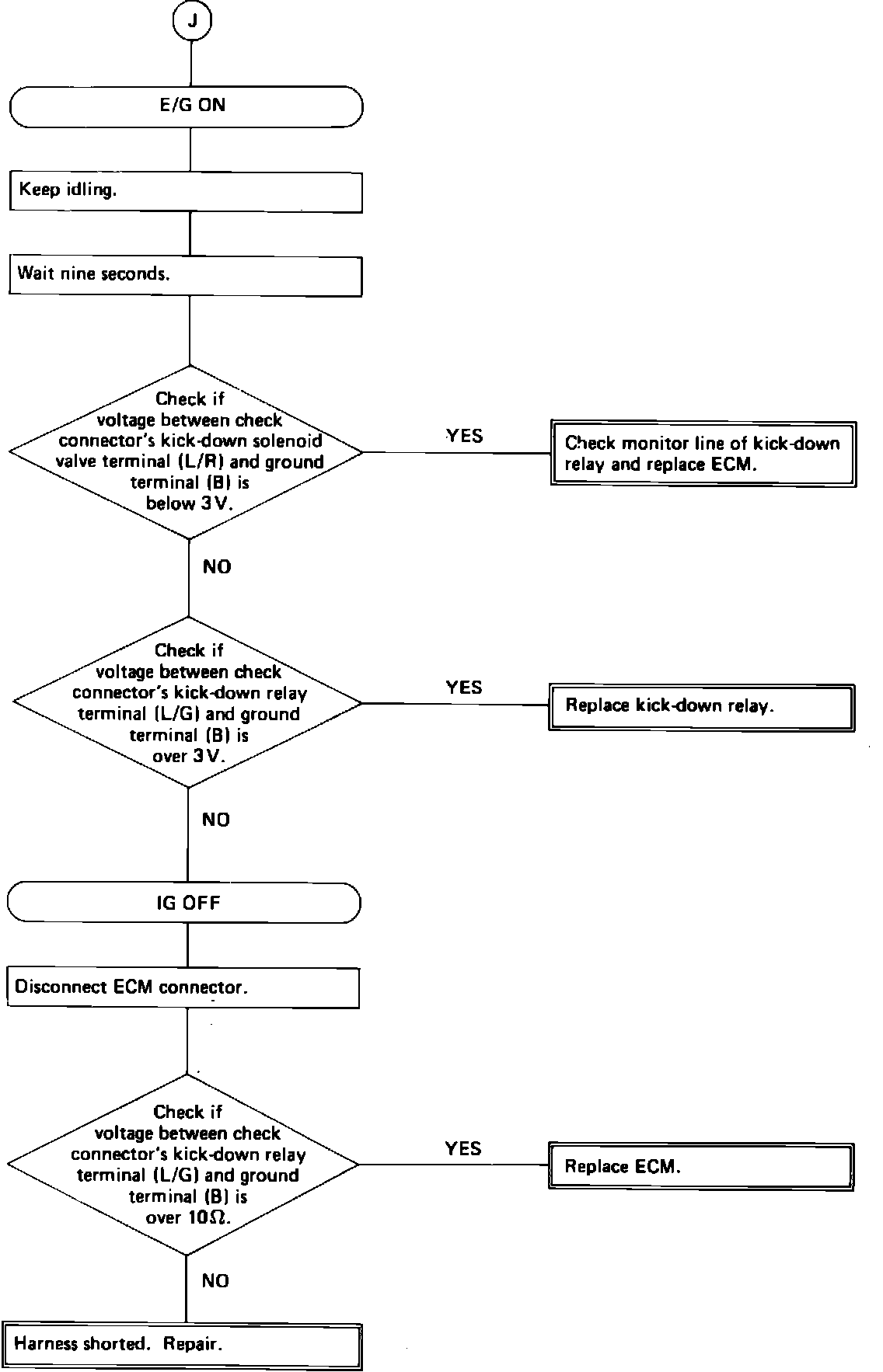

Fig. 21b Electronically controlled carburetor diagnostic chart. Trouble code 55 (Part 2 of 2):
