Diagnostic Mode Switch/Connector: Locations

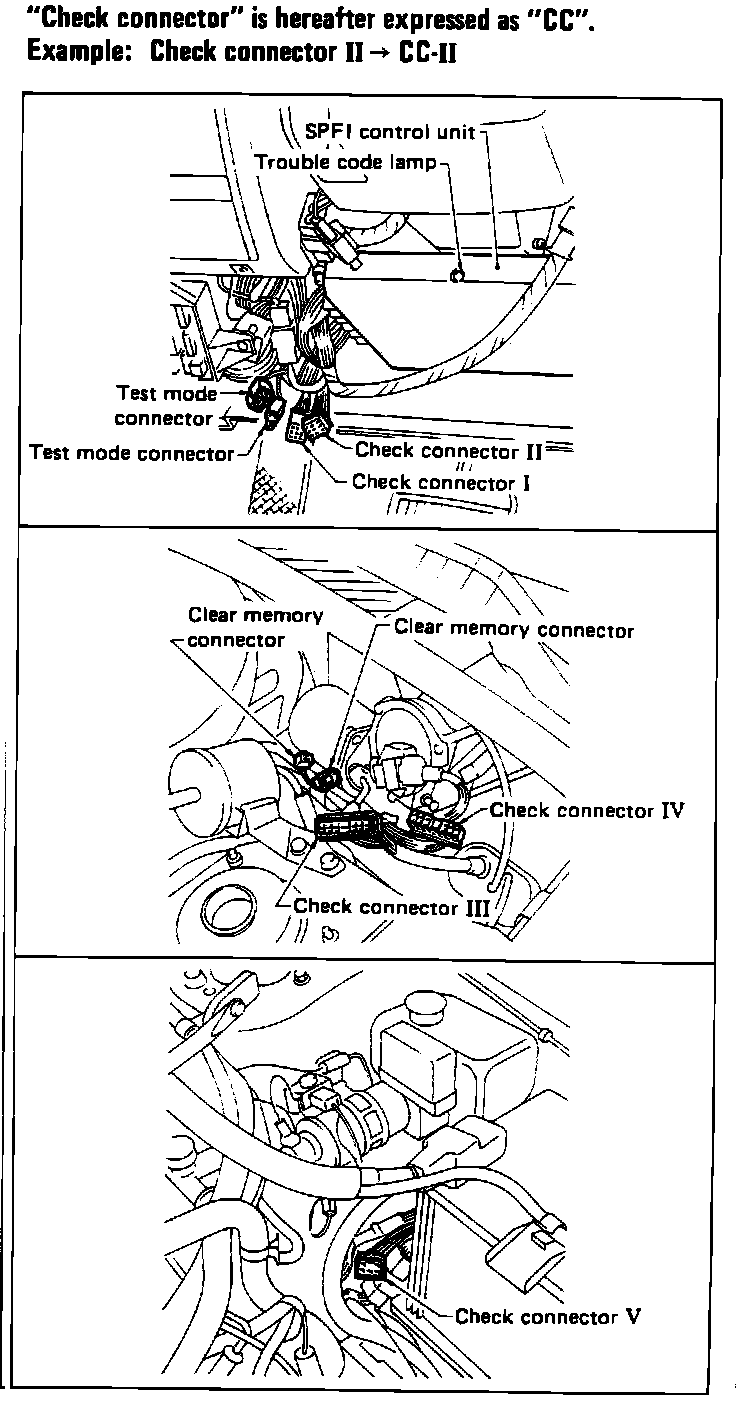

Diagnostic And Check Connector ID:

Diagnostic Connector Location:

LOCATION AND ID
^ CHECK ENGINE LAMP
On the instrument cluster.
^ O2 MONITOR LAMP
On the ECU (under the steering column).

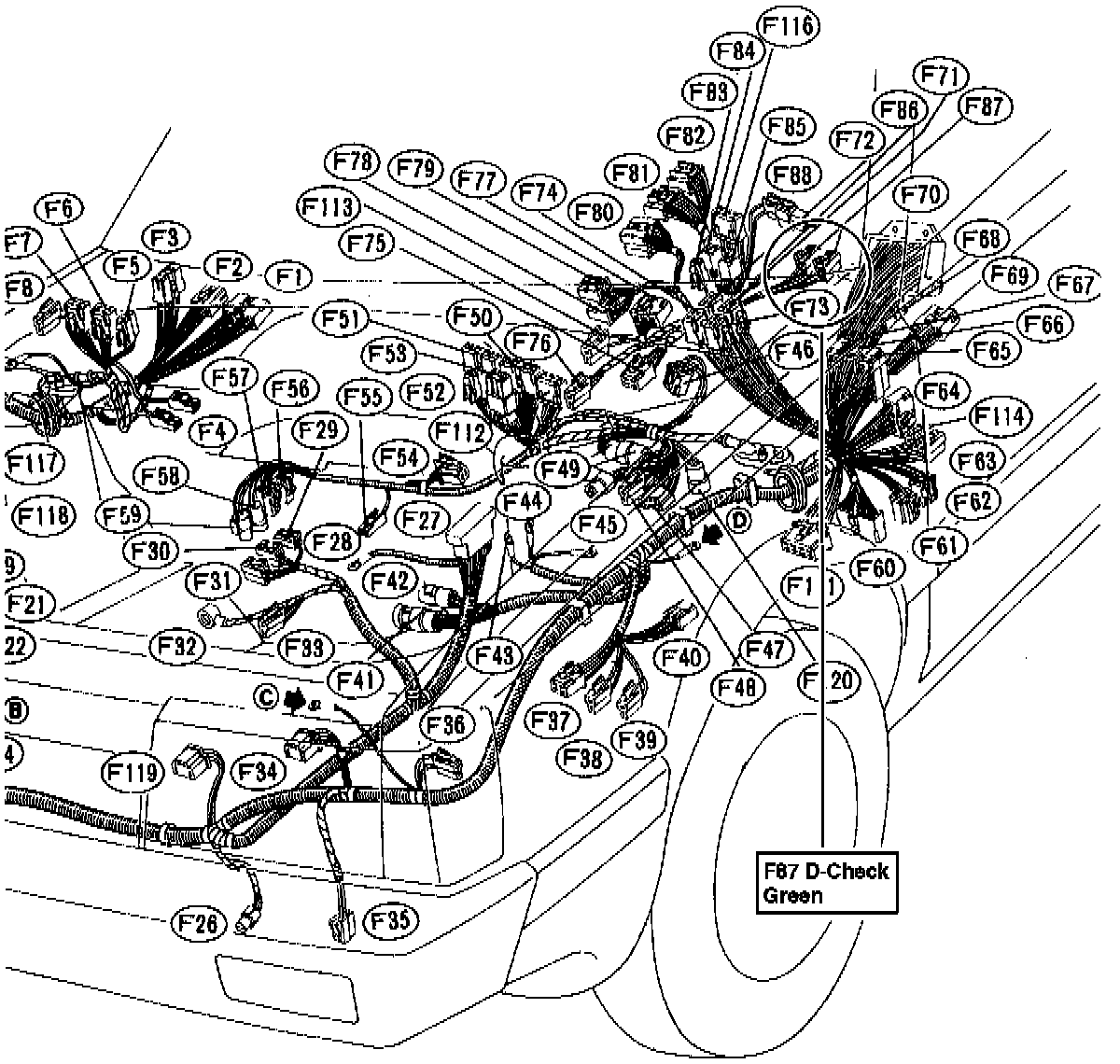

^ D-CHECK CONNECTORS (Test Mode)
Near the ECU (Green connectors.)
