Idle Up Control Valve: Testing and Inspection

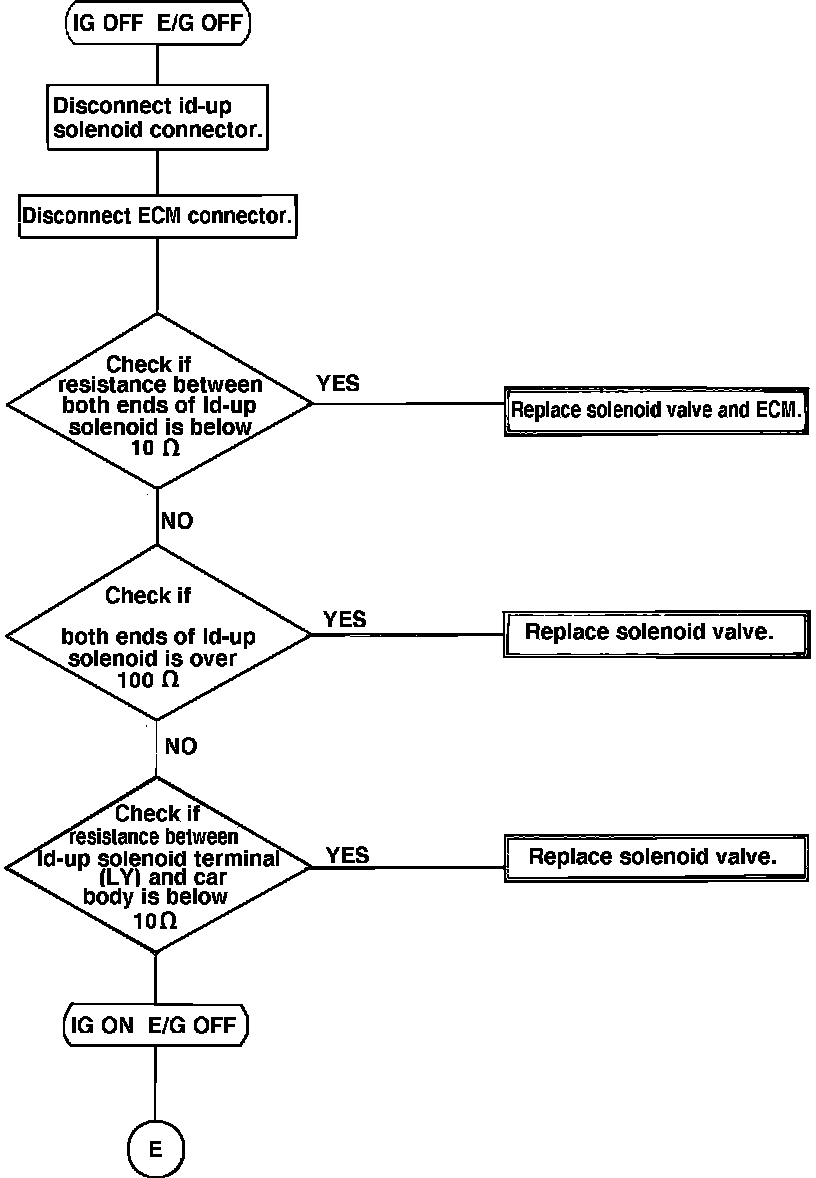

Fig. 31a Electronically controlled carburetor diagnostic chart. Trouble code 24.:

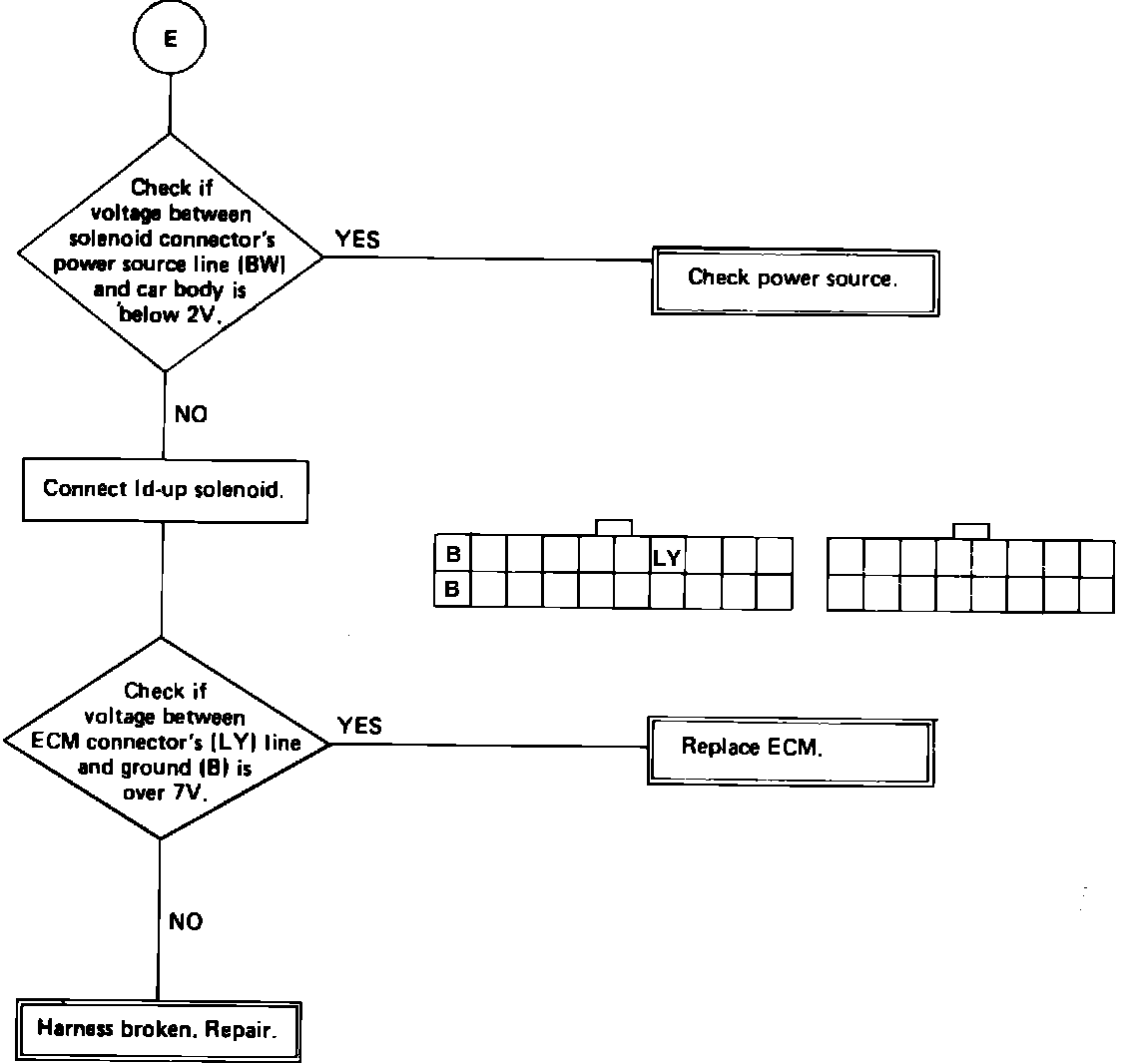

Fig. 31b Electronically controlled carburetor diagnostic chart. Trouble code 24.:
