Torque Specifications

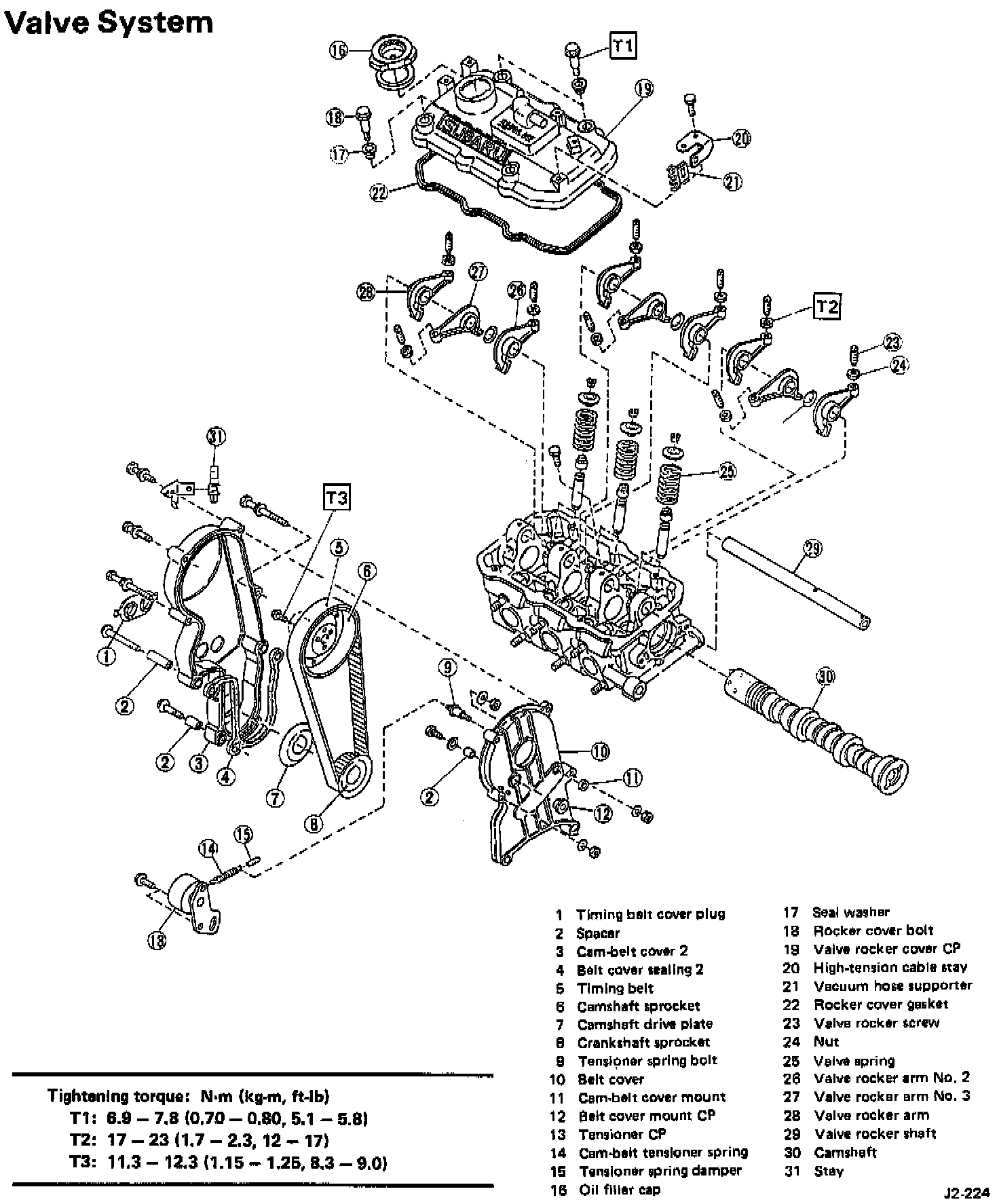

Valve System:

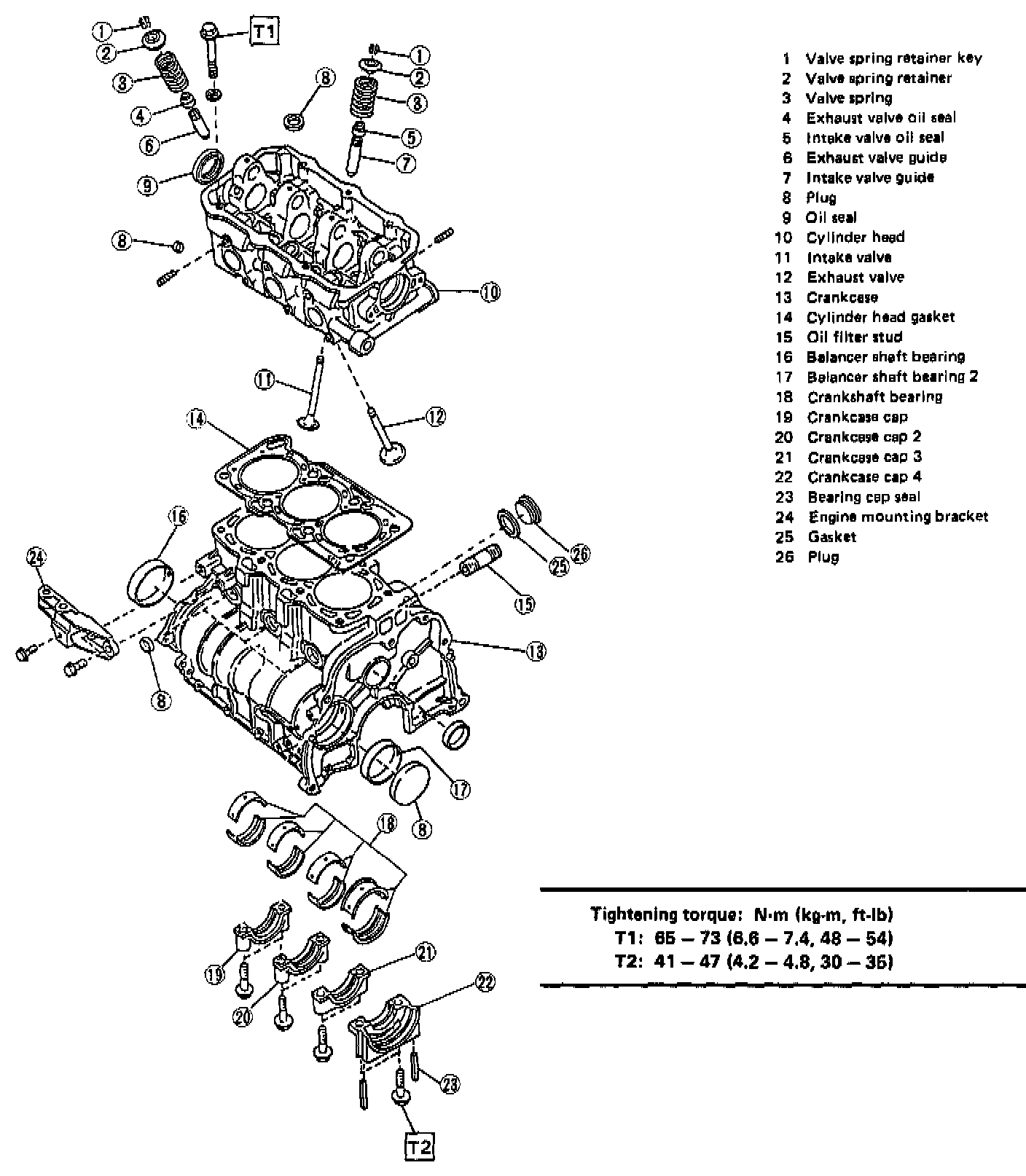

Crankcase And Cylinder Head:

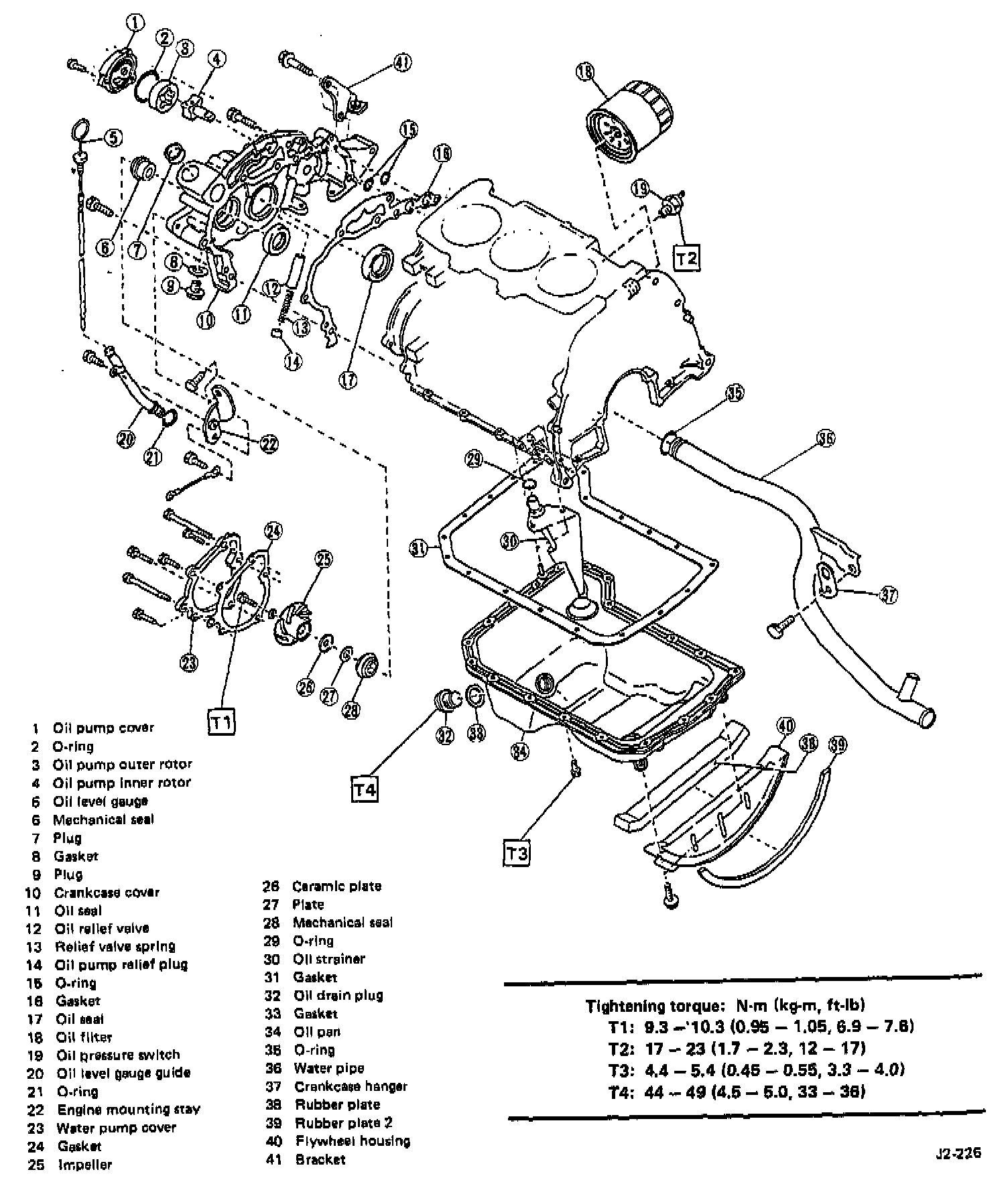

Lubrication and Cooling Equipment:

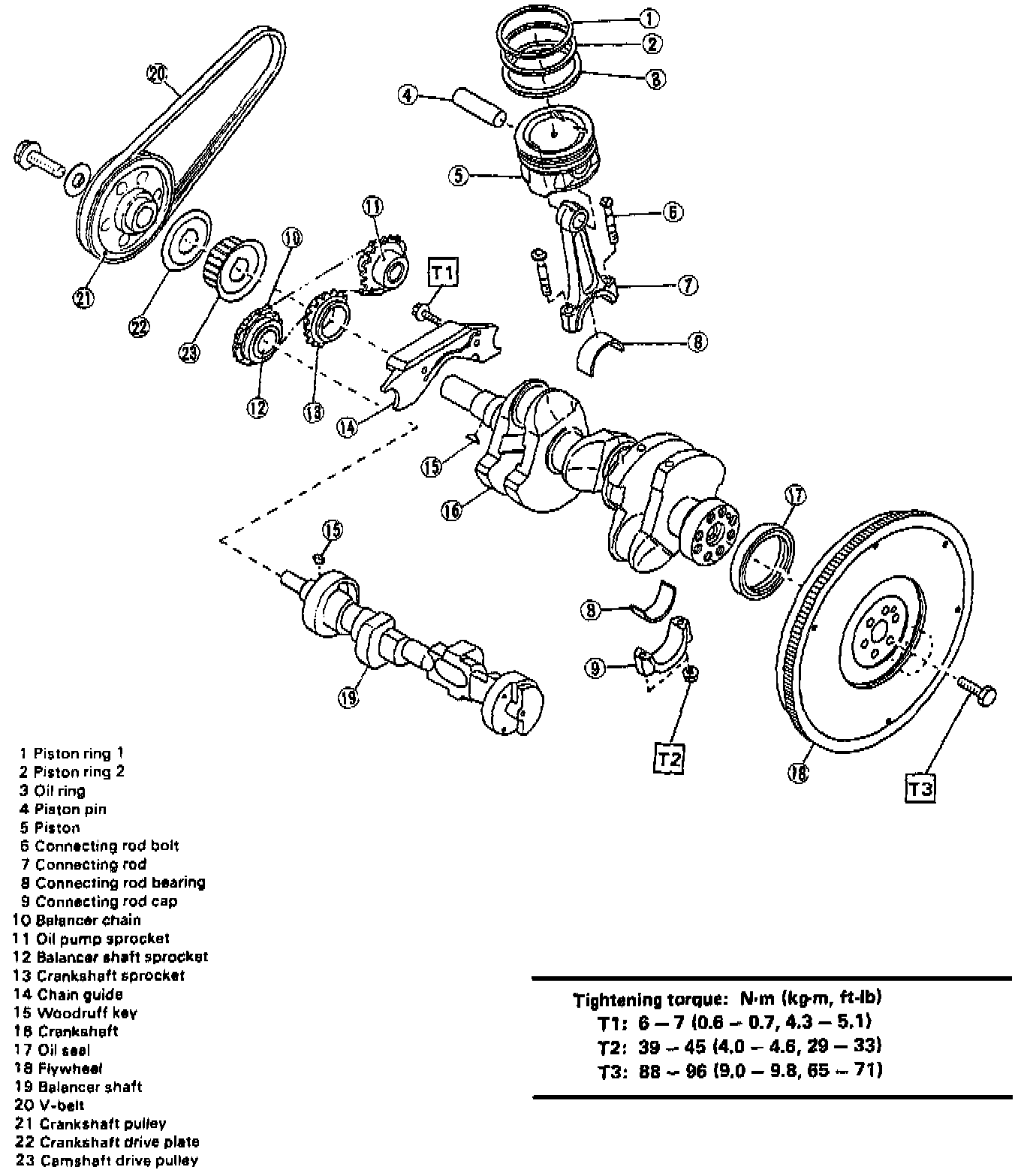

Crankshaft and Piston:

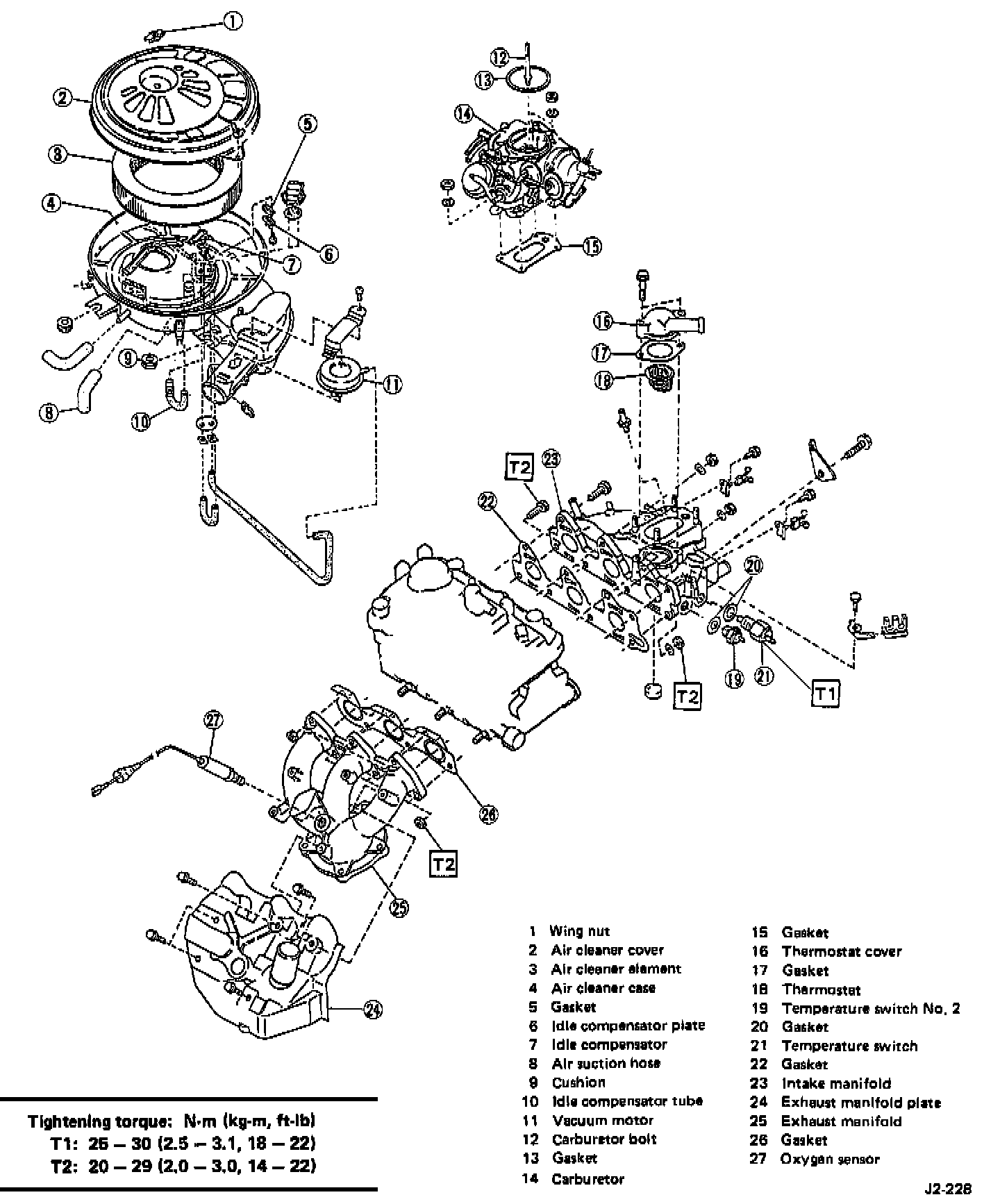

Intake And Exhaust Manifold:
