Idle Up Control Valve
>>
Testing and Inspection
Idle Up Control Valve: Testing and Inspection

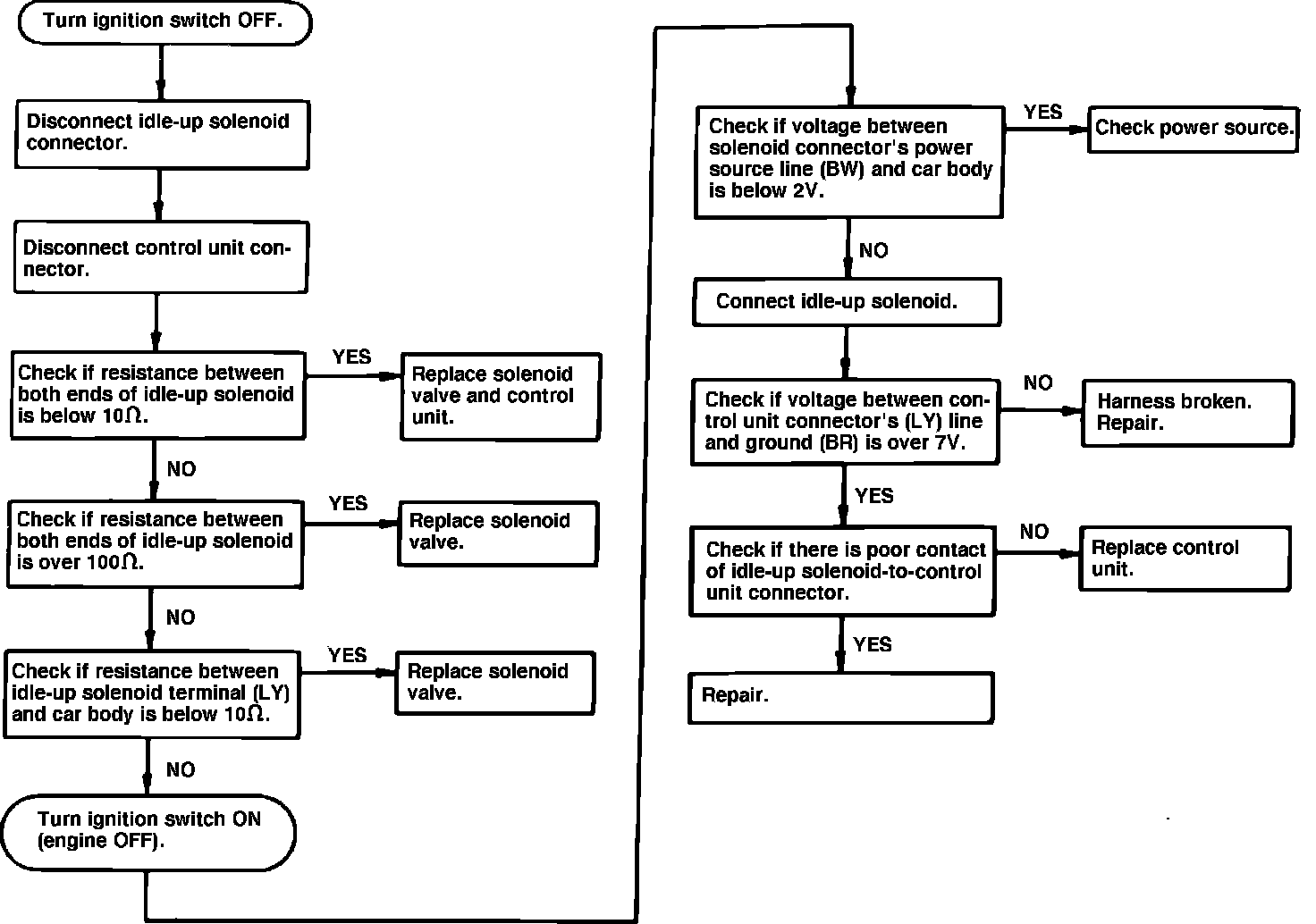

Fig. 48 Electronically controlled carburetor diagnostic chart. Idle-up solenoid (trouble code 24).:
