HAP & HAS Solenoid Valve

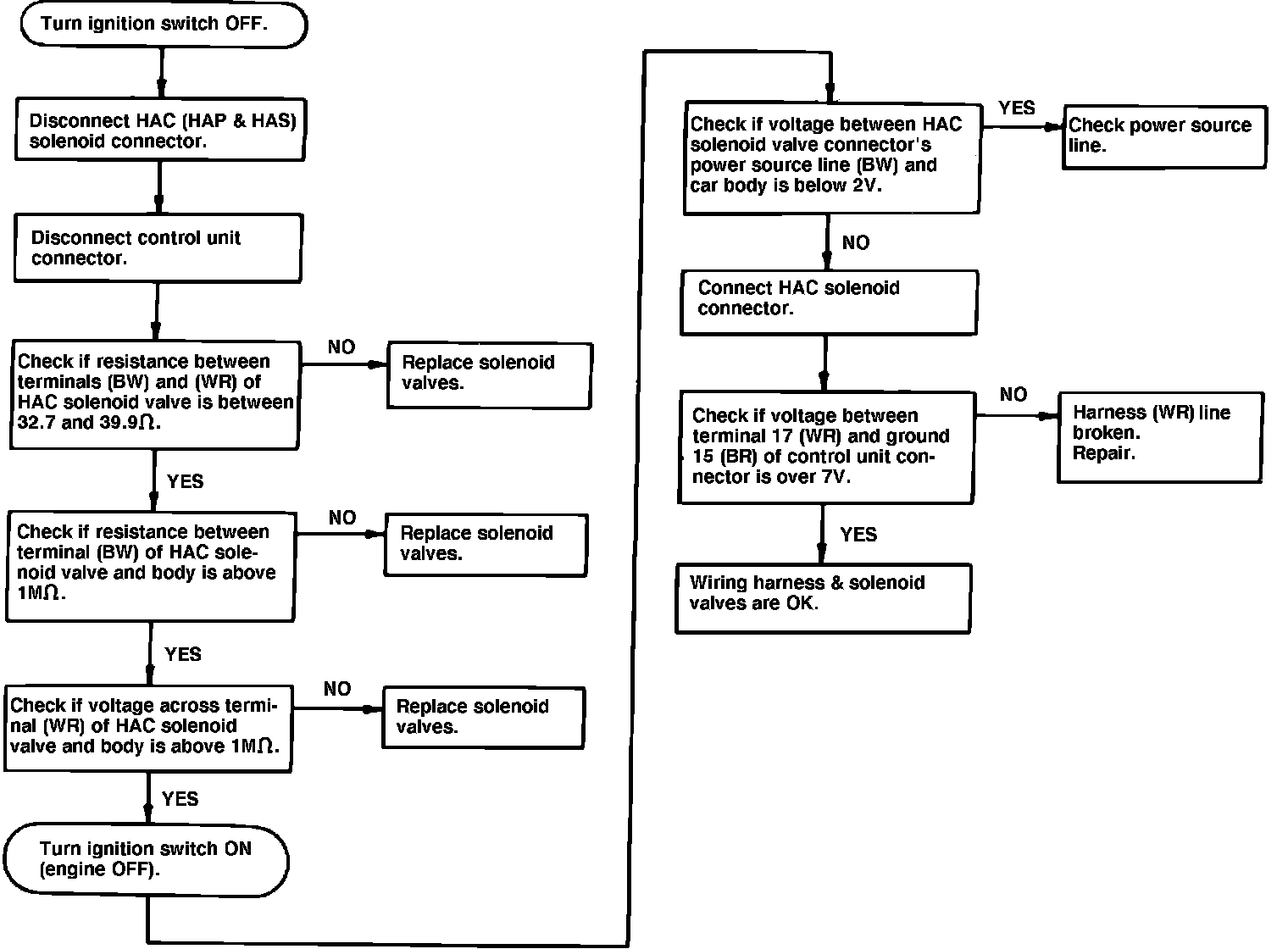

Fig. 55 Electronically controlled carburetor diagnostic chart. HAP & HAS solenoid valve.:
