EGR Valve: Service and Repair

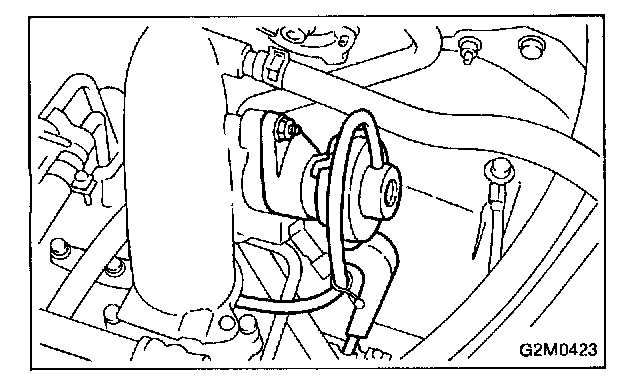

EGR ValveREMOVAL AND INSTALLATION
1. Disconnect vacuum hose form EGR valve.
2. Remove bolts which install EGR valve onto collector chamber.
3. Installation is in the reverse order of removal.
Tightening torque:
17.1 - 20.1 N.m (1.74 - 2.05 kg.m, 12.6 - 14.8 ft.lb)
