Operation CHARM
: Car repair manuals for everyone.
Home
>>
Subaru
>>
1995
>>
Impreza Sedan AWD F4-2.2L SOHC
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Heated Glass Element
>>
Diagrams
Heated Glass Element: Diagrams

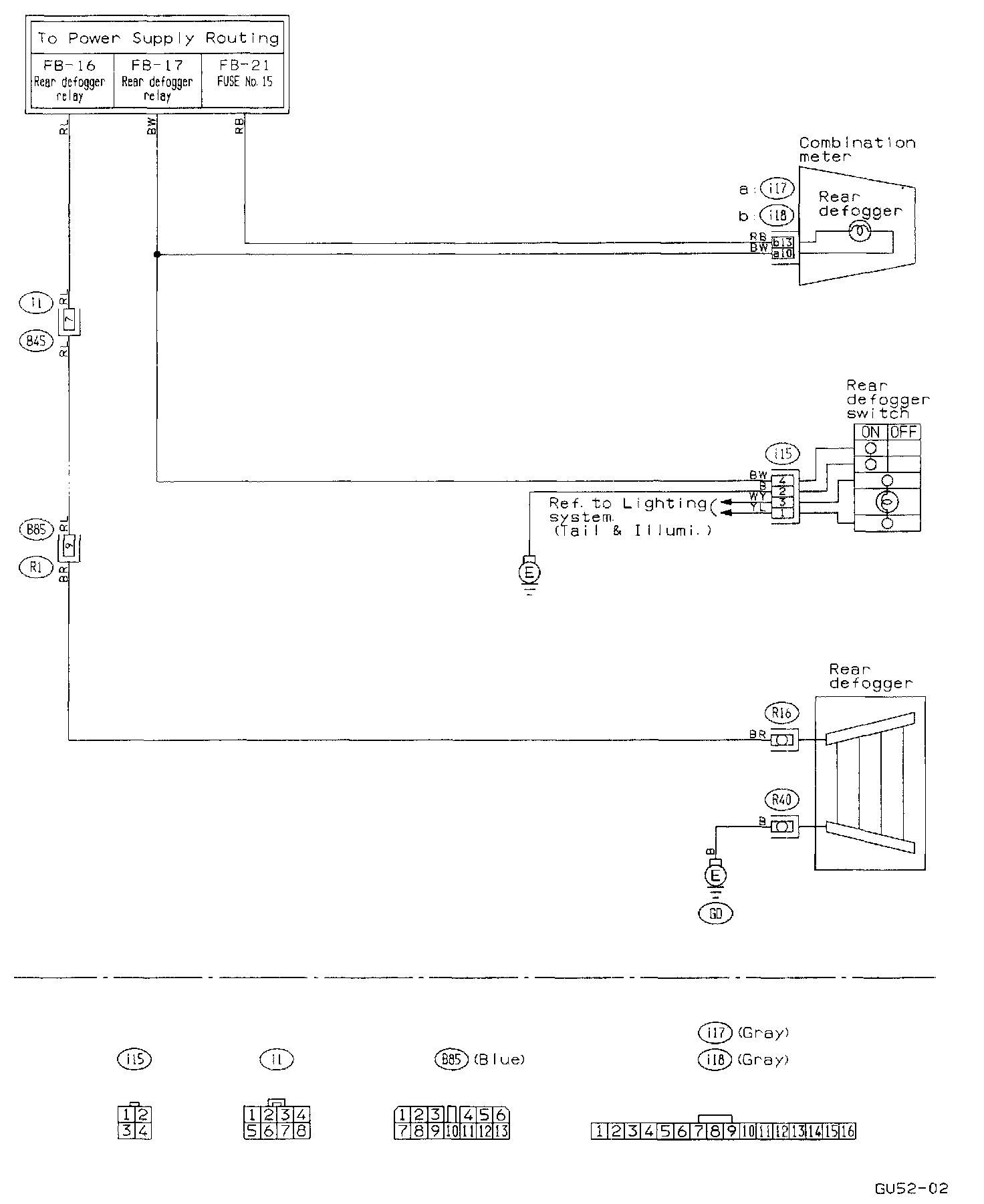

Rear Window Defogger System Circuit:
