Fuel Meter Unit

Fuel Meter Unit

REMOVAL

NOTE: Fuel meter unit is built in fuel pump assembly.




1. Release fuel pressure.

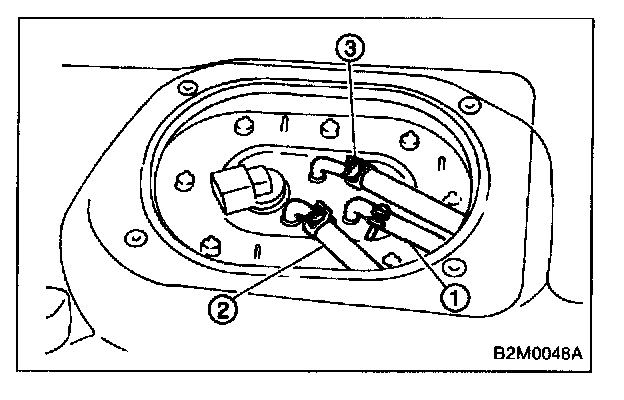

2. Disconnect fuel delivery hose (1) and return hose (2).
3. Disconnect jet pump hose (3) (AWD model)




4. Remove nuts which install fuel pump assembly onto fuel tank.

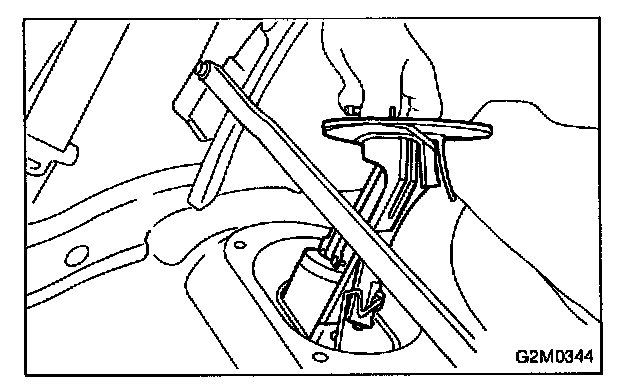

5. Take off fuel pump assembly.

INSTALLATION




Installation is in the reverse order of removal. Do the following:
1. Always use new gaskets.
2. Ensure sealing portion is free from fuel or foreign particles before installation.

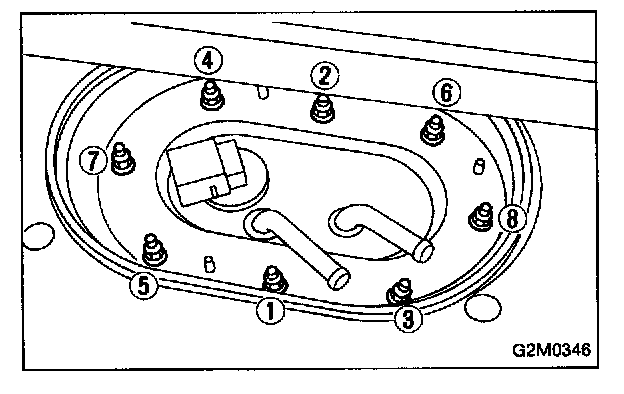

3. Tighten nuts in numerical sequence shown in Figure to specified torque.

Tightening torque:
4.4 ± 1.5 N.m (0.45 ± 0.15 kg-m, 3.3 ± 1.1 ft-lb)
