Fuel Sub Meter Unit

Fuel Sub Meter Unit (AWD model only)

REMOVAL AND INSTALLATION

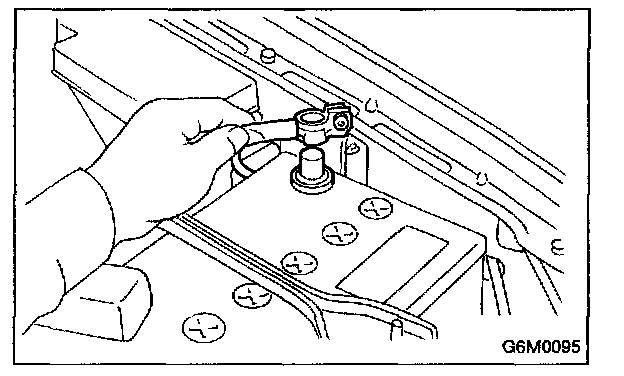

1. Disconnect battery ground cable.




2. Remove rear seat.

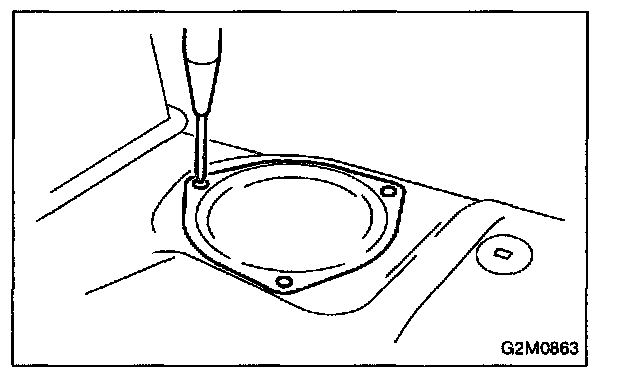

3. Remove service hole cover.

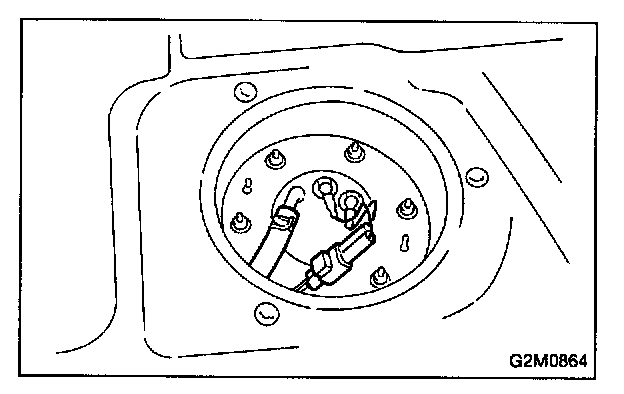

4. Disconnect connector from fuel sub meter.
5. Disconnect jet pump hose.

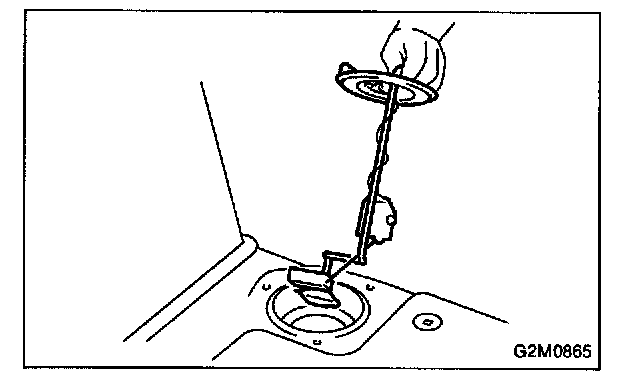

6. Remove fuel sub meter unit.




7. Installation is in the reverse order of removal procedure.

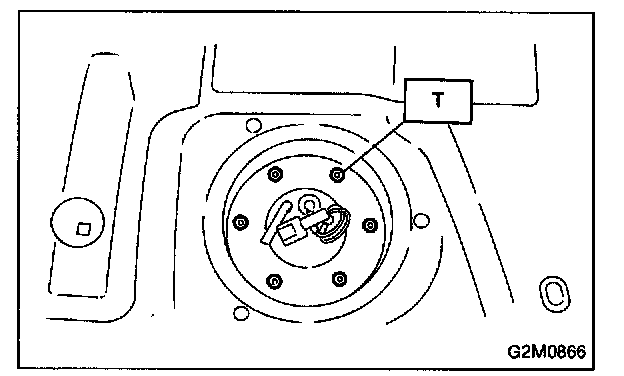

Tightening torque:
T : 3 - 6 N.m (0.3 - 0.6 kg-m, 2.2 - 4.3 ft-lb)
