Fuel Cut Valve

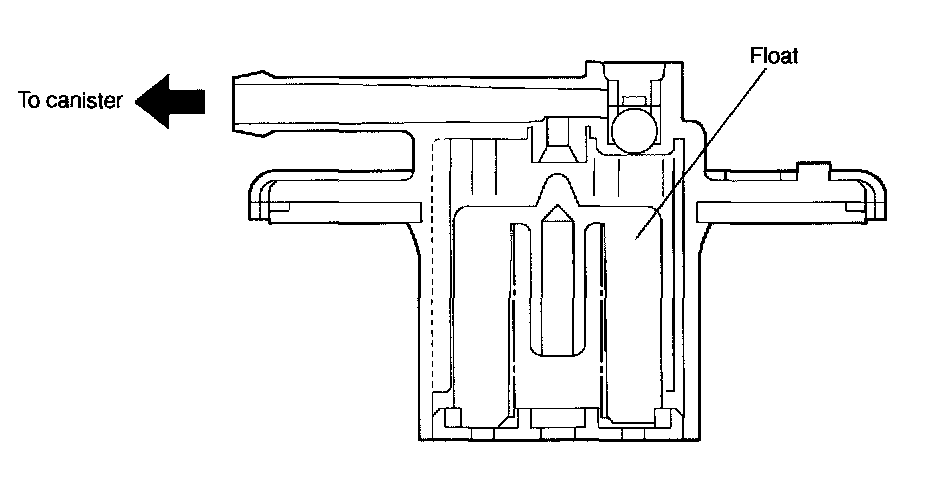

The
fuel cut valve
is built onto the evaporation pipe of the fuel tank cap. The rising level of the fuel from the
fuel tank
causes the float to move up and close the cap hole so that no fuel can enter during evaporation line.
