Rollover Valve: Service and Repair

REMOVAL AND INSTALLATION

1. Lift-up the vehicle.

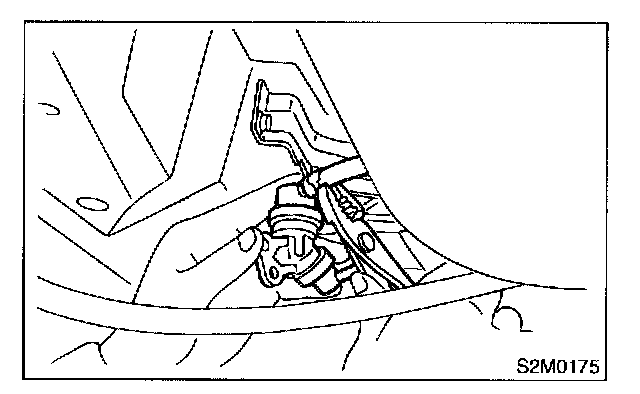

2. Remove roll over valve from bracket.




3. Disconnect hoses from roll over valve, and remove it from bracket.




4. Install in the reverse order of removal.

CAUTION:

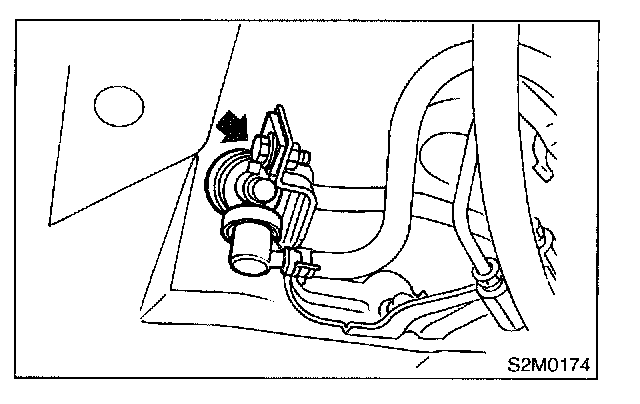

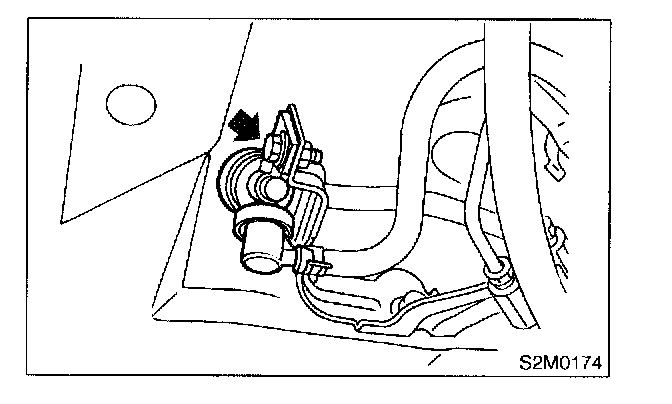

- Do not install top side of valve down.
- Before installing bracket on body, securely fit concave part of bracket to hole in body.
