Removal and Installation

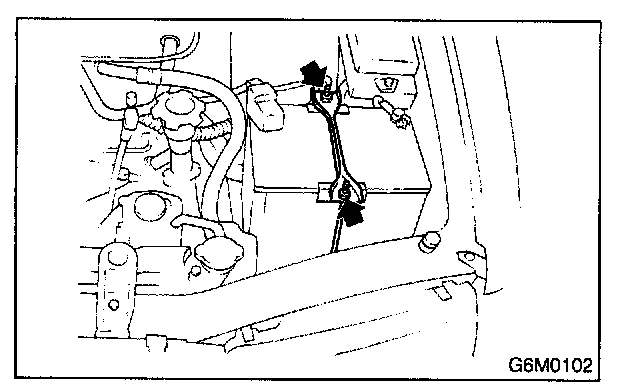

REMOVAL




1. Disconnect the positive (+) terminal after disconnecting the negative (-) terminal of battery.
2. Remove flange nuts from battery rods and take off battery holder.
3. Remove battery.

INSTALLATION
Install in the reverse order of removal.

Tightening torque: 3.4 N.m 0.35 kgf-m, 2.5 ft-lb.

NOTE:
- Clean battery cable terminals and apply grease to retard the formation of corrosion.
- Connect the positive (+) terminal of battery and then the negative (-)terminal of the battery.
