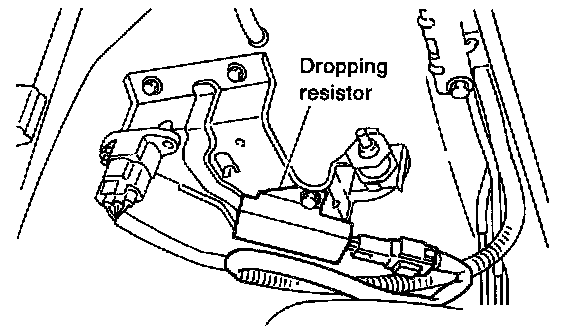

Dropping Resistor: Service and Repair

A: REMOVAL

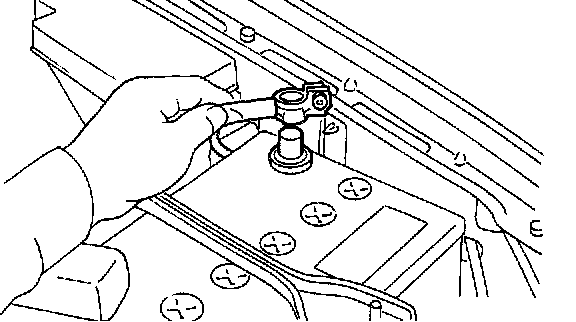

1. Disconnect battery ground terminal.
2. Remove air intake duct.
3. Disconnect connector from dropping resistor.

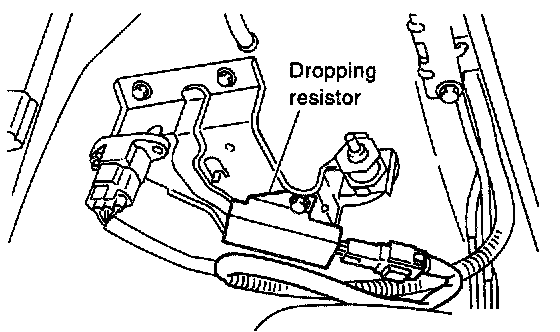

4. Remove dropping resistor from bracket.

B: INSTALLATION





Install in the reverse order of removal.
Tightening torque: 6.4 Nm (0.65 kgf-m, 4.7 ft. lbs.)
