Console: Service and Repair

CONSOLE BOX

REMOVAL

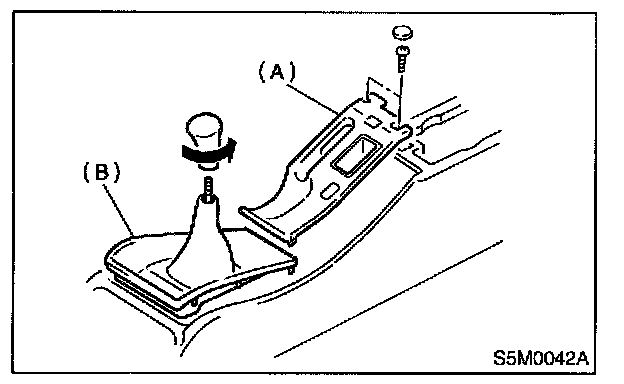

1. Remove shift knob (MT model).
2. Remove console cover (A) and front cover (B).

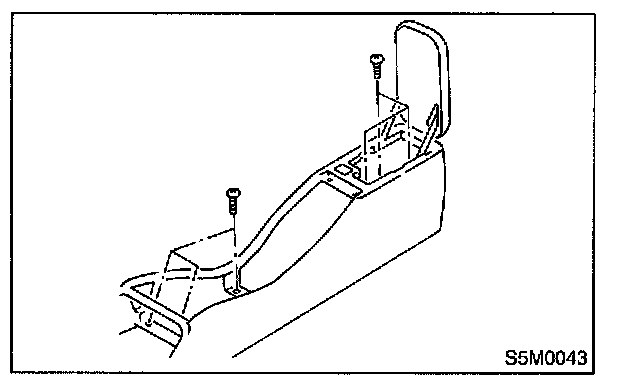

3. Remove screw and then detach console box.






INSTALLATION

Install in the reverse order of removal.
