Wiper Motor Linkage: Service and Repair

Front Wiper Motor and Linkage

REMOVAL

1. Detach weatherstrip and cowl panel.

NOTE: Apply silicone oil or soap water to both sides of cowl net to facilitate removal.

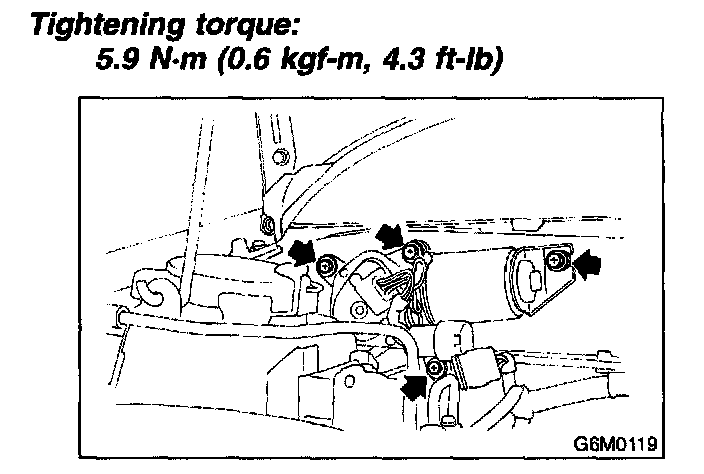

2. Disconnect electric connector, and remove motor attaching bolts.

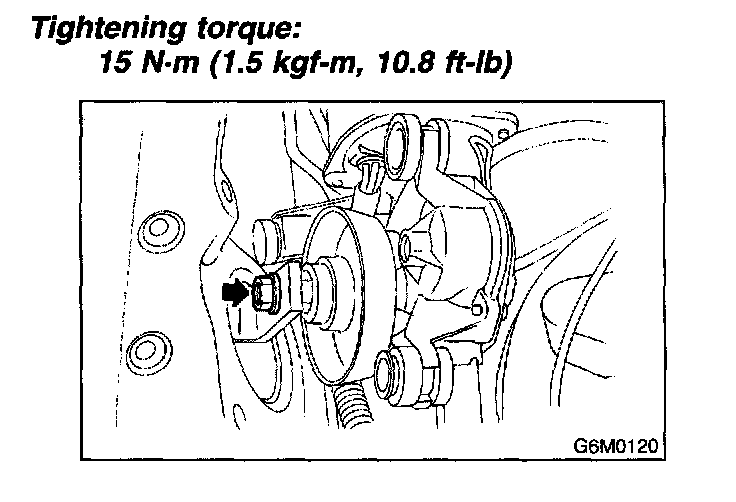

3. Remove nut securing motor link on the back side of motor.




4. Remove nuts which secure sleeve unit.

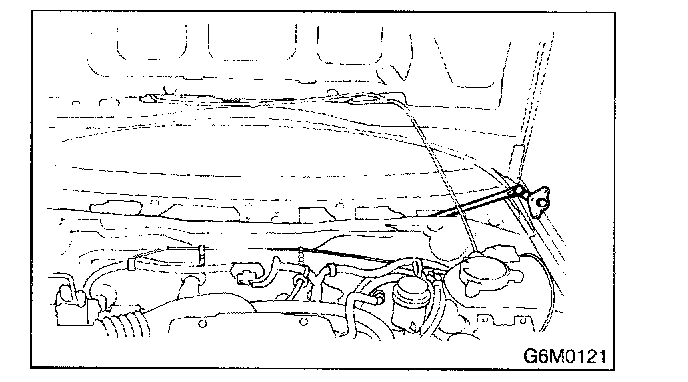

5. Remove wiper link from service hole in front panel.

INSTALLATION
Install in the reverse order of removal.
