Oil Cooler: Service and Repair

REMOVAL
1) Lift-up the vehicle.
2) Remove under cover.

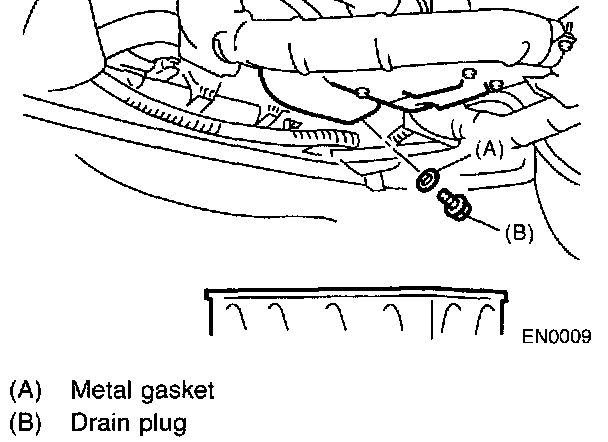

3) Drain engine oil. Set container under the vehicle, and remove drain plug from oil pan.
4) Drain coolant.





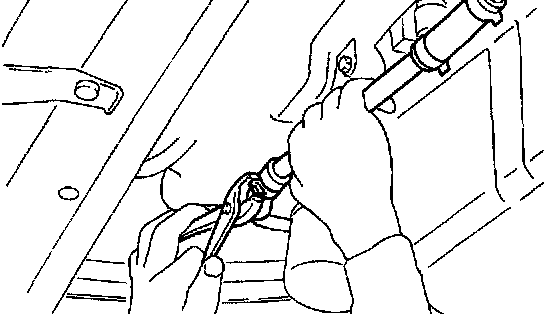

5) Remove water by-pass pipe between oil cooler and water pump.
6) Remove engine oil filter.

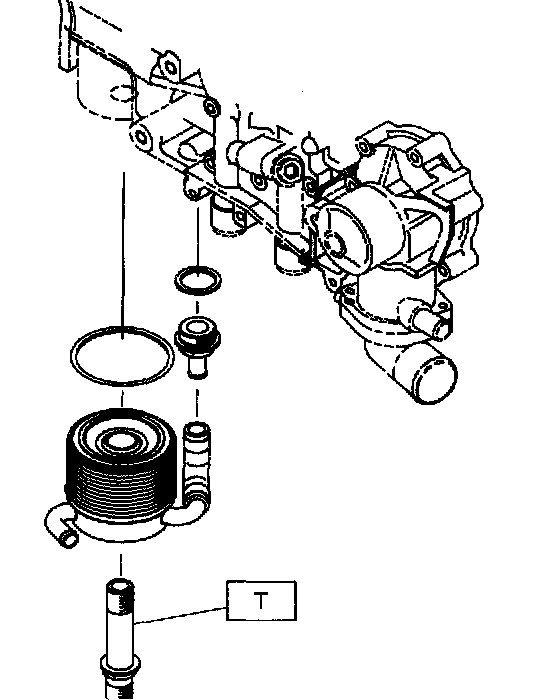

7) Remove connector and remove oil cooler.

INSTALLATION





Install in the reverse order of removal.
Tightening torque: T: 55 Nm (5.6 kgf-m, 40.5 ft. lbs.)

NOTE: Always use a new O-ring.
