License Plate Bulb: Service and Repair



License Plate Light / REMOVAL
1. Disconnect ground cable from battery.

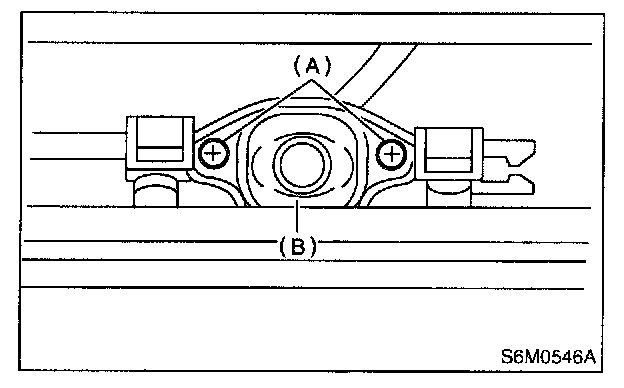

2. Remove license plate light mounting screw (A) and then remove the lens (B).
3. Remove the bulb.


INSTALLATION
Install in the reverse order of removal.
